ST141R-TEKDCQ (1983)

Toyota Corona Fr

Production Apr 1983 - Dec 1986

Engine 2SC

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8304-8612)2SC

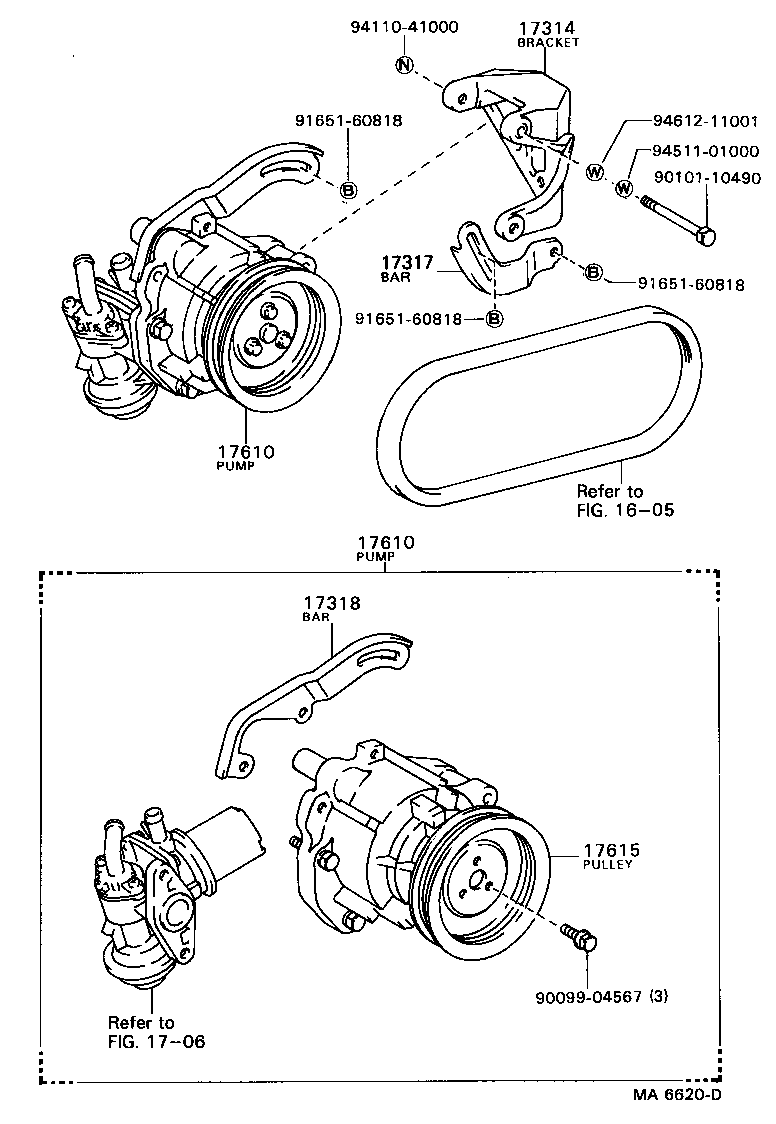

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
17314 - BRACKET, AIR PUMP
17314-74010	2SC..ST141	04/1983 - 12/1986	1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-74010	2SC..ST141	04/1983 - 12/1986	1
17318 - BAR, AIR PUMP ADJUSTING, NO.2
17318-74010	2SC..ST141	04/1983 - 12/1986	1
17610 - PUMP ASSY, AIR
17600-74010	2SC..ST141	04/1983 - 12/1986	1
17610 - PUMP ASSY, AIR
17600-74010	2SC..ST141	04/1983 - 12/1986	1
17615 - PULLEY(FOR AIR PUMP)
17615-74010	2SC..ST141	04/1983 - 12/1986	1
Common parts
90099-04567
90101-10490
91651-60818
94110-41000
94511-01000
94612-11001
Linked diagrams
1605
1706
