ST141R-TEHDCQ (1983)
Toyota Corona Fr
Production
Apr 1983
-
Dec 1986
Engine
2SC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

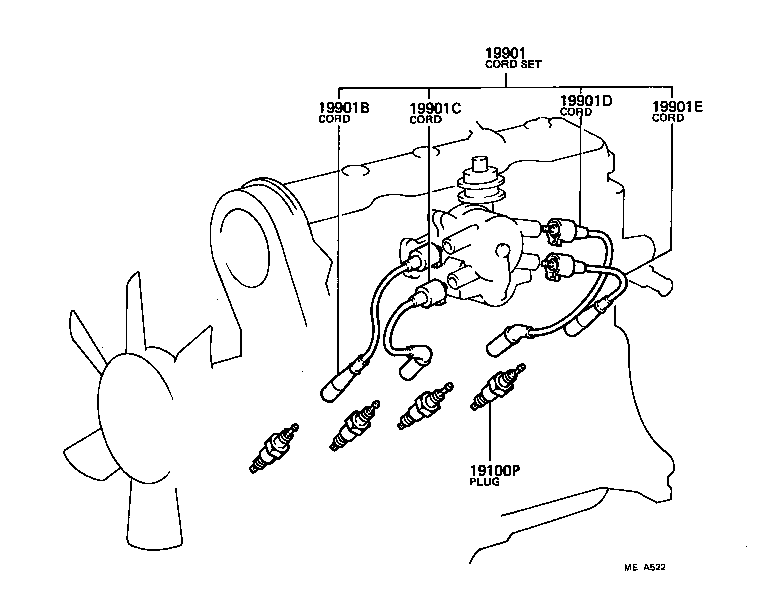

(8304-8508)2SC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01091 |
2SC..ST141 W16EXR-U11,W16EXR-U11 |
4 | ||
| 90919-01064 |
2SC..ST141 W16EXR-U,W16EXR-U |
4 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21376 |
2S..ST141 |
1 | ||
| 90919-22113 |
2SC..ST141 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12392 |
2SC..ST141..ATM |
1 | ||
| 90919-12524 |
2S..ST141 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12525 |
2S..ST141 |
1 | ||
| 90919-12392 |
2SC..ST141 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12394 |
2SC..ST141..ATM |
1 | ||
| 90919-12525 |
2S..ST141 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12524 |
2S..ST141 |
1 | ||
| 90919-12394 |
2SC..ST141 |
1 | ||
(8508-8612)2SC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01091 |
2SC..ST141 W16EXR-U11,W16EXR-U11 |
4 | ||
| 90919-01064 |
2SC..ST141 W16EXR-U,W16EXR-U |
4 | ||
| Linked diagrams | ||||
| 1902 | ||||

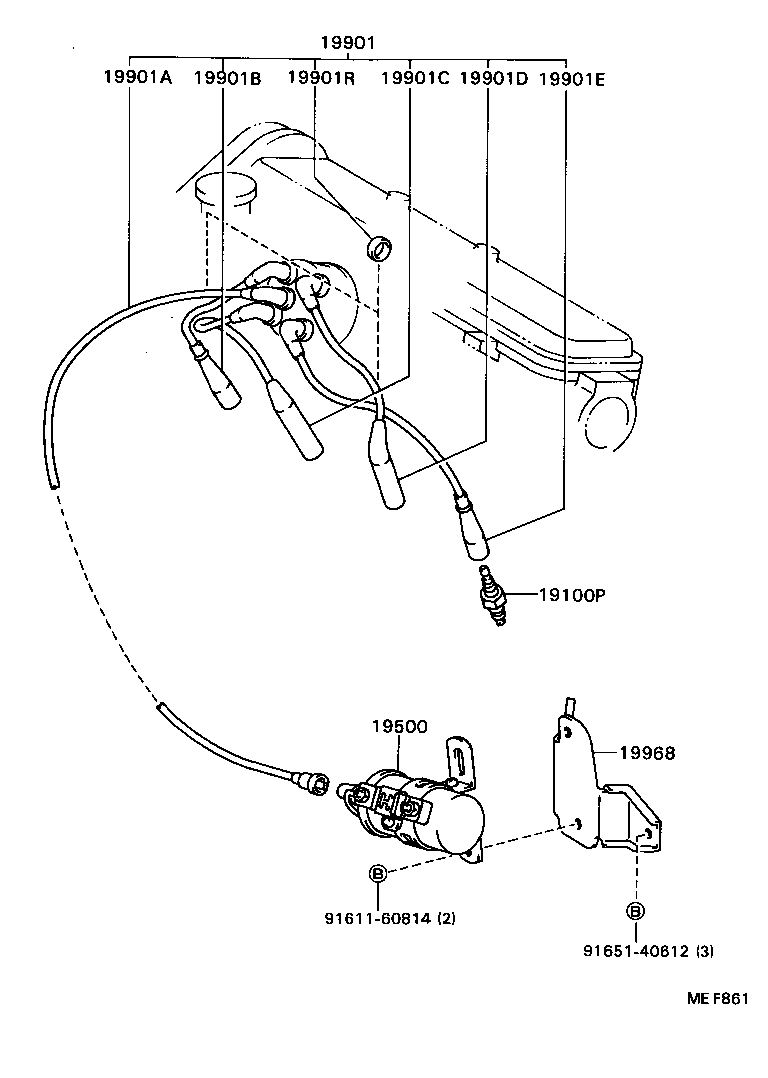

(8508-8612)2S
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01091 |
2SC..ST141 W16EXR-U11,W16EXR-U11 |
4 | ||
| 90919-01064 |
2SC..ST141 W16EXR-U,W16EXR-U |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02159 |
2S..ST141 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21376 |
2S..ST141 |
1 | ||
| 90919-22113 |
2SC..ST141 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13227 |
2S..ST141 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12392 |
2SC..ST141..ATM |
1 | ||
| 90919-12524 |
2S..ST141 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-12525 |
2S..ST141 |
1 | ||
| 90919-12392 |
2SC..ST141 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12394 |
2SC..ST141..ATM |
1 | ||
| 90919-12525 |
2S..ST141 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12524 |
2S..ST141 |
1 | ||
| 90919-12394 |
2SC..ST141 |
1 | ||
| 19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD | ||||
| 90202-11067 |
2S..ST141 |
2 | ||
| 19968 - BRACKET, IGNITION COIL | ||||
| 19968-74010 |
2S..ST141 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91651-40612 | ||||
