ST141LG-TWMDS (1985)

Toyota Corona Fr

Production Aug 1985 - Dec 1986
Engine 2S
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

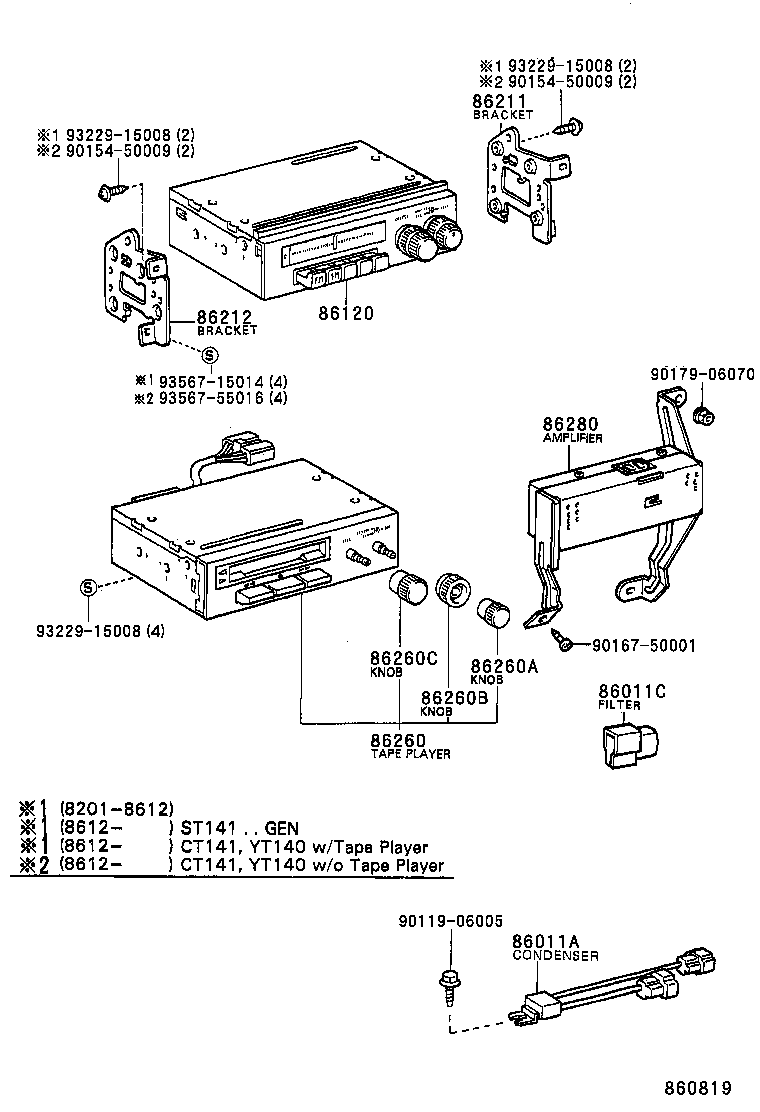

ILLUST NO. 1 OF 2(8201-9208)

Click highlighted areas on diagram

diagram 86011A 86011C 86120 86211 86212 86260 86260A 86260B 86260C 86280 9011906005 9015450009 9015450009 9016750001 9017906070 9322915008 9322915008 9322915008 9356715014 9356755016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04036

RT14#,ST141,TT14#

 1
86011C - FILTER, NOISE
90980-05073

CT140,RT14#,ST141,TT14#

 1
86211 - BRACKET, RADIO, NO.1
86211-20110

CT14#,RT14#,ST141,TT14#

 1
86212 - BRACKET, RADIO, NO.2
86212-20100

CT14#,RT14#,ST141,TT14#

 1
Common parts
90119-06005
90154-50009
90167-50001
90179-06070
93229-15008
93567-15014
93567-55016

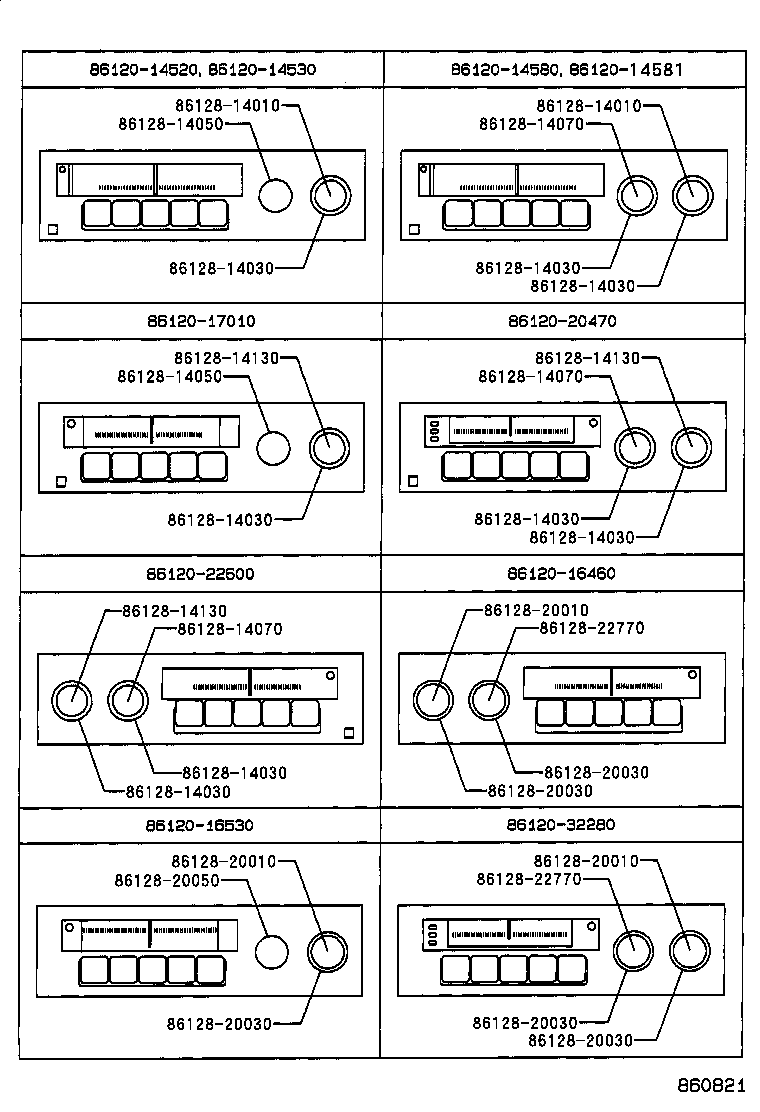

ILLUST NO. 2 OF 2(8201-9208)

Click highlighted areas on diagram

diagram 8612814010 8612814010 8612814030 8612814030 8612814030 8612814030 8612814030 8612814030 8612814030 8612814030 8612814050 8612814050 8612814070 8612814070 8612814070 8612814130 8612814130 8612814130 8612820010 8612820010 8612820010 8612820030 8612820030 8612820030 8612820030 8612820030 8612820050 8612822770 8612822770
Part # Description Qty Price
Common parts
86128-14010
86128-14030
86128-14050
86128-14070
86128-14130
86128-20010
86128-20030
86128-20050
86128-22770
