ST141L-TEPDS (1985)

Toyota Corona Fr

Production Aug 1985 - Dec 1986
Engine 2S
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )CS,CSI,CSX,CXI,DLX

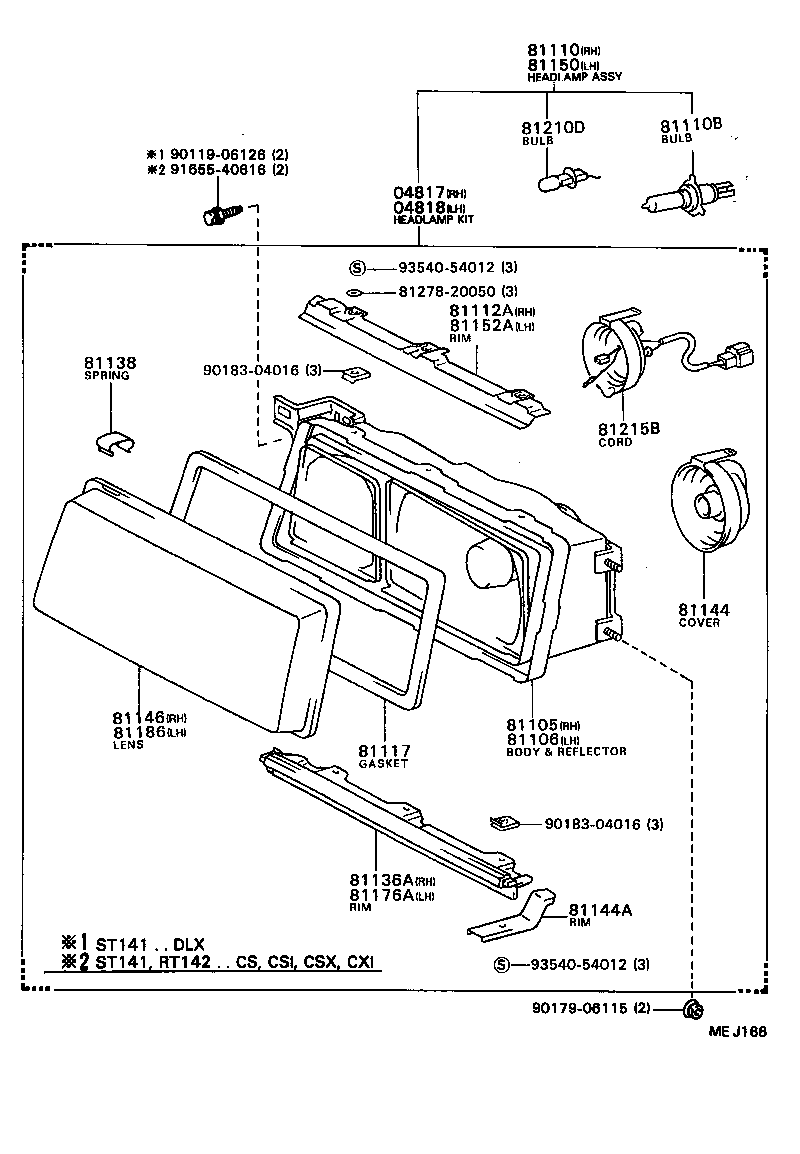

Click highlighted areas on diagram

diagram 04817 04818 81105 81106 81110 81110B 81112A 81117 81136A 81138 81144 81144A 81146 81150 81152A 81176A 81186 81210D 81215B 8127820050 9011906126 9017906115 9018304016 9018304016 9165540616 9354054012 9354054012
Part # Description Qty Price
04817 - HEADLAMP KIT, W/O SEALED BEAM, RH
04817-20060

ST141..CS,DLX

HALOGEN;FOG LAMP,YELLOW

 1
04818 - HEADLAMP KIT, W/O SEALED BEAM, LH
04818-20060

ST141..CS,DLX

HALOGEN;FOG LAMP,YELLOW

 1
81110 - HEADLAMP ASSY, RH
81110-20661

ST141..CS,DLX

HALOGEN,WHITE;FOG LAMP,YELLOW

 1
81110-80302

ST141..S

HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CT140,RT14#,ST141,TT14#

12V 60/55W,*HAL *WH,12V 60/55W,WHITE,HALOGEN

 2
81112A - RIM, HEADLAMP, RH
81112-20600

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81112-20601

ST141..S

 1
81136-20620

ST141..CS,DLX

 1
81117 - PACKING, HEADLAMP HOUSING
81147-30490

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 2
81147-30490

ST141..S

 2
81136A - RIM, HEADLAMP, RH
81137-20620

ST141..CS,DLX

 1
81138 - SPRING, HEADLAMP
81138-20550

CT140,RT14#,ST141,TT14#

 16
81144 - COVER, HEADLAMP, NO.1
81139-30490

CT140,RT14#,ST141,TT14#

 2
81150 - HEADLAMP ASSY, LH
81150-80299

ST141..S

HALOGEN

 1
81150-20621

ST141..CS,DLX

HALOGEN,WHITE;FOG LAMP,YELLOW

 1
81152A - RIM, HEADLAMP, LH
81152-20560

CT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX

 1
81176-20580

ST141..CS,DLX

 1
81152-20561

ST141..S

 1
81176A - RIM, HEADLAMP, LH
81177-20580

ST141..CS,DLX

 1
Common parts
81278-20050
90119-06126
90179-06115
90183-04016
91655-40616
93540-54012
