ST141L-TEMDS (1985)

Toyota Corona Fr

Production Aug 1985 - Dec 1986
Engine 2S
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8612)2S

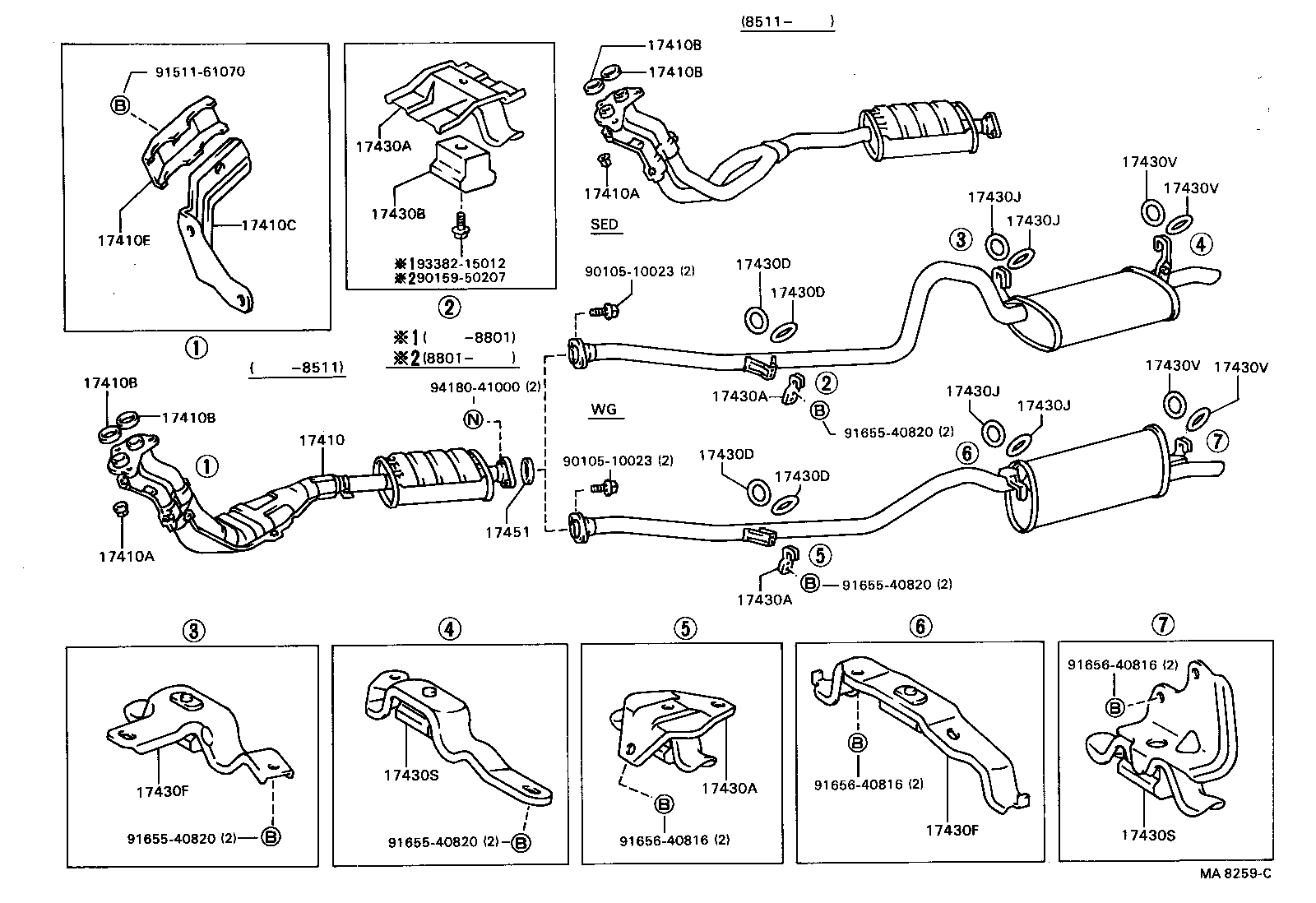

Click highlighted areas on diagram

diagram 17410 17410A 17410A 17410B 17410B 17410B 17410B 17410C 17410E 17430A 17430A 17430A 17430A 17430B 17430D 17430D 17430D 17430D 17430F 17430F 17430J 17430J 17430J 17430J 17430S 17430S 17430V 17430V 17430V 17430V 17451 9010510023 9010510023 9015950207 9151161070 9165540820 9165540820 9165540820 9165540820 9165640816 9165640816 9165640816 9338215012 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74020

2S..ST141

 1
17410B - GASKET, EXHAUST PIPE
90917-06001

22REC,2S#,2T,3T,2Y..RT142,ST141,TT14#,YT140

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22REC,2S#,2T,3T,2Y..RT142,ST141,TT14#,YT140

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22REC,2S#,2T,3T,2Y..RT142,ST141,TT14#,YT140

 2
17410B - GASKET, EXHAUST PIPE
90917-06001

22REC,2S#,2T,3T,2Y..RT142,ST141,TT14#,YT140

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64010

2S..ST141

 1
17571-74040

2S..ST141

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-26050

2S..ST141..SED

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-26050

2S..ST141..SED

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26100

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140..SED

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26100

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140..SED

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17451 - GASKET, EXHAUST PIPE
90917-06012

2S..ST141

 1
Common parts
90105-10023
90159-50207
91511-61070
91655-40820
91656-40816
93382-15012
94180-41000
