RT142R-TEPNEQ (1984)

Toyota Corona Fr

Production Aug 1984 - Dec 1986
Engine 22REC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8612)CXI

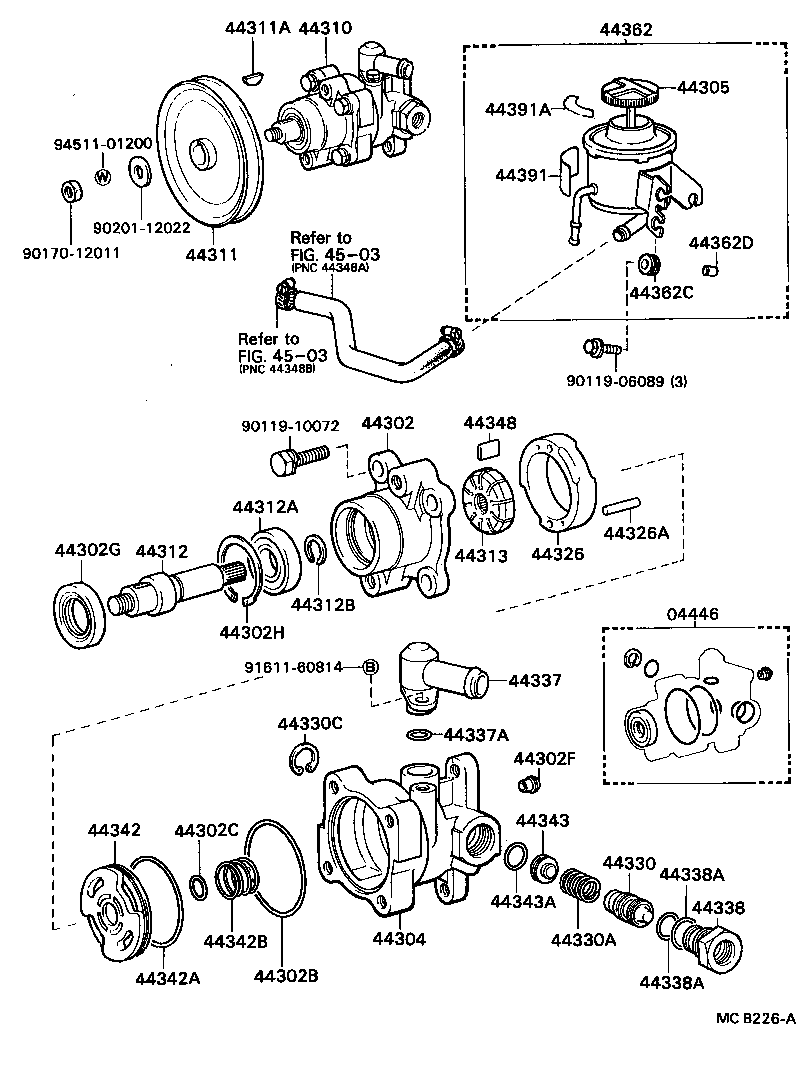

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302F 44302G 44302H 44304 44305 44310 44311 44311A 44312 44312A 44312B 44313 44326 44326A 44330 44330A 44330C 44337 44337A 44338 44338A 44338A 44342 44342A 44342B 44343 44343A 44348 44362 44362C 44362D 44391 44391A 4503 4503 9011906089 9011910072 9017012011 9020112022 9161160814 9451101200
Part # Description Qty Price
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-12010

RT142..CXI

 1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-05035

RT142..CXI

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-35030

RT142..CXI

 1
44310 - PUMP ASSY, VANE
44320-14161

RT142..CXI

 1
44311 - PULLEY, VANE PUMP
44311-20010

RT142..CXI

 1
44337 - UNION, POWER STEERING SUCTION PORT
90404-16016

RT142..CXI

 1
44338 - UNION, PRESSURE PORT
44308-14041

RT142,ST141..CSX,CXI

 1
44362 - RESERVOIR, OIL(FOR VANE PUMP)
44360-14020

RT142..CXI

 1
Common parts
90119-06089
90119-10072
90170-12011
90201-12022
91611-60814
94511-01200
Linked diagrams
4503
