RT140LG-TWKRSM (1982)
Toyota Corona Fr

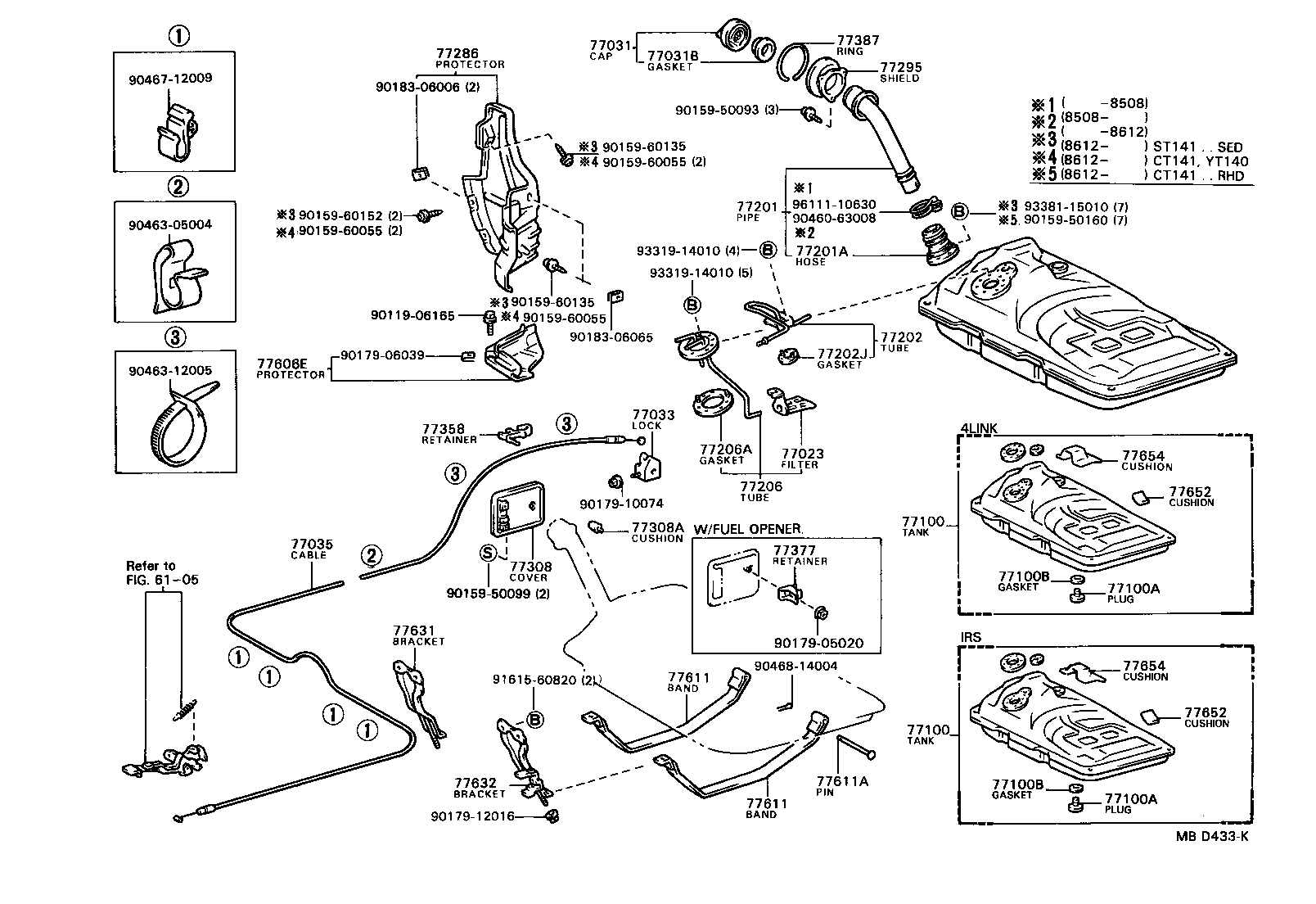

ILLUST NO. 1 OF 2(8201-8508)CT140,RT14#,TT14#..SED ; (8201- )ST141..SED ; (8508- )ST141..SED ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RT140,ST141,TT14# |
1 | ||
| 77023-12050 |
RT140,ST141,TT14# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77316-12050 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19125 |
RT140,TT14#..WG |
1 | ||
| 77001-19125 |
RT140,TT14#..WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19125 |
RT140,TT14#..WG |
1 | ||
| 77001-19125 |
RT140,TT14#..WG |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
CT140,RT140,TT14#..WG |
1 | ||
| 90105-12018 |
CT140,RT140,TT14#..WG |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
CT140,RT140,TT14#..WG |
1 | ||
| 90105-12018 |
CT140,RT140,TT14#..WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CT140,RT140,TT14#..WG |
1 | ||
| 90430-12245 |
CT140,RT140,TT14#..WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CT140,RT140,TT14#..WG |
1 | ||
| 90430-12245 |
CT140,RT140,TT14#..WG |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91258 |
CT140,RT140,TT14#..WG |
1 | ||
| 77201-91258 |
CT140,RT140,TT14#..WG |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-12010 |
CT140,RT140,TT14#..WG |
1 | ||
| 77291-12010 |
CT140,RT140,TT14#..WG |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91257 |
CT140,RT140,TT14#..WG |
1 | ||
| 77350-91257 |
CT140,RT140,TT14#..WG |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
CT140,RT140,TT14#..WG |
2 | ||
| 90541-08003 |
CT140,RT140,TT14#..WG |
2 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77360-24010 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77360-24010 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CT140,RT140,TT14#..WG |
4 | ||
| 77652-91602 |
CT140,RT140,TT14#..WG |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CT140,RT140,TT14#..WG |
4 | ||
| 77652-91602 |
CT140,RT140,TT14#..WG |
4 | ||
| Common parts | ||||
| 90119-06165 | ||||
| 90159-50093 | ||||
| 90159-50099 | ||||
| 90159-50160 | ||||
| 90159-60055 | ||||
| 90159-60135 | ||||
| 90159-60152 | ||||
| 90179-05020 | ||||
| 90179-06039 | ||||
| 90179-10074 | ||||
| 90179-12016 | ||||
| 90183-06006 | ||||
| 90183-06065 | ||||
| 90460-63008 | ||||
| 90463-05004 | ||||
| 90463-12005 | ||||
| 90467-12009 | ||||
| 90468-14004 | ||||
| 91615-60820 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 96111-10630 | ||||
| Linked diagrams | ||||
| 6105 | ||||

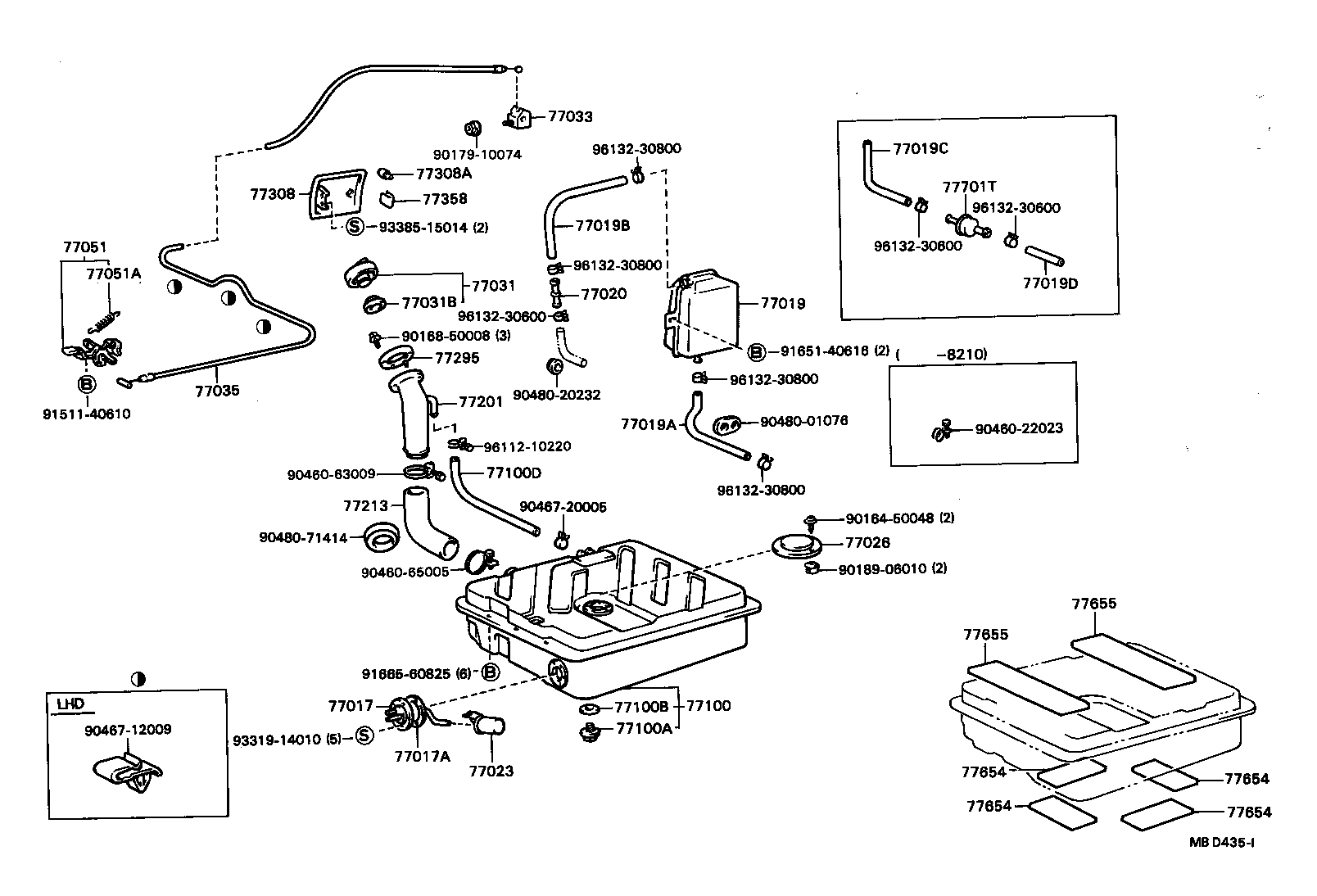

ILLUST NO. 1 OF 2(8201-8508)CT140,RT140,TT14#..WG ; (8508- )WG..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-91260 |
TT140..WG..RHD;RT140,TT141..WG W/FUEL WARNING |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 83361-20030 |
CT140,RT140,TT14#..WG |
1 | ||
| 77019 - TANK SUB-ASSY, FUEL EXPANSION | ||||
| 77191-21010 |
CT140,RT140,TT14#..WG |
1 | ||
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 95332-08060 |
CT140,RT140,TT14#..WG *H,L=480,ID=7.6 |
1 | ||
| 77019B - HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK) | ||||
| 95332-08060 |
CT140,RT140,TT14#..WG *H,L=460,ID=7.6 |
1 | ||
| 77019C - HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK) | ||||
| 95332-06030 |
CT140,RT140,TT14#..WG *H,L=260 |
1 | ||
| 77019D - HOSE, FUEL, NO.4(FOR FUEL EXPANSION TANK) | ||||
| 95332-06010 |
CT140,RT140,TT14#..WG *H,L=100 |
1 | ||
| 77020 - WAY, 2(FOR FUEL EXPANSION TANK) | ||||
| 90412-08001 |
CT140,RT140,TT14#..WG |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RT140,ST141,TT14# |
1 | ||
| 77026 - COVER SUB-ASSY, FUEL SENDER GAGE | ||||
| 77029-91600 |
CT140,RT140,TT14#..WG |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19125 |
RT140,TT14#..WG |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
CT140,RT140,TT14#..WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CT140,RT140,TT14#..WG |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22012 |
CT140,RT140,TT14#..WG |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91258 |
CT140,RT140,TT14#..WG |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91C01 |
CT140,RT140,TT14#..WG |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-12010 |
CT140,RT140,TT14#..WG |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91257 |
CT140,RT140,TT14#..WG |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
CT140,RT140,TT14#..WG |
2 | ||
| 77358 - RETAINER, FUEL INLET CUSHION | ||||
| 77360-24010 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CT140,RT140,TT14#..WG |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CT140,RT140,TT14#..WG |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CT140,RT140,TT14#..WG |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91602 |
CT140,RT140,TT14#..WG |
4 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-91602 |
CT140,RT140,TT14#..WG |
3 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-91602 |
CT140,RT140,TT14#..WG |
3 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
CT140,RT140,TT14# |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90168-50008 | ||||
| 90179-10074 | ||||
| 90189-06010 | ||||
| 90460-22023 | ||||
| 90460-63009 | ||||
| 90460-65005 | ||||
| 90467-12009 | ||||
| 90467-20005 | ||||
| 90480-01076 | ||||
| 90480-20232 | ||||
| 90480-71414 | ||||
| 91511-40610 | ||||
| 91651-40616 | ||||
| 91665-60825 | ||||
| 93319-14010 | ||||
| 93385-15014 | ||||
| 96112-10220 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||

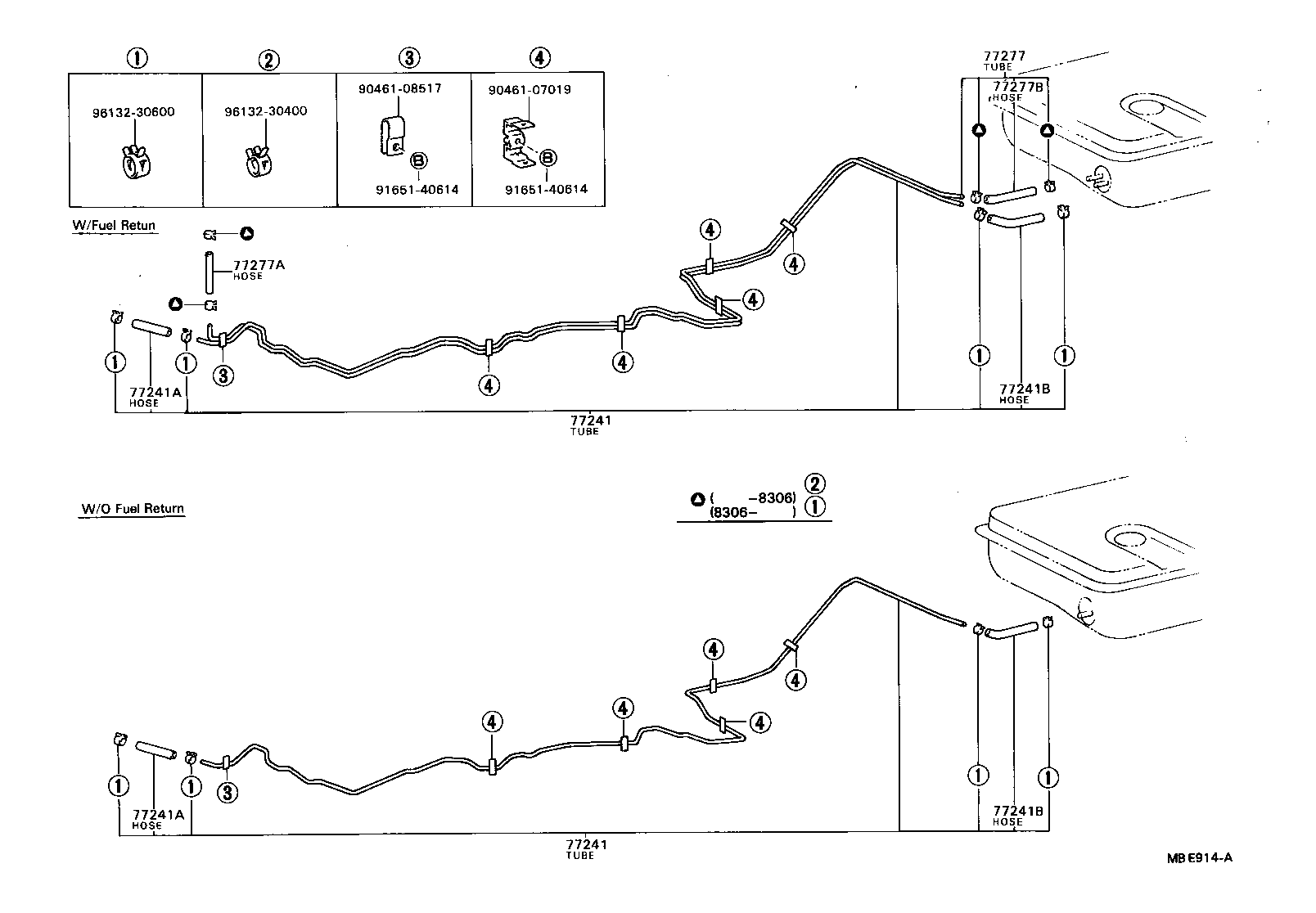

ILLUST NO. 2 OF 2(8201-8508)RT140,TT14#..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-91C01 |
RT140,TT14#..WG |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-91C01 |
RT140,TT14#..WG |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RT140,TT14# *H,L=150 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RT140,TT14# *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RT140,TT14#..WG *H,L=200 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RT140,TT14#..WG *H,L=200 |
1 | ||
| Common parts | ||||
| 90461-07019 | ||||
| 90461-08517 | ||||
| 91651-40614 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
