RT140LG-TWKRSM (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )WG

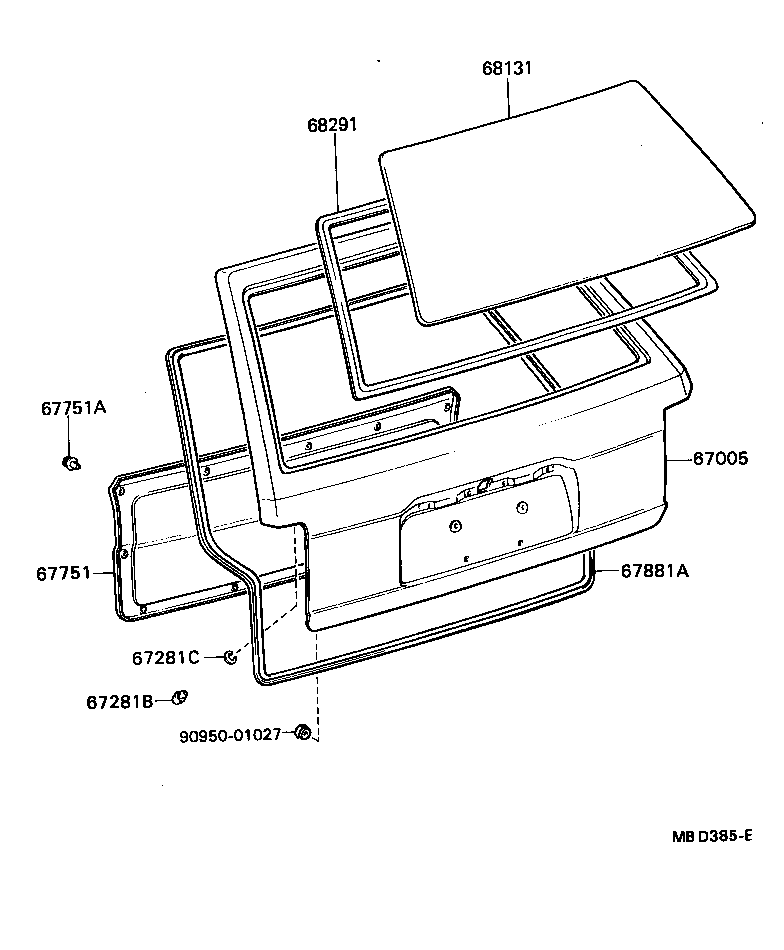

Click highlighted areas on diagram

diagram 67005 67281B 67281C 67751 67751A 67881A 68131 68291 9095001027
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-91B05

CT140,RT140,TT14#..WG

W/RR WIPER

 1
67005-91B06

CT140,RT140,TT14#..WG

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-13030

CT140,RT140,ST141,TT14#..WG

 2
67281C - PLATE, BACK DOOR LOWER STOPPER
90213-12019

CT140,RT14#,ST141,TT14#..WG

T=1.0

 2
90213-12020

CT140,RT14#,ST141,TT14#..WG

T=2.3

 1
67751 - BOARD, BACK DOOR TRIM
64780-91C0101

CT140,RT140,TT14#..WG

BLACK,BLACK

 1
64780-91C0116

CT140,RT140,TT14#..WG

SADDLE BROWN,BROWN

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0601701

CT140,RT140,ST141,TT14#..WG

BLACK,BLACK

 11
90467-0601706

CT140,RT140,TT14#..WG

SADDLE BROWN,BROWN

 11
67881A - WEATHERSTRIP, BACK DOOR
67881-91702

CT140,RT14#,ST141,TT14#..WG

 1
68131 - GLASS, BACK DOOR
68131-91C02

CT140,RT140,TT14#..WG

*TT,T=3.5

 1
68105-91C02

CT140,RT140,TT14#..WG

*EHTT,T=3.5,*EHTT,T=3.5

 1
68131-91C01

CT140,RT140,TT140..WG

*TEM,T=3.5,*TEM,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-91C01

CT140,RT140,TT140..WG

 1
Common parts
90950-01027
