RT140LG-TWKRSM (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

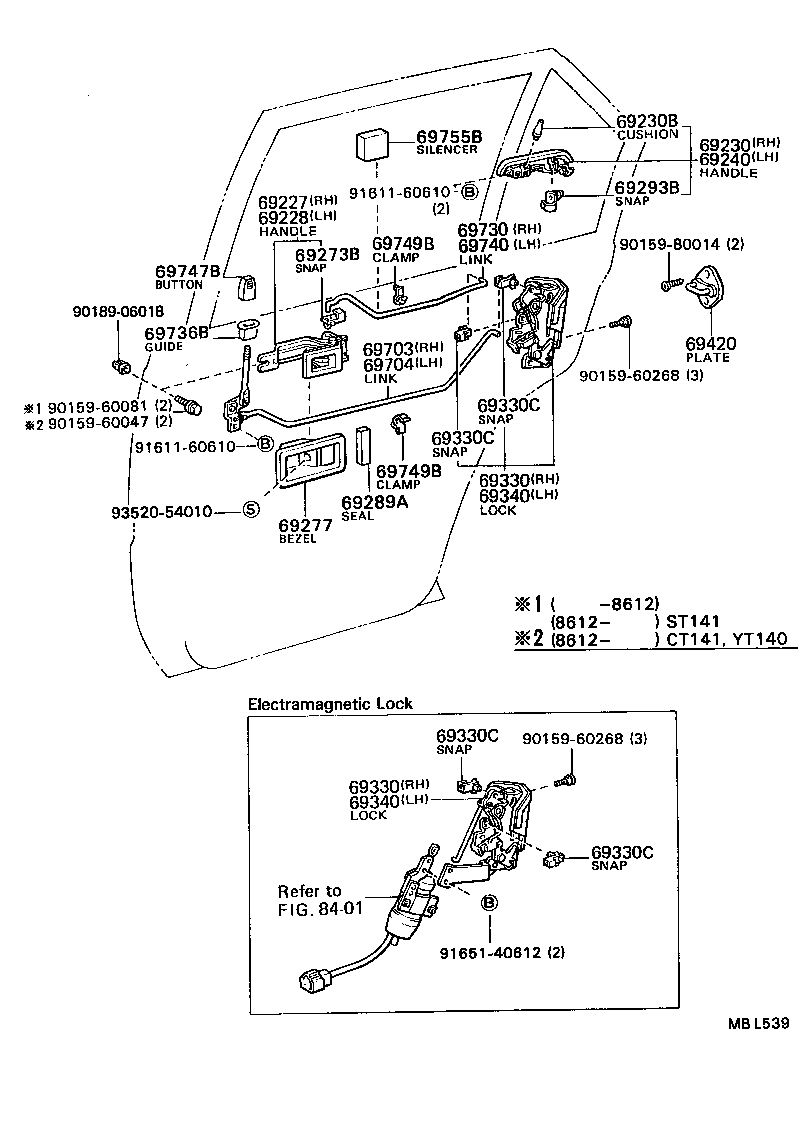

Click highlighted areas on diagram

diagram 69227 69228 69230 69230B 69240 69273B 69277 69289A 69293B 69330 69330 69330C 69330C 69330C 69330C 69340 69340 69420 69703 69704 69730 69736B 69740 69747B 69749B 69749B 69755B 8401 9015960047 9015960081 9015960268 9015960268 9015980014 9018906018 9161160610 9161160610 9165140612 9352054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69205-1404001

CT140,RT140,ST141,TT14#

BLACK,BLACK

 1
69205-1404016

CT140,RT140,ST141,TT14#

SADDLE BROWN,BROWN

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69206-1404001

CT140,RT140,ST141,TT14#

BLACK,BLACK

 1
69206-1404016

CT140,RT140,ST141,TT14#

SADDLE BROWN,BROWN

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-20070

CT14#,RT14#,ST141,TT14#

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

CT140,RT140,ST141,TT14#

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-20070

CT14#,RT14#,ST141,TT14#

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69759-24070

CT140,RT140,ST141,TT14#

LH

 1
69759-14050

CT140,RT140,ST141,TT14#

RH

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-1604001

CT140,RT14#,ST141,TT14#

BLACK,BLACK

 2
69277-1604026

CT140,RT14#,ST141,TT14#

SADDLE BROWN,BROWN

 2
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-16010

CT14#,RT14#,ST141,TT14#

LH

 1
69293-16020

CT14#,RT14#,ST141,TT14#

RH

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-20110

CT140,RT140,TT14#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-20110

CT140,RT140,TT14#

 1
69330C - SNAP(FOR REAR DOOR LOCK)
69759-24060

CT140,RT140,ST141,TT14#

RH

 2
69759-24050

CT140,RT140,ST141,TT14#

LH

 2
69330C - SNAP(FOR REAR DOOR LOCK)
69759-24060

CT140,RT140,ST141,TT14#

RH

 2
69759-24050

CT140,RT140,ST141,TT14#

LH

 2
69330C - SNAP(FOR REAR DOOR LOCK)
69759-24060

CT140,RT140,ST141,TT14#

RH

 2
69759-24050

CT140,RT140,ST141,TT14#

LH

 2
69330C - SNAP(FOR REAR DOOR LOCK)
69759-24060

CT140,RT140,ST141,TT14#

RH

 2
69759-24050

CT140,RT140,ST141,TT14#

LH

 2
69340 - LOCK ASSY, REAR DOOR, LH
69340-20110

CT140,RT140,TT14#

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-20110

CT140,RT140,TT14#

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-14050

CT140,RT140,TT14#

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-20020

CT140,RT140,ST141,TT14#

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-20020

CT140,RT140,ST141,TT14#

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-14020

CT140,RT140,ST141,TT14#

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-14020

CT140,RT140,ST141,TT14#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-30020

CT140,RT140,ST141,TT14#

 2
69749-12010

CT140,RT140,TT14#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-30020

CT140,RT140,ST141,TT14#

 2
69749-12010

CT140,RT140,TT14#

 2
Common parts
90159-60047
90159-60081
90159-60268
90159-80014
90189-06018
91611-60610
91651-40612
93520-54010
Linked diagrams
8401
