RT140LG-TWKRSM (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)WG

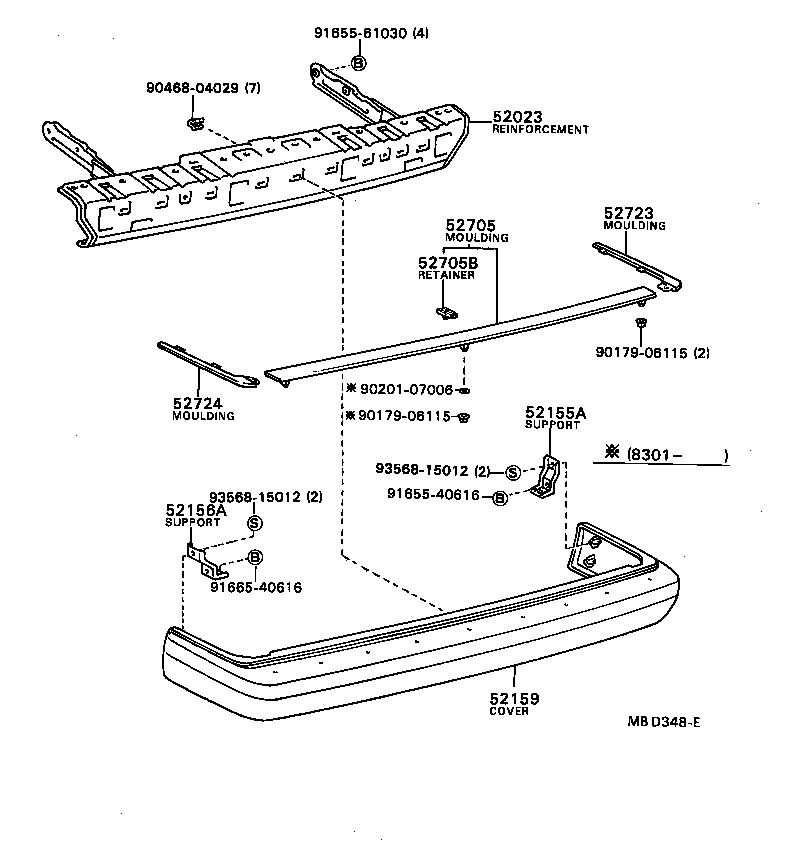

Click highlighted areas on diagram

diagram 52023 52155A 52156A 52159 52705 52705B 52723 52724 9017906115 9017906115 9020107006 9046804029 9165540616 9165561030 9166540616 9356815012 9356815012
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-91259

CT140,RT140,TT14#..WG

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-91257

CT140,RT140,ST141,TT14#..WG

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-91257

CT140,RT14#,ST141,TT14#..WG

 1
52159 - COVER, REAR BUMPER
52159-91258

CT140,RT140,TT14#..WG

 1
52723 - MOULDING, REAR BUMPER EXTENSION, RH
52752-91256

CT140,RT140,TT14#..WG

 1
52724 - MOULDING, REAR BUMPER EXTENSION, LH
52753-91256

CT140,RT140,TT14#..WG

 1
Common parts
90179-06115
90201-07006
90468-04029
91655-40616
91655-61030
91665-40616
93568-15012
