RT140L-TEKDSM (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)LHD ; (8508- )ST141..GEN

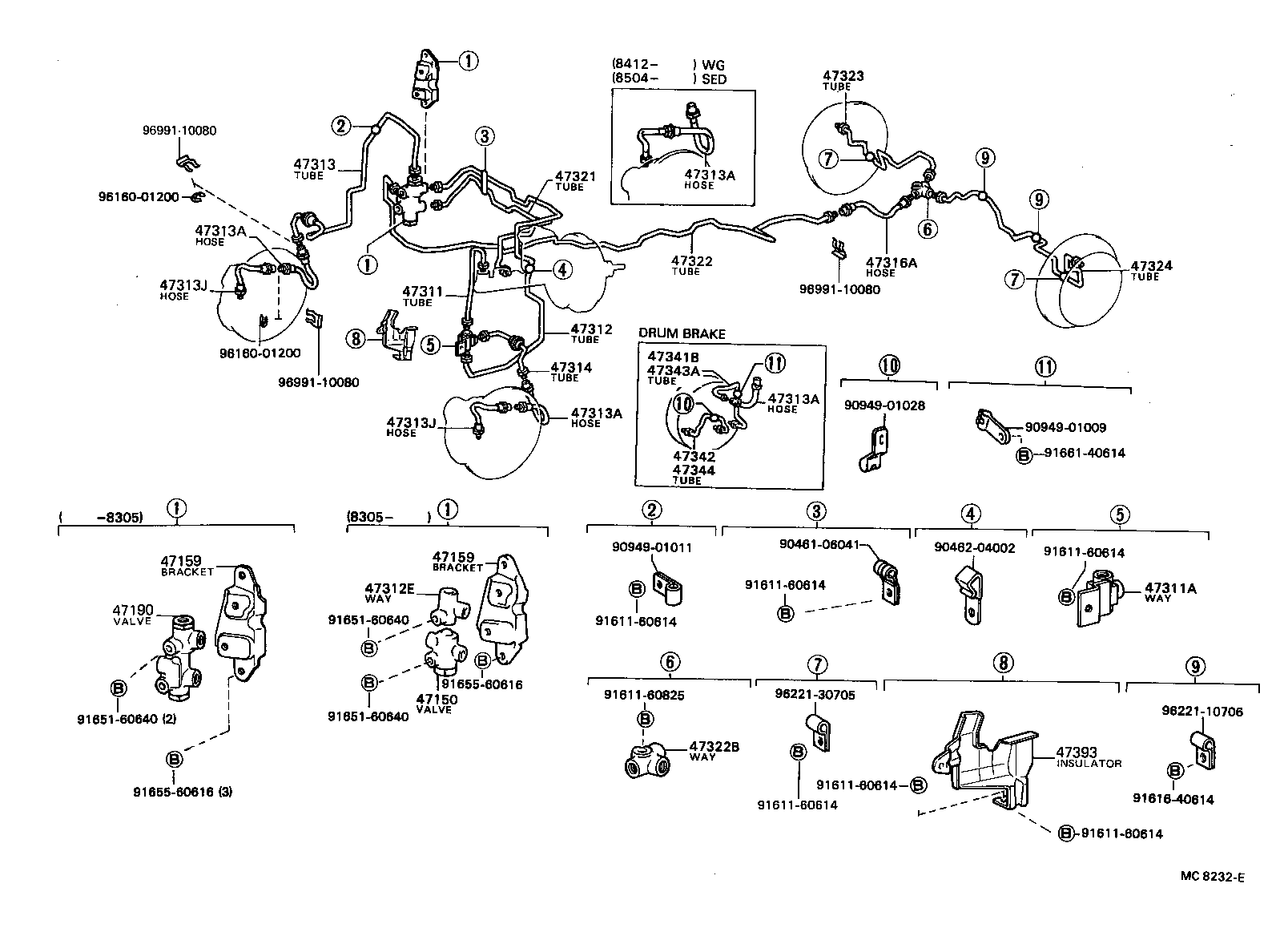

Click highlighted areas on diagram

diagram 47150 47159 47159 47190 47311 47311A 47312 47312E 47313 47313A 47313A 47313A 47313A 47313J 47313J 47314 47316A 47321 47322 47322B 47323 47324 47341B 47342 47343A 47344 47393 9046106041 9046204002 9094901009 9094901011 9094901028 9161160614 9161160614 9161160614 9161160614 9161160614 9161160614 9161160825 9161640614 9165160640 9165160640 9165160640 9165560616 9165560616 9166140614 9616001200 9616001200 9622110706 9622130705 9699110080 9699110080 9699110080
Part # Description Qty Price
47159 - BRACKET, PROPORTIONING VALVE
47159-14040

CT140,RT140,TT14#..LHD

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-14040

CT140,RT140,TT14#..LHD

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-12010

CT140,RT140,TT14#..LHD..(DLX,GL,STD)

FR DISC BRAKE

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-14220

CT140,RT140,ST141,TT14#,YT140..LHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10004

CT140,RT140,ST141,TT14#..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-14120

CT140,RT140,ST141,TT14#..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-14120

CT140,RT140,ST141,TT14#..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02426

CT140,RT140,TT14#..DLX,GL,STD

FR DISC BRAKE

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

CT140,RT140,TT14#..DLX,GL,STD

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
96960-32454

CT140,RT140,TT14#..DLX,GL,STD

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-14090

CT140,RT140,ST141,TT14#..LHD

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

CT14#,RT140,ST141,TT14#,YT140..SED..(GEN,ME,PHL)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-20060

RT140

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-14111

RT140,TT14#..SED..LHD..(3FC,4F,5F)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

CT14#,RT14#,ST141,TT14#,YT140

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-14042

CT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-14052

CT14#,RT140,ST141,TT14#..SED..(GEN,ME,PHL)

 1
Common parts
90461-06041
90462-04002
90949-01009
90949-01011
90949-01028
91611-60614
91611-60825
91616-40614
91651-60640
91655-60616
91661-40614
96160-01200
96221-10706
96221-30705
96991-10080
