RT140L-TEKDSM (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8206-8312)RT140

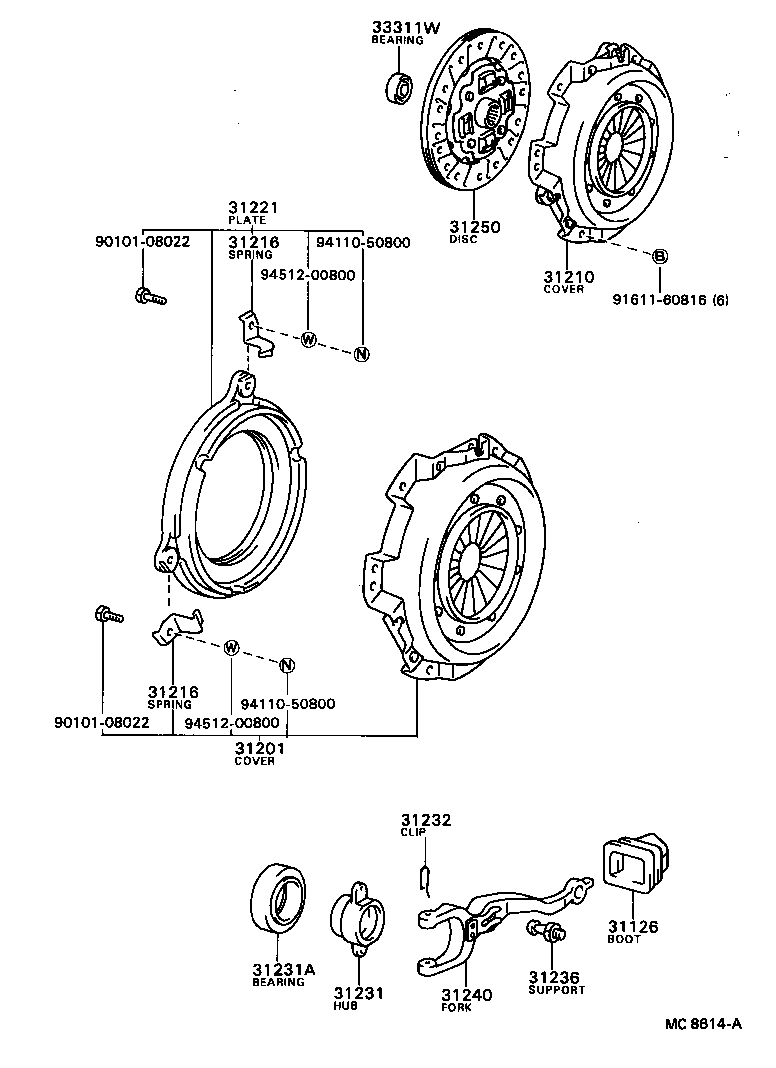

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31250 33311W 9010108022 9010108022 9161160816 9411050800 9411050800 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20050

RT140

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-19065

RT140,TT140..4F,5F

 1
31210 - COVER ASSY, CLUTCH
31210-20083

RT140

 1
31216 - SPRING, CLUTCH RETRACTING
31216-20020

RT140,TT14#..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-20020

RT140,TT14#..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-19025

RT140,TT141..MTM

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30020

RT140

 2
31232-22010

CT14#,RT14#,ST141,TT14#,YT140..MTM

 2
31236 - BALL, RELEASE FORK
31236-30060

CT14#,RT14#,ST141,TT14#,YT140..MTM

 1
31236-30030

RT140

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-25020

RT140

 1
31250 - DISC ASSY, CLUTCH
31250-22091

RT140;TT140..3H,4H

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

RT140

 1
Common parts
90101-08022
91611-60816
94110-50800
94512-00800
