CT141R-TEMRS (1986)

Toyota Corona Fr

Production Jan 1986 - Jul 1999
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8612)

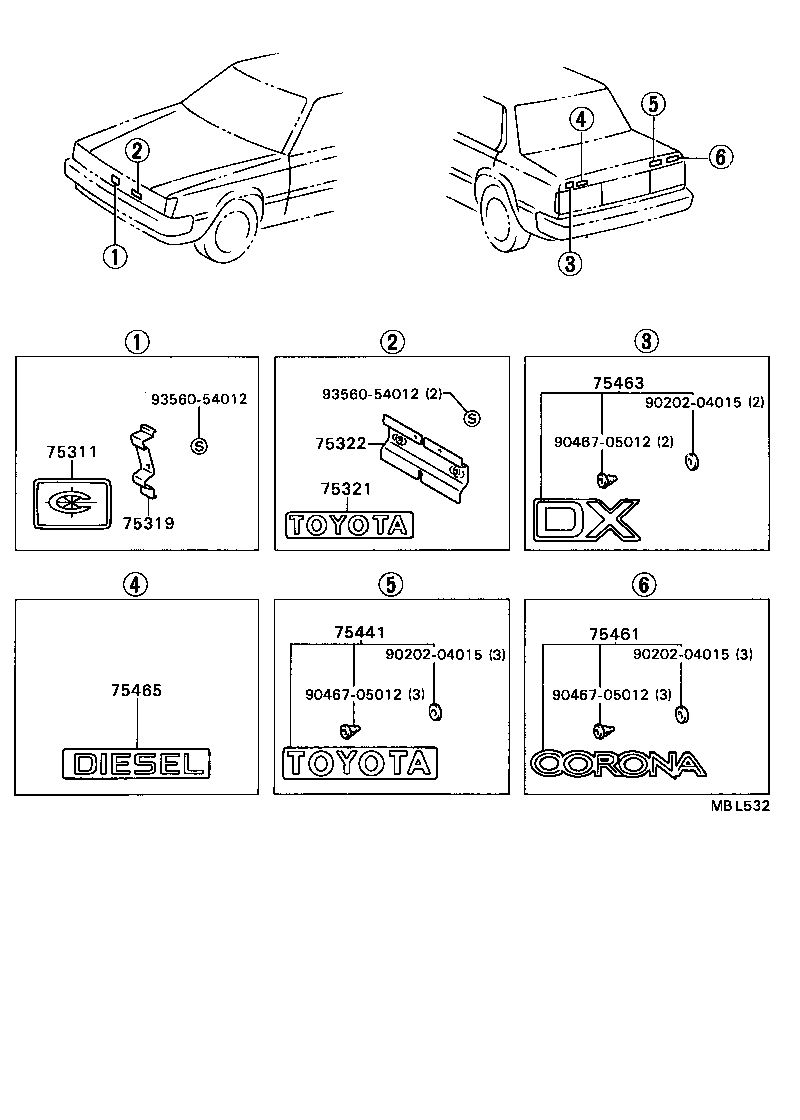

Click highlighted areas on diagram

diagram 75305 75321 75441 75461 75462 75463 75465 9020204010 9020204015 9020204015 9020204015 9020204015 9020204015 9020204015 9046400278 9046705012 9046705012 9046705012 9046705012 9046705012 9046705012 9046804129 9356014012
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20400

CT141,YT140

TOYOTA,TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75443-20180

CT141,YT140

TOYOTA

 1
75443-14190

CT14#,RT14#,ST141,TT14#..SED

TOYOTA,TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-20260

CT141,YT140

CORONA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-20360

CT141,YT140

DX

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75445-12091

CT141

DIESEL

 1
Common parts
90202-04010
90202-04015
90464-00278
90467-05012
90468-04129
93560-14012

(8612- )

Click highlighted areas on diagram

diagram 75311 75319 75321 75322 75441 75461 75463 75465 9020204015 9020204015 9020204015 9046705012 9046705012 9046705012 9356054012 9356054012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-20280

CT141,YT140

 1
75319 - RETAINER, RADIATOR GRILLE (OR FRONT PANEL) NAME
75318-20030

CT141,YT140

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20400

CT141,YT140

TOYOTA,TOYOTA

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-20100

CT141,YT140

 1
75324-20110

CT141,YT140

W/*REC HEADLAMP

 1
75441 - PLATE, REAR NAME, NO.1
75443-20180

CT141,YT140

TOYOTA

 1
75443-14190

CT14#,RT14#,ST141,TT14#..SED

TOYOTA,TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-20260

CT141,YT140

CORONA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-20360

CT141,YT140

DX

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75445-12091

CT141

DIESEL

 1
Common parts
90202-04015
90467-05012
93560-54012
