CT140R-TEMDS (1982)

Toyota Corona Fr

Production Jan 1982 - Dec 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8312)CT140,RT140

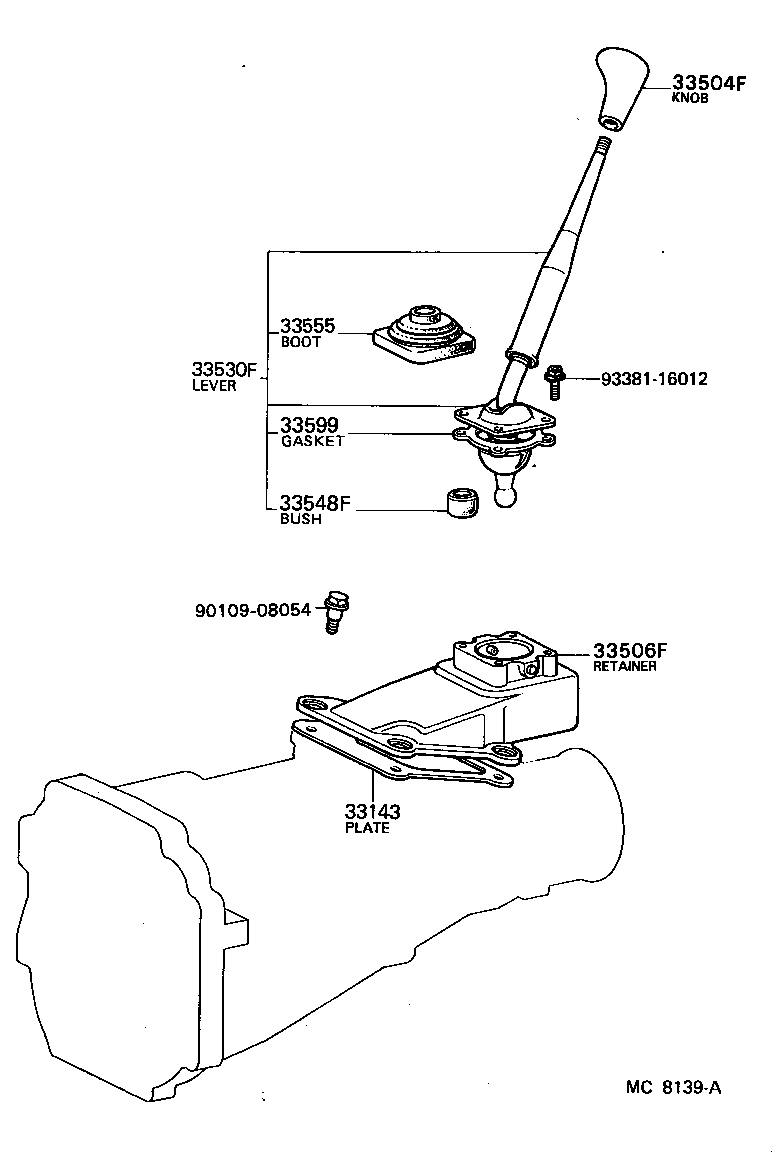

Click highlighted areas on diagram

diagram 33143 33504F 33506F 33530F 33548F 33555 33599 9010908054 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-20031

CT140,RT140

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-1407001

CT140,TT14#..5F..(DLX,STD,TAX)

BLACK,BLACK

 1
33504-1407004

CT140,TT14#..5F..(DLX,TAX)

BLUE,BLUE

 1
33504-2401016

CT140,TT14#..SED..5F

W/URETHANE STAG,SADDLE BROWN,BROWN

 1
33504-1407016

CT140,TT14#..5F..(DLX,STD,TAX)

SADDLE BROWN,BROWN

 1
33504-2401004

CT140,TT14#..SED..5F

W/URETHANE STRG,BLUE,BLUE

 1
33504-2401001

CT140,TT14#..SED..5F

LARGE TYPE,BLACK,BLACK

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-14041

CT140,RT140

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-20231

CT140..RHD

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

CT140,RT140

 1
33555 - BOOT, SHIFT LEVER
33555-31011

CT140,RT140

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-31020

CT140,RT140

 1
Common parts
90109-08054
93381-16012
