CT140LG-TWMRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8508)WG ; (8508-8612)WG..ARL

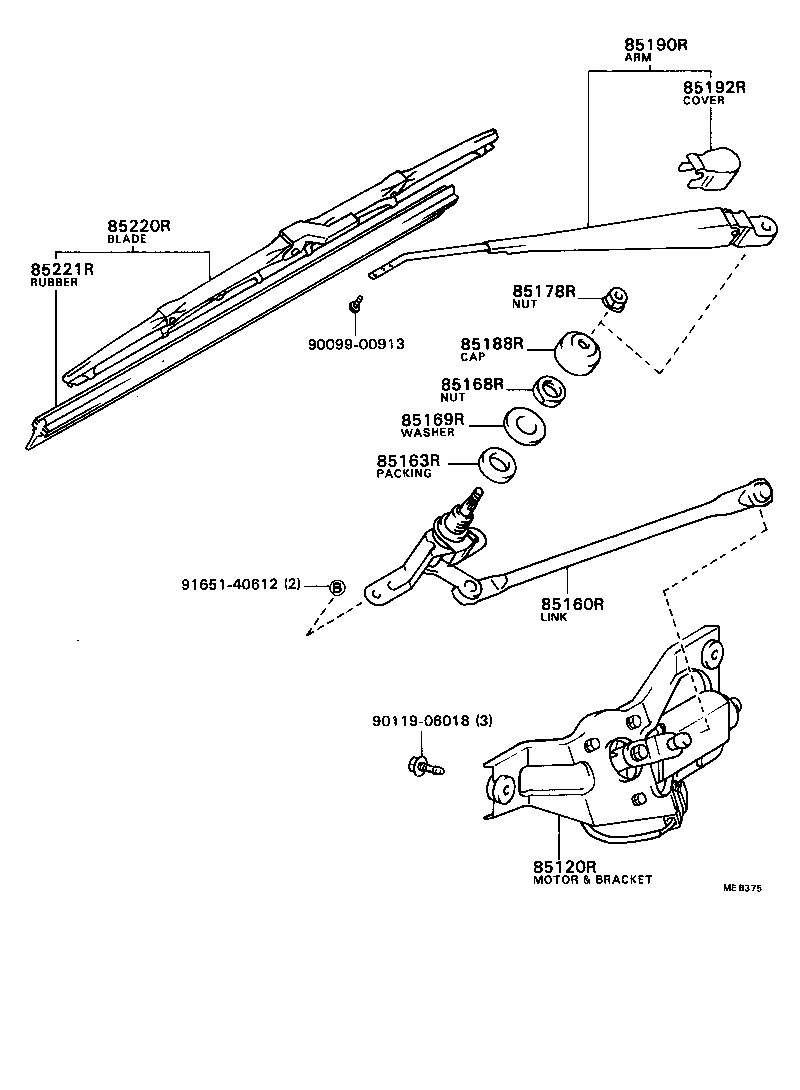

Click highlighted areas on diagram

diagram 85120R 85160R 85163R 85168R 85169R 85178R 85188R 85190R 85192R 85220R 85221R 9009900913 9011906018 9165140612
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-91C01

CT140,RT140,ST141,TT14#..WG

 1
85160R - LINK ASSY, REAR WIPER
85160-91C01

CT140,RT140,ST141,TT14#..WG

 1
85163R - PACKING, REAR WIPER PIVOT, NO.1
85174-12320

CT140,RT140,ST141,TT14#..WG

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05141

CT140,RT140,ST141,TT14#..WG

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90099-01458

CT140,RT140,ST141,TT14#..WG

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

CT140,RT140,ST141,TT14#..WG

 1
85188R - CAP, REAR WIPER PIVOT, NO.1
85178-12320

CT140,RT140,ST141,TT14#..WG

 1
85190R - ARM ASSY, REAR WIPER
85190-91C01

CT140,RT140,ST141,TT14#..WG

 1
85192R - COVER, REAR WIPER ARM
85192-14020

CT140,RT140,ST141,TT14#..WG

 1
85220R - BLADE ASSY, REAR WIPER
85220-91C01

CT140,RT140,ST141,TT14#..WG

 1
85221R - BLADE, REAR WIPER
85221-91C01

CT140,RT140,ST141,TT14#..WG

 1
Common parts
90099-00913
90119-06018
91651-40612
