CT140LG-TWMRS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )

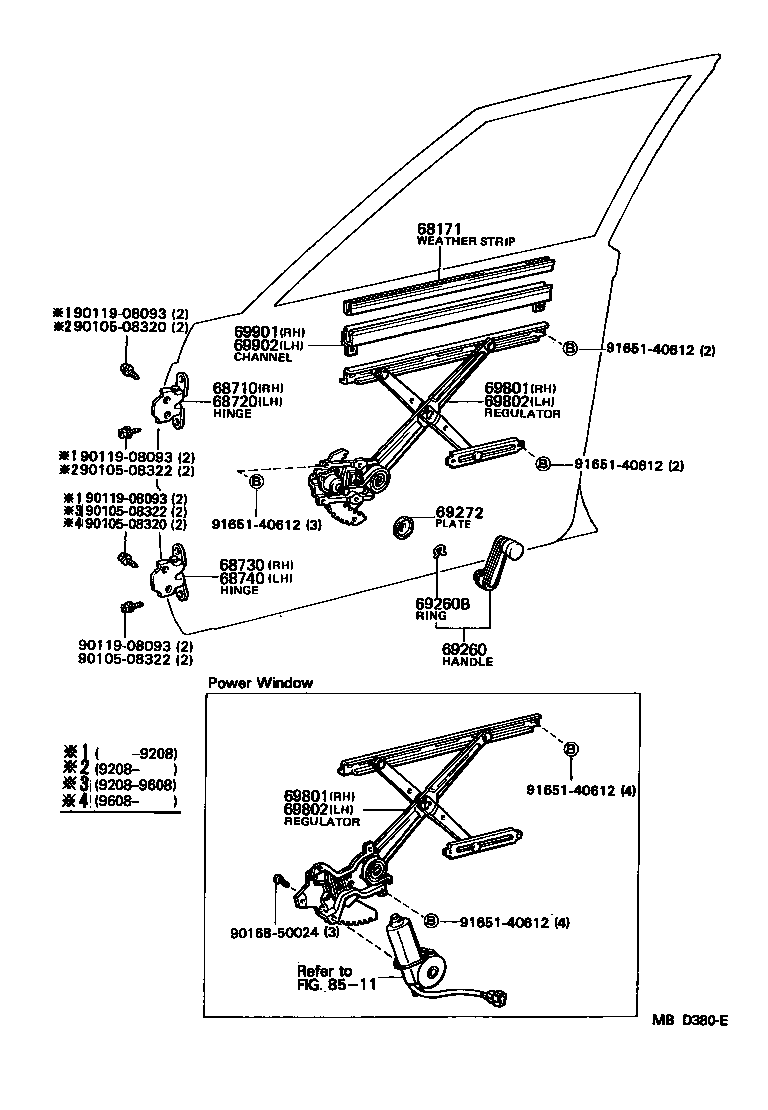

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 8511 9010508320 9010508320 9010508322 9010508322 9010508322 9011908093 9011908093 9011908093 9011908093 9016850024 9165140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

CT14#,RT14#,ST141,TT14#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20060

CT14#,RT14#,ST141,TT14#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20050

CT14#,RT14#,ST141,TT14#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-24010

CT14#,RT14#,ST141,TT14#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-24010

CT14#,RT14#,ST141,TT14#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402001

CT140,RT14#,ST141,TT14#

BLACK,BLACK

 2
69260-1402016

CT140,RT14#,ST141,TT14#

SADDLE BROWN,BROWN

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

CT14#,RT14#,ST141,TT14#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

CT14#,RT14#,ST141,TT14#

NATURAL WHITE,NATURAL WHITE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14120

CT14#,RT14#,ST141,TT14#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-14120

CT14#,RT14#,ST141,TT14#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14110

CT14#,RT14#,ST141,TT14#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-14110

CT14#,RT14#,ST141,TT14#

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-14070

CT140,RT140,TT14#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-14070

CT140,RT140,TT14#

 1
Common parts
90105-08320
90105-08322
90119-08093
90168-50024
91651-40612
Linked diagrams
8511
