CT140L-TEMTS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

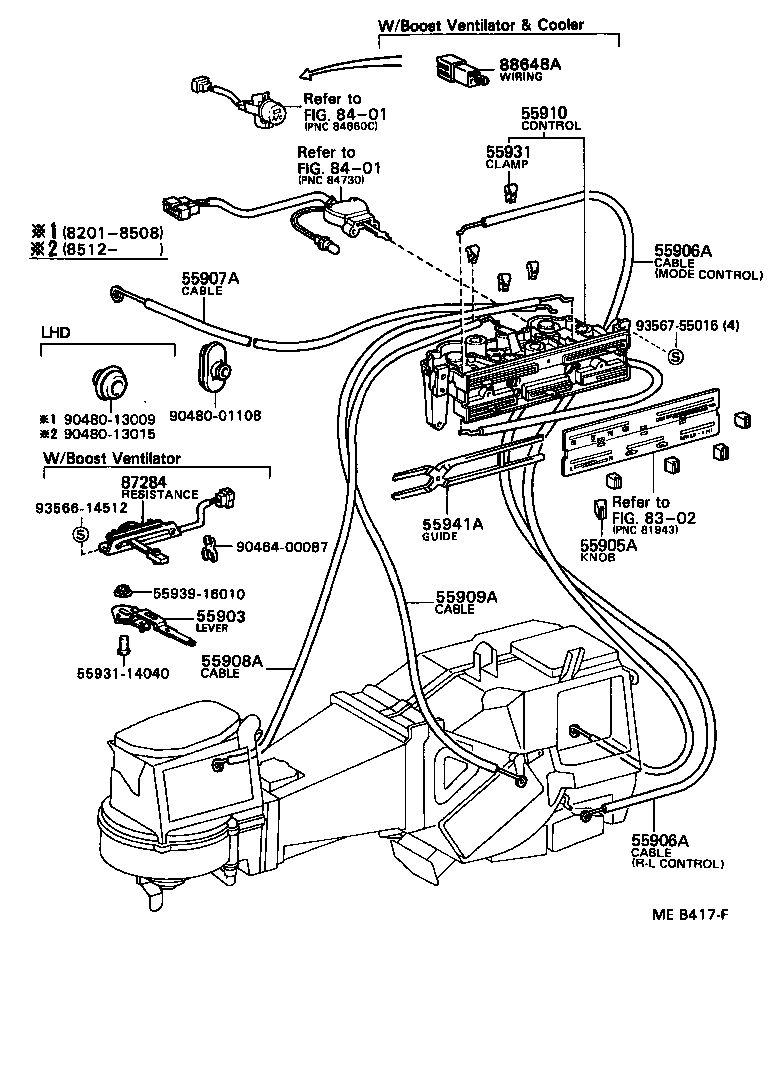

ILLUST NO. 1 OF 2(8201- )

Click highlighted areas on diagram

diagram 55903 55905A 55906A 55906A 55907A 55908A 55909A 55910 55931 5593114040 5593916010 55941A 8302 8401 8401 87284 88648A 9046400087 9048001108 9048013009 9048013015 9356614512 9356755016
Part # Description Qty Price
55903 - LEVER SUB-ASSY, HEATER CONTROL
55917-20080

CT140,TT14#

W/BOOST VENTILATOR

 1
55905A - KNOB, HEATER CONTROL
55905-12060

CT140,RT140,TT14#

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20130

CT140,RT140,TT14#..LHD

MODE CONTROL

 1
55906-20140

CT140,RT142,ST141,TT14#

R-L CONTROL

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20130

CT140,RT140,TT14#..LHD

MODE CONTROL

 1
55906-20140

CT140,RT142,ST141,TT14#

R-L CONTROL

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20150

CT140,TT14#..LHD

WIRE:L=560,TUBE:L=505

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20070

CT140,RT140,TT14#

WIRE:L=650,TUBE:L=595

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20030

CT140,RT142,ST141,TT14#

WIRE:L=620,TUBE:L=565

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20271

CT140,TT14#..LHD

 1
55910-20281

CT140,RT140,TT14#..LHD

W/BOOST VENTILATOR

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-24010

CT140,RT140,TT14#..LHD

 5
55941A - GUIDE, HEATER CONTROL
55941-14030

CT140,ST141,TT14#..LHD

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-14090

CT140,TT14#

 1
88648A - WIRING, COOLER
88605-14450

CT140,TT14#

W/BOOST VENTILATOR & COOLER

 1
Common parts
55931-14040
55939-16010
90464-00087
90480-01108
90480-13009
90480-13015
93566-14512
93567-55016
Linked diagrams
8302
8401

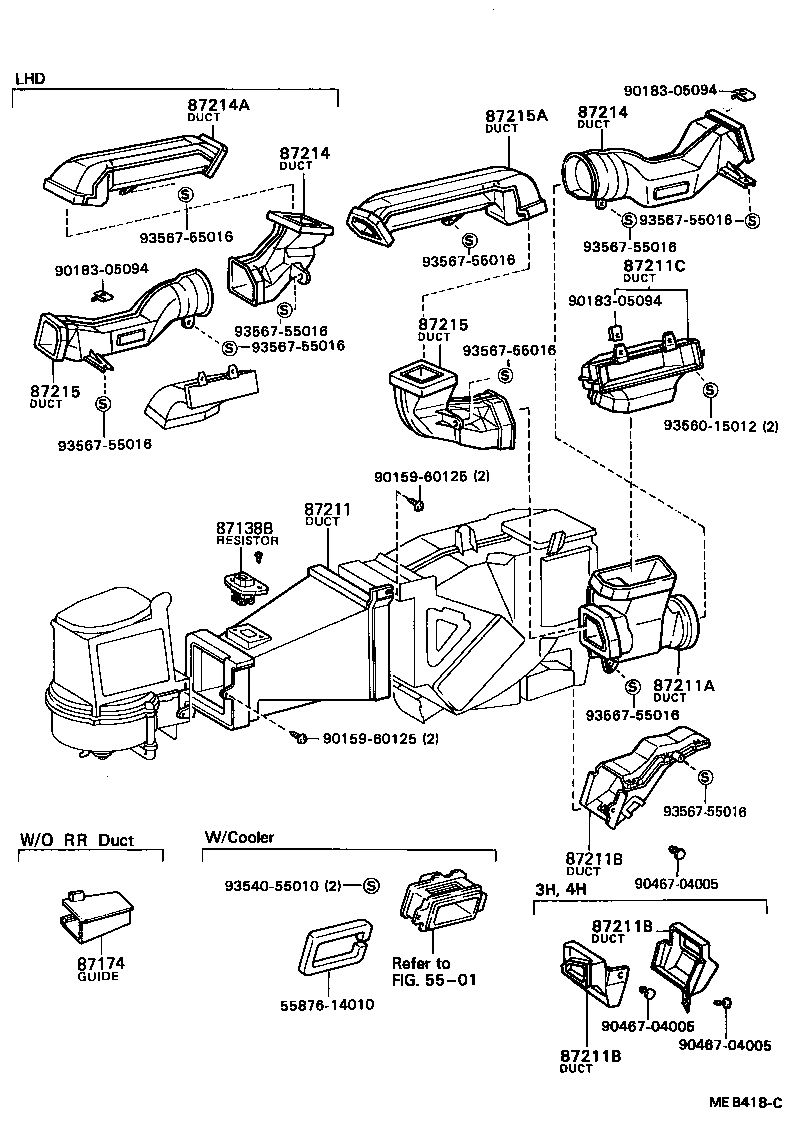

ILLUST NO. 2 OF 2(8201- )

Click highlighted areas on diagram

diagram 5501 5587614010 87138B 87174 87211 87211A 87211B 87211B 87211B 87211C 87214 87214 87214A 87215 87215 87215A 9015960125 9015960125 9018305094 9018305094 9018305094 9046704005 9046704005 9046704005 9354055010 9356015012 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
87138B - RESISTOR, HEATER BLOWER
87138-14060

CT140,RT140,TT14#..LHD

 1
87174 - GUIDE, AIR DUCT
87174-14040

CT14#,RT142,ST141,TT14#,YT140

W/O RR DUCT

 1
87211 - DUCT, AIR, NO.1
87201-14150

CT140,TT14#..LHD

 1
87211A - DUCT, AIR, NO.2
87201-14110

CT14#,RT140,ST141,TT14#,YT140..LHD

 1
87211B - DUCT, AIR, NO.3
87201-14140

CT140,TT14#..LHD..(3FC,4F,5F)

 1
87211B - DUCT, AIR, NO.3
87201-14140

CT140,TT14#..LHD..(3FC,4F,5F)

 1
87211B - DUCT, AIR, NO.3
87201-14140

CT140,TT14#..LHD..(3FC,4F,5F)

 1
87211C - DUCT, AIR, NO.4
55086-20040

CT14#,RT140,ST141,TT14#,YT140..LHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55087-20050

CT14#,RT140,ST141,TT14#,YT140..LHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55087-20050

CT14#,RT140,ST141,TT14#,YT140..LHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55088-20020

CT14#,RT140,ST141,TT14#,YT140..LHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-14120

CT14#,RT140,ST141,TT14#,YT140..LHD..(3FC,4F,5F)

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-14120

CT14#,RT140,ST141,TT14#,YT140..LHD..(3FC,4F,5F)

 1
Common parts
55876-14010
90159-60125
90183-05094
90467-04005
93540-55010
93560-15012
93567-55016
Linked diagrams
5501
