CT140L-TEMTS (1982)
Toyota Corona Fr
ILLUST NO. 1 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
CT140,RT140,ST141,TT14# NIPPONDENSO |
1 | ||
| 83420-20020 |
CT140,RT140,ST141,TT14# YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
CT140,RT140,ST141,TT14# NIPPONDENSO |
1 | ||
| 83420-20020 |
CT140,RT140,ST141,TT14# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
CT140,RT140 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
CT140,RT140 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
CT140,RT140 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
CT140,RT140 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
CT140,RT140 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
CT140,RT140 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89422-30020 |
CT140 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-12200 | ||||
| 82711-24120 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91651-40610 | ||||
| 92132-40632 | ||||
| 93385-16025 | ||||
| 94613-10601 | ||||
ILLUST NO. 3 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20030 |
CT140,TT14# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19355 |
CT140,RT140,TT14#..LHD TOKAIRIKA |
1 | ||
| 84112-19305 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) MATSUSHITA(CKD COUNTRY) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19065 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) MATSUSHITA(CKD COUNTRY) |
1 | ||
| 84140-19135 |
CT140,RT140,TT14#..LHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-14240 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) W/*IW |
1 | ||
| 84310-14380 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) MATSUSHITA(CKD COUNTRY) |
1 | ||
| 84312-20011 |
CT140,RT140,ST141,TT14# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19105 |
CT140,RT140,TT14#..LHD TOKAIRIKA |
1 | ||
| 84332-19055 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) MATSUSHITA(CKD COUNTRY) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30131 |
CT14#,RT140,ST141,TT14#,YT140..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19365 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) TOKAIRIKA,W/*IW |
1 | ||
| 84652-14210 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) MATSUSHITA(CKD COUNTRY) |
1 | ||
| 84652-19355 |
CT140,RT140,TT14#..LHD..(DLX,STD,TAX) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20050 |
CT140,TT14#..LHD |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
CT140,RT142,ST141,TT14# 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20120 |
CT140,RT140,TT14# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
CT140,RT140,TT14# 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14150 |
CT140,TT14#..SED..(3FC,4F,5F) W/LOOP PILE FLOOR CARPET |
1 | ||
| 84790-20080 |
CT140..SED W/VINYL FLOOR MAT |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14150 |
CT140,TT14#..SED..(3FC,4F,5F) W/LOOP PILE FLOOR CARPET |
1 | ||
| 84790-20080 |
CT140..SED W/VINYL FLOOR MAT |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
CT140,TT14#..SED 12V 1.12W,12V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
CT140,TT14#..SED 12V 1.12W,12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20170 |
CT140,RT14#,ST141,TT14# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
CT140,RT14#,ST141,TT14# 14V 1.4W,12V 1.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
CT140,RT140,ST141,TT14# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14550 | ||||
| 82711-22270 | ||||
| 90461-08458 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93566-55512 | ||||
| 93567-55016 | ||||
ILLUST NO. 4 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-64030 |
1C..CT140..LHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
CT140,RT14#,ST141,TT14# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CT14#,RT14#,ST141,TT14#,YT140 7.5A,7.5A |
7 | ||
| 90982-09003 |
CT14#,RT14#,ST141,TT14#,YT140 15A,15A |
12 | ||
| 90982-09004 |
CT140,RT140,ST141,TT14# 20A,YELLOW,20A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
CT14#,RT14#,ST141,TT14#,YT140 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CT14#,RT14#,ST141,TT14# 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
CT14#,RT14#,ST141,TT14# 30A |
2 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-14010 |
CT140,RT140,TT14#..LHD NO.1(DRIVER SIDE) |
1 | ||
| 82660-22010 |
CT14#,RT14#,ST141,TT14# NO.2(ASSISTANT SIDE) |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-14010 |
CT140,RT140,TT14#..LHD NO.1(DRIVER SIDE) |
1 | ||
| 82660-22010 |
CT14#,RT14#,ST141,TT14# NO.2(ASSISTANT SIDE) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 85912-20010 |
CT140,TT14#..SED W/DEFOGGER TIMMER |
1 | ||
| 90987-02004 |
TT14#..WG;CT140,RT140,ST141..CS,CSX,S,STD NIPPONDENSO |
1 | ||
| 90987-02002 |
TT14#..WG;CT140,RT140,ST141..CS,CSX,S,STD MARUKO |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 85912-20010 |
CT140,TT14#..SED W/DEFOGGER TIMMER |
1 | ||
| 90987-02004 |
TT14#..WG;CT140,RT140,ST141..CS,CSX,S,STD NIPPONDENSO |
1 | ||
| 90987-02002 |
TT14#..WG;CT140,RT140,ST141..CS,CSX,S,STD MARUKO |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
CT14#,RT14#,ST141,TT14# MARUKO |
1 | ||
| 90987-02004 |
CT14#,RT14#,ST141,TT14# NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CT140,RT140,ST141,TT14# TAIL & HEAD |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12020 |
CT140,RT140,TT14#..DLX,STD,TAX |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-30060 |
CT140 |
1 | ||
| Common parts | ||||
| 90119-06029 | ||||
| 90119-06033 | ||||
| 90159-60081 | ||||
| 90179-06007 | ||||
| 90189-05010 | ||||
| 90189-06018 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 93540-55014 | ||||
ILLUST NO. 5 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19565 |
CT140..SED |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
CT14#,RT14#,ST141,TT14#,YT140..SED |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20080 |
CT14#,RT14#,ST141,TT14#..SED |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20080 |
CT14#,RT14#,ST141,TT14#..SED |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-24010 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20060 |
CT140,RT140,TT14#..SED..(DLX,GL,TAX) |
1 | ||
| 84236A - BRACKET, COURTESY SWITCH(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84233-20030 |
CT140,RT14#,ST141,TT14#..SED..(CS,CSI,CSX,CXI,DLX,GL,TAX) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
CT14#,RT14#,ST141,TT14#,YT140 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
CT14#,RT14#,ST141,TT14#,YT140..3FC,4F,4FC,5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
CT14#,RT14#,ST141,TT14#,YT140..3FC,4F,4FC,5F |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90170-10179 | ||||
| 90179-06006 | ||||
| 90179-06070 | ||||
| 90179-06184 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90463-08205 | ||||
| 91651-40612 | ||||
| 93315-14014 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8511 | ||||

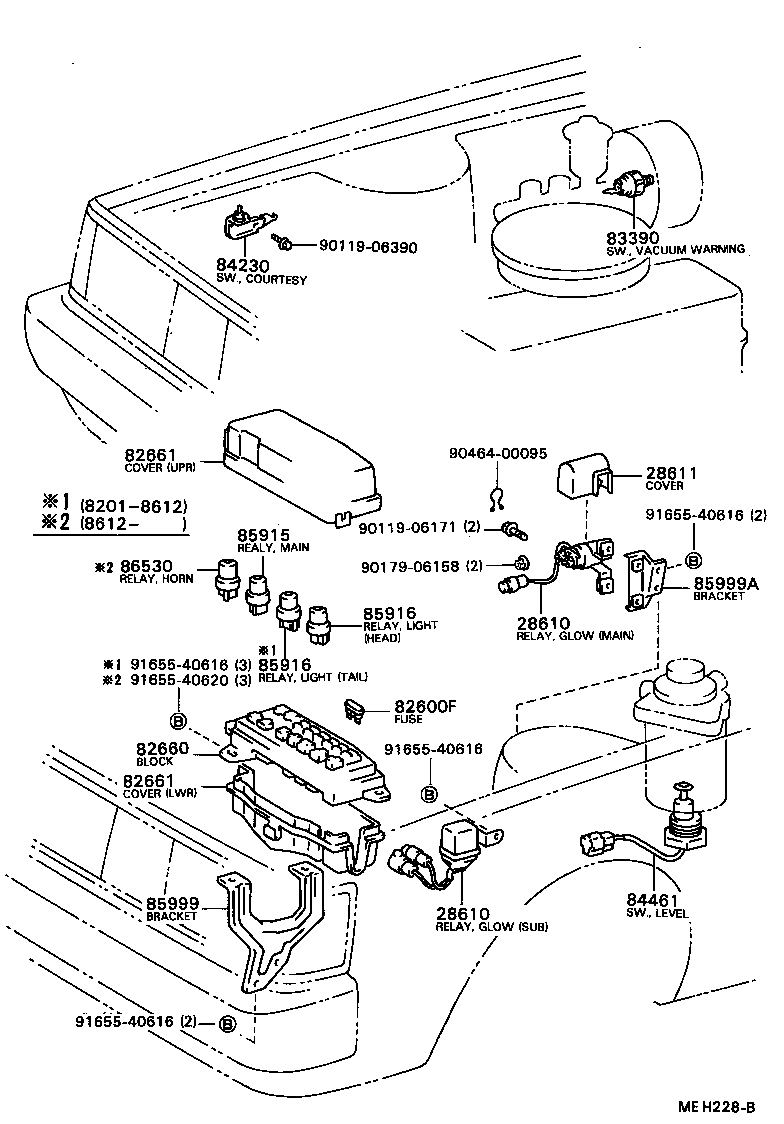

ILLUST NO. 2 OF 5(8201-8312)CT140 ; (8601- )CT141
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64010 |
1C..CT140 SUB |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-64010 |
1C..CT140 SUB |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
CT14#,RT14#,ST141,TT14#,YT140 7.5A,7.5A |
7 | ||
| 90982-09003 |
CT14#,RT14#,ST141,TT14#,YT140 15A,15A |
12 | ||
| 90982-09004 |
CT140,RT140,ST141,TT14# 20A,YELLOW,20A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22100 |
CT140,RT140,ST141,TT14# YAZAKI |
1 | ||
| 82660-22091 |
CT140,RT140,ST141,TT14# SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22011 |
CT140,RT140,ST141,TT14# UPR,SUMITOMO |
1 | ||
| 82661-22030 |
CT140,RT14#,ST141,TT14# LWR,SUMITOMO |
1 | ||
| 82661-22060 |
CT140,RT14#,ST141,TT14# LWR,YAZAKI |
1 | ||
| 82661-22040 |
CT140,RT140,ST141,TT14# UPR,YAZAKI |
1 | ||
| 82661-22080 |
CT140,RT140,ST141,TT14# UPR,YAZAKI |
1 | ||
| 82661-22070 |
CT140,RT140,ST141,TT14# UPR,SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22011 |
CT140,RT140,ST141,TT14# UPR,SUMITOMO |
1 | ||
| 82661-22030 |
CT140,RT14#,ST141,TT14# LWR,SUMITOMO |
1 | ||
| 82661-22060 |
CT140,RT14#,ST141,TT14# LWR,YAZAKI |
1 | ||
| 82661-22040 |
CT140,RT140,ST141,TT14# UPR,YAZAKI |
1 | ||
| 82661-22080 |
CT140,RT140,ST141,TT14# UPR,YAZAKI |
1 | ||
| 82661-22070 |
CT140,RT140,ST141,TT14# UPR,SUMITOMO |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
CT140 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-14030 |
CT140..LHD |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02002 |
CT14#,RT14#,ST141,TT14# MARUKO |
1 | ||
| 90987-02004 |
CT14#,RT14#,ST141,TT14# NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CT140,RT140,ST141,TT14# TAIL & HEAD |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
CT140,RT140,ST141,TT14# TAIL & HEAD |
2 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-14080 |
CT140 |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90119-06390 | ||||
| 90179-06158 | ||||
| 90464-00095 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
