CT140L-TEMTS (1982)
Toyota Corona Fr

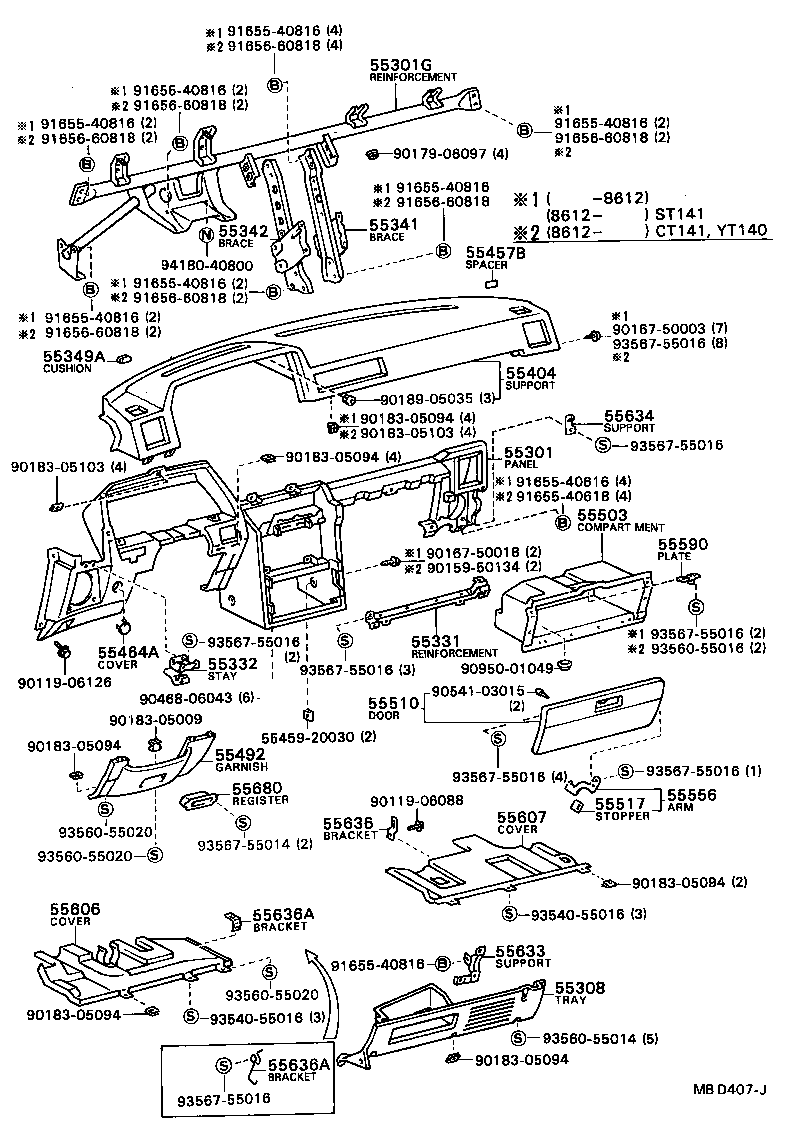

ILLUST NO. 1 OF 2(8201- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55312-2013004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55312-2013001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55312-2013006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55301G - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL | ||||
| 55305-14070 |
CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-2004004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55601-2004006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55601-2004001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55332-20090 |
CT140,RT140,ST141,TT14#..LHD |
1 | ||
| 55332 - STAY, INSTRUMENT PANEL | ||||
| 55303-20060 |
CT140,RT140,ST141,TT14#..LHD |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-14080 |
CT140,RT140,ST141,TT14#..LHD |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-14120 |
CT140,RT140,ST141,TT14#..LHD |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-14050 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-2041004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55401-2041006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55401-2041001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55457B - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-22030 |
CT14#,RT14#,ST141,TT14# 16X30 |
4 | ||
| 55464A - COVER, CHOKE KNOB HOLE | ||||
| 55619-1401014 |
CT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55619-1401001 |
CT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55619-1401006 |
CT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55492 - GARNISH OR SAFETY PAD, LOWER, RH | ||||
| 55432-2012004 |
CT140,RT140,TT14#..SED..LHD..(3FC,4F,5F) BLUE,BLUE |
1 | ||
| 55432-2012006 |
CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) SADDLE BROWN,BROWN |
1 | ||
| 55432-2012001 |
CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) BLACK,BLACK |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-20070 |
CT140,RT140,ST141,TT14#..LHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2008006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55550-2008001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55550-2008004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-14080 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-14010 |
CT140,RT14#,ST141,TT14# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-20030 |
CT140..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-20020 |
CT140..LHD |
1 | ||
| 55633 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55633-20030 |
CT140,RT140,ST141,TT14#..LHD |
1 | ||
| 55634 - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.3 | ||||
| 55634-20010 |
CT140,RT140,ST141,TT14#..LHD |
1 | ||
| 55636 - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1 | ||||
| 55636-24010 |
CT140 |
1 | ||
| 55636A - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.2 | ||||
| 55636-14030 |
CT140 W/HEATER,BOOST VENTILATOR |
1 | ||
| 55637-20070 |
CT140..LHD |
1 | ||
| 55636A - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.2 | ||||
| 55636-14030 |
CT140 W/HEATER,BOOST VENTILATOR |
1 | ||
| 55637-20070 |
CT140..LHD |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1401016 |
CT140,RT142,ST141,TT14# SADDLE BROWN,BROWN |
1 | ||
| 55680-1401004 |
CT140,RT142,ST141,TT14#..SED BLUE,BLUE |
1 | ||
| 55680-1401001 |
CT140,RT142,ST141,TT14# BLACK,BLACK |
1 | ||
| Common parts | ||||
| 55459-20030 | ||||
| 90119-06088 | ||||
| 90119-06126 | ||||
| 90159-50134 | ||||
| 90167-50003 | ||||
| 90167-50018 | ||||
| 90179-06097 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-05035 | ||||
| 90468-06043 | ||||
| 90541-03015 | ||||
| 90950-01049 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-40816 | ||||
| 91656-60818 | ||||
| 93540-55016 | ||||
| 93560-55014 | ||||
| 93560-55016 | ||||
| 93560-55020 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 94180-40800 | ||||

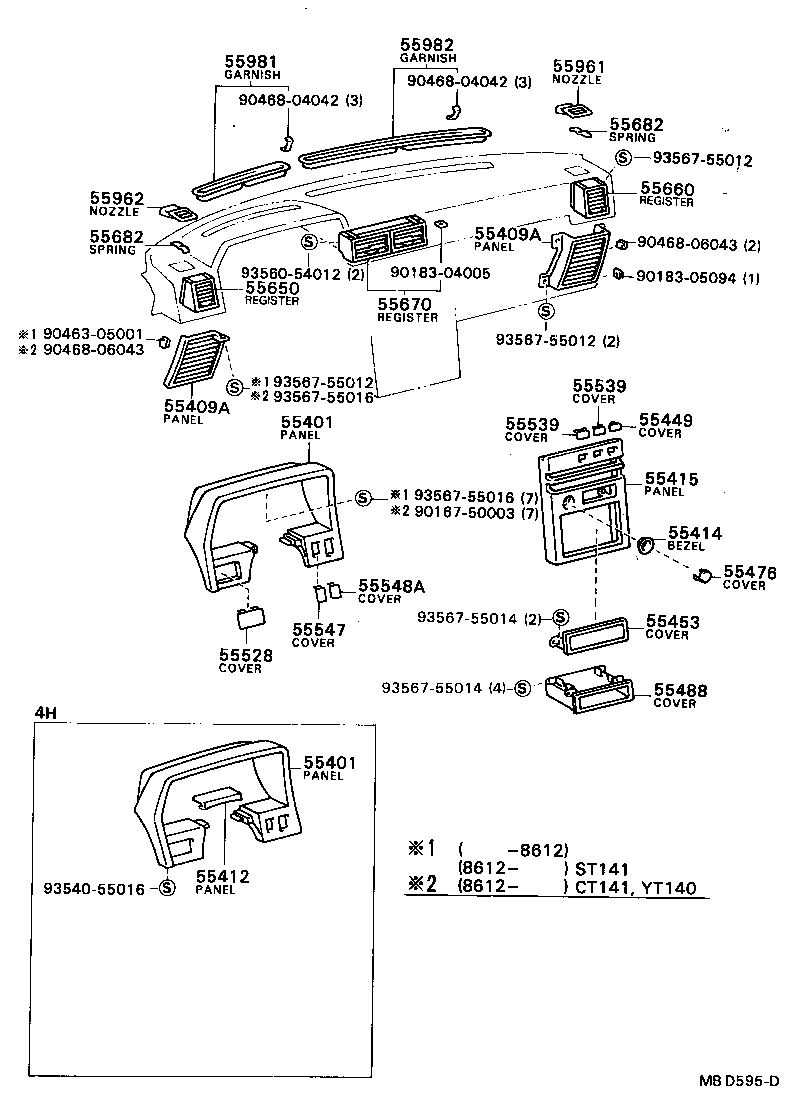

ILLUST NO. 2 OF 2(8201- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-2012006 |
CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) DARK BROWN,BROWN |
1 | ||
| 55404-2012001 |
CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) BLACK,BLACK |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-2012006 |
CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) DARK BROWN,BROWN |
1 | ||
| 55404-2012001 |
CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) BLACK,BLACK |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55408-2004006 |
CT140,RT140,ST141,TT14#..LHD LH,SADDLE BROWN,BROWN |
1 | ||
| 55408-2004004 |
CT140,RT140,TT14#..SED..LHD LH,BLUE,BLUE |
1 | ||
| 55408-2004001 |
CT140,RT140,ST141,TT14#..LHD LH,BLACK,BLACK |
1 | ||
| 55409-2009006 |
CT140,RT140,ST141,TT14#..LHD RH,SADDLE BROWN,BROWN |
1 | ||
| 55409-2009001 |
CT140,RT140,ST141,TT14#..LHD RH,BLACK,BLACK |
1 | ||
| 55409-2009004 |
CT140,RT140,TT14#..SED..LHD RH,BLUE,BLUE |
1 | ||
| 55409A - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER | ||||
| 55408-2004006 |
CT140,RT140,ST141,TT14#..LHD LH,SADDLE BROWN,BROWN |
1 | ||
| 55408-2004004 |
CT140,RT140,TT14#..SED..LHD LH,BLUE,BLUE |
1 | ||
| 55408-2004001 |
CT140,RT140,ST141,TT14#..LHD LH,BLACK,BLACK |
1 | ||
| 55409-2009006 |
CT140,RT140,ST141,TT14#..LHD RH,SADDLE BROWN,BROWN |
1 | ||
| 55409-2009001 |
CT140,RT140,ST141,TT14#..LHD RH,BLACK,BLACK |
1 | ||
| 55409-2009004 |
CT140,RT140,TT14#..SED..LHD RH,BLUE,BLUE |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-14050 |
CT140,RT14#,ST141,TT14# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-2025004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55412-2025006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55412-2025001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55449 - COVER, COOLER SWITCH HOLE | ||||
| 55538-2003006 |
CT140,RT14#,ST141,TT14# SADDLE BROWN,BROWN |
1 | ||
| 55538-2003001 |
CT140,RT14#,ST141,TT14# BLACK,BLACK |
1 | ||
| 55538-2003004 |
CT140,RT140,ST141,TT14#..SED BLUE,BLUE |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-20040 |
CT14#,RT14#,ST141,TT14# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-1001001 |
CT140,RT140,ST141,TT140..S,STD BLACK,BLACK |
1 | ||
| 55477-1001006 |
CT140,RT140,ST141,TT140..S,STD SADDLE BROWN,BROWN |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-1405001 |
CT140,RT140,TT14# BLACK |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-3002001 |
CT140,RT140,ST141,TT14#..3FC,3H,4F,5F BLACK,BLACK |
1 | ||
| 55528-3002006 |
CT140,RT140,ST141,TT14#..3FC,3H,4F,5F DARK BROWN,BROWN |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2001004 |
CT140,RT14#,ST141,TT14#..SED BLUE,BLUE |
2 | ||
| 55539-2001006 |
CT140,RT14#,ST141,TT14# SADDLE BROWN,BROWN |
2 | ||
| 55539-2001001 |
CT140,RT14#,ST141,TT14# BLACK,BLACK |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2001004 |
CT140,RT14#,ST141,TT14#..SED BLUE,BLUE |
2 | ||
| 55539-2001006 |
CT140,RT14#,ST141,TT14# SADDLE BROWN,BROWN |
2 | ||
| 55539-2001001 |
CT140,RT14#,ST141,TT14# BLACK,BLACK |
2 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-1403006 |
CT140,RT140,TT14#..3FC,4F,4H,5F DARK BROWN,BROWN |
1 | ||
| 55547-1403001 |
CT140,RT140,TT14#..3FC,4F,4H,5F BLACK,BLACK |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-2003001 |
CT140,RT140,TT14#..DLX,STD,TAX BLACK,BLACK |
1 | ||
| 55548-2003006 |
CT140,RT140,TT14#..DLX,STD,TAX DARK BROWN,BROWN |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-2008006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55650-2008001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55650-2008004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2002006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55660-2002001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55660-2002004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-2001006 |
CT140,RT14#,ST141,TT14# SADDLE BROWN,BROWN |
1 | ||
| 55670-2001001 |
CT140,RT14#,ST141,TT14# BLACK,BLACK |
1 | ||
| 55670-2001004 |
CT140,RT14#,ST141,TT14#..SED BLUE,BLUE |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-14030 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-14030 |
CT14#,RT14#,ST141,TT14# |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2005006 |
CT140,RT14#,ST141,TT14# SADDLE BROWN,BROWN |
1 | ||
| 55961-2005004 |
CT140,RT14#,ST141,TT14#..SED BLUE,BLUE |
1 | ||
| 55961-2005001 |
CT140,RT14#,ST141,TT14# BLACK,BLACK |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2005001 |
CT140,RT14#,ST141,TT14# BLACK,BLACK |
1 | ||
| 55962-2005006 |
CT140,RT14#,ST141,TT14# SADDLE BROWN,BROWN |
1 | ||
| 55962-2005004 |
CT140,RT14#,ST141,TT14#..SED BLUE,BLUE |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-2002001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55981-2002004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55981-2002006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-2002004 |
CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
1 | ||
| 55982-2002001 |
CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
1 | ||
| 55982-2002006 |
CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90183-04005 | ||||
| 90183-05094 | ||||
| 90463-05001 | ||||
| 90468-04042 | ||||
| 90468-06043 | ||||
| 93540-55016 | ||||
| 93560-54012 | ||||
| 93567-55012 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
