CT140L-TEMTS (1982)
Toyota Corona Fr
Production
Jan 1982
-
Oct 1983
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8312)CT140..RHD ; (8201-8312)SED..3H,4H,5F..STD,TAX

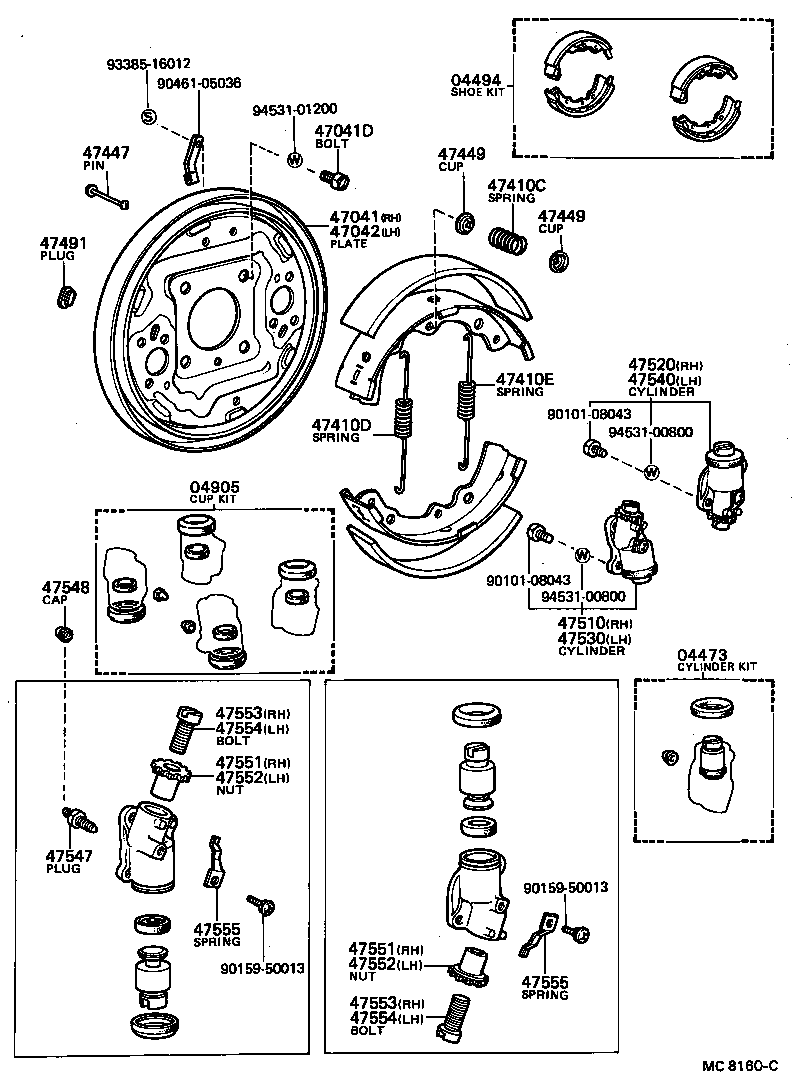

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-20051 |
CT140..TAX |
4 | ||
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-20110 |
CT140..TAX |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-20050 |
CT140..TAX |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-20100 |
CT140..TAX |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12043 |
CT140..TAX |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-20100 |
CT140..TAX |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-18017 |
CT140..TAX |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-20014 |
CT140..TAX |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-20014 |
CT140..TAX |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-30020 |
CT140..TAX |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
CT140..TAX |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
CT140..TAX |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-20020 |
CT140..TAX |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-29175 |
CT140..TAX |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-29105 |
CT140..TAX |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-29175 |
CT140..TAX |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-29105 |
CT140..TAX |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
CT140..TAX |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
CT140..TAX |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-20010 |
CT140..TAX |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-20010 |
CT140..TAX |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-20010 |
CT140..TAX |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-20010 |
CT140..TAX |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-20010 |
CT140..TAX |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-20010 |
CT140..TAX |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-20010 |
CT140..TAX |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-20010 |
CT140..TAX |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-20011 |
CT140..TAX |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-20011 |
CT140..TAX |
4 | ||
| Common parts | ||||
| 90101-08043 | ||||
| 90159-50013 | ||||
| 90461-05036 | ||||
| 93385-16012 | ||||
| 94531-00800 | ||||
| 94531-01200 | ||||
