CT140L-TEMTS (1982)
Toyota Corona Fr
Production
Jan 1982
-
Oct 1983
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8201-8312)1C

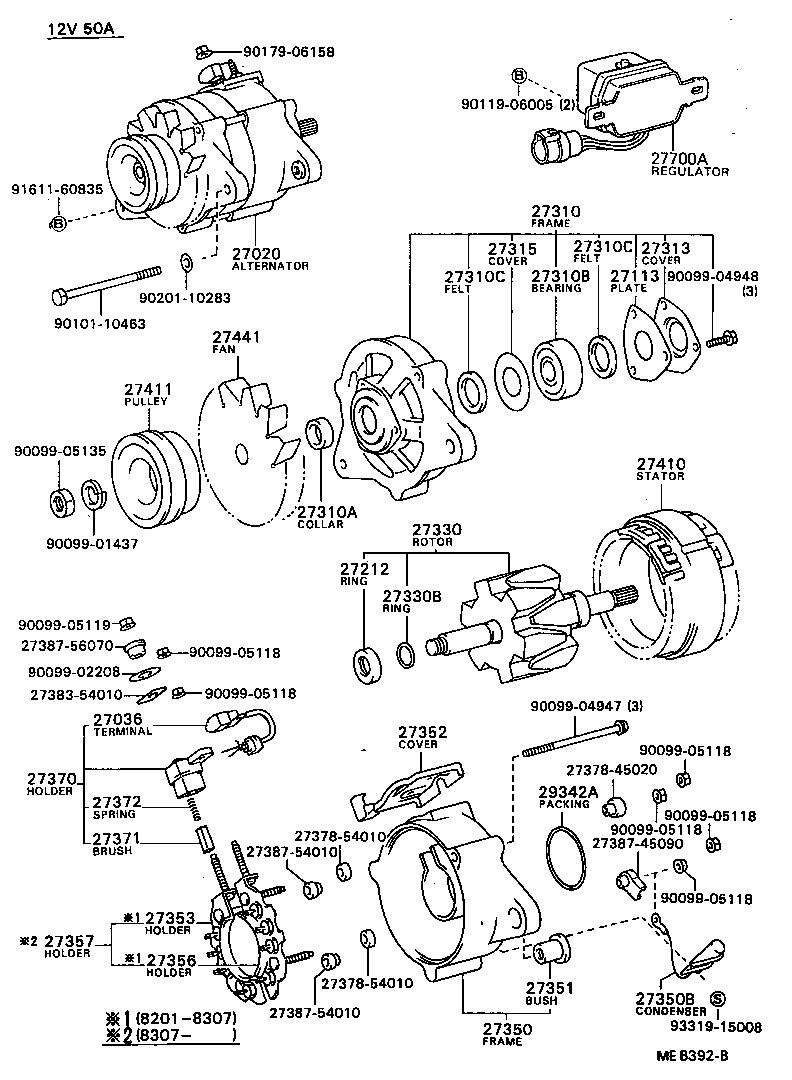

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-64020 |
1C..CT140 12V 50A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
1C..CT140 12V 50A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-57060 |
1C..CT140 12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
1C..CT140 12V 50A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64030 |
1C..CT140 12V 50A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
1C..CT140 12V 50A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
1C..CT140 12V 50A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
1C..CT140 12V 50A |
2 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02209 |
1C..CT140 12V 50A |
2 | ||
| 27313 - COVER, ALTERNATOR FELT, INNER NO.2 | ||||
| 27313-57060 |
1C..CT140 12V 50A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
1C..CT140 12V 50A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64010 |
1C..CT140 12V 50A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07103 |
1C..CT140 12V 50A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-64030 |
1C..CT140 12V 50A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52066 |
1C..CT140 12V 50A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-64010 |
1C..CT140 12V 50A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-64010 |
1C..CT140 12V 50A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-64020 |
1C..CT140 12V 50A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54060 |
1C..CT140 12V 50A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
1C..CT140 12V 50A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
1C..CT140 12V 50A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
1C..CT140 12V 50A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-64020 |
1C..CT140 12V 50A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64010 |
1C..CT140 12V 50A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
1C..CT140 12V 50A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63010 |
1C,2S,2T,3T..CT140,ST141,TT14# 12V 50A,55A |
1 | ||
| 29342A - PACKING, VACUUM PUMP | ||||
| 90099-14055 |
1C..CT140 12V 50A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04947 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10463 | ||||
| 90119-06005 | ||||
| 90179-06158 | ||||
| 90201-10283 | ||||
| 91611-60835 | ||||
| 93319-15008 | ||||
