CT140L-TEMTS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8312)1C ; (8601- )2C

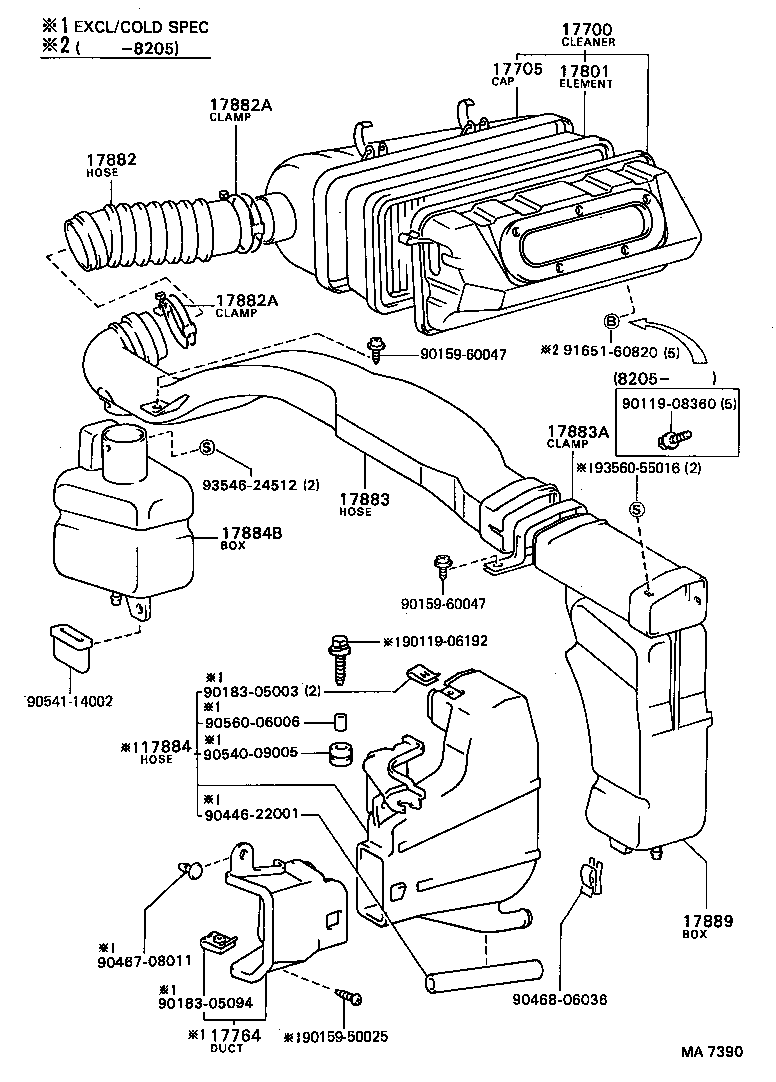

Click highlighted areas on diagram

diagram 17700 17705 17764 17801 17882 17882A 17882A 17883 17883A 17884 17884B 17889 9011906192 9011908360 9015950025 9015960047 9015960047 9018305003 9018305094 9044622001 9046708011 9046806036 9054009005 9054114002 9056006006 9165160820 9354624512 9356055016
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64020

1C..CT140

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64010

1C..CT140

 1
17764 - DUCT, AIR CLEANER
53299-14020

1C..CT140

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64020

1C..CT140

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-14050

1C..CT140

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10600

1C..CT140

AIR CLEANER SIDE

 1
90460-65001

1C..CT140

HOSE NO.3 SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10600

1C..CT140

AIR CLEANER SIDE

 1
90460-65001

1C..CT140

HOSE NO.3 SIDE

 1
17883 - HOSE, AIR CLEANER, NO.3
17882-14020

1C..CT140

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
17891-14010

1C..CT140

 1
17884 - HOSE, AIR CLEANER, NO.4
17883-14031

1C..CT140

 1
17884B - BOX, AIR CLEANER, NO.1
17884-14010

1C..CT140

 1
17889 - BOX, AIR CLEANER HOSE, NO.2
17889-14010

1C..CT140

 1
17889-14020

1C..CT140

COLD SPEC

 1
Common parts
90119-06192
90119-08360
90159-50025
90159-60047
90183-05003
90183-05094
90446-22001
90467-08011
90468-06036
90540-09005
90541-14002
90560-06006
91651-60820
93546-24512
93560-55016
