CT140L-TEMTS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8312)1C ; (8601- )2C

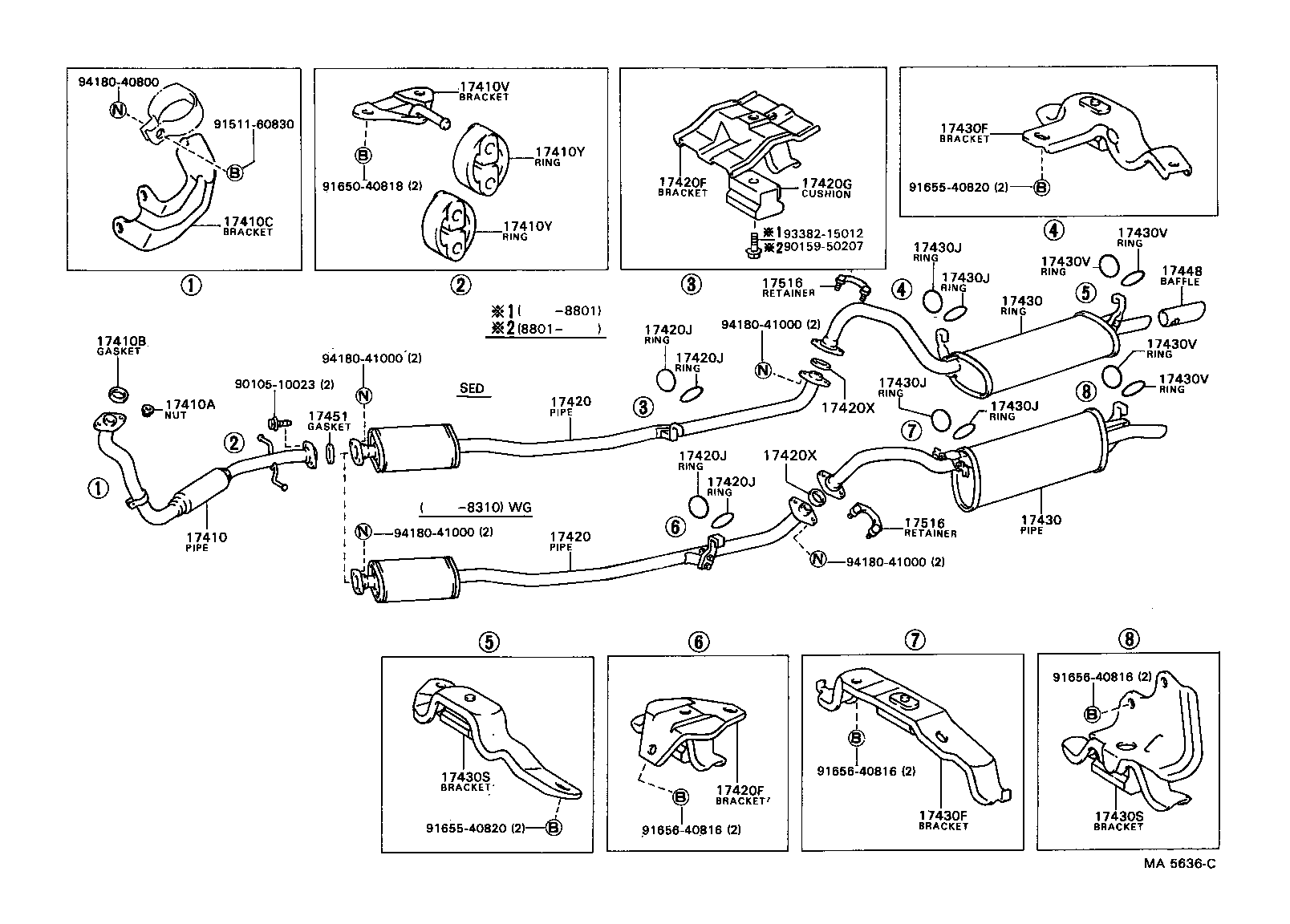

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410V 17410Y 17410Y 17420 17420 17420F 17420F 17420G 17420J 17420J 17420J 17420J 17420X 17420X 17430 17430 17430F 17430F 17430J 17430J 17430J 17430J 17430S 17430S 17430V 17430V 17430V 17430V 17448 17451 17516 17516 9010510023 9015950207 9151160830 9165040818 9165540820 9165540820 9165640816 9165640816 9165640816 9338215012 9418040800 9418041000 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64020

1C..CT140

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10028

12RM,1C,2SC,2T,3T..CT140,RT140,ST141,TT14#

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

12RM,1C..CT140,RT140

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64020

1C..CT140

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17504-64010

1C..CT140

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17505-64010

1C..CT140

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17505-64010

1C..CT140

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64020

1C..CT140..SED

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64020

1C..CT140..SED

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17506-26050

1C..CT140..SED

 1
17420F - BRACKET, EXHAUST PIPE, CENTER
17506-26050

1C..CT140..SED

 1
17420G - CUSHION, EXHAUST PIPE CENTER, CENTER
17591-36010

1C..CT140..SED

 1
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-34207

1C,2C,2SC..CT14#,ST141

 2
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-34207

1C,2C,2SC..CT14#,ST141

 2
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-34207

1C,2C,2SC..CT14#,ST141

 2
17420J - BOLT OR RING, EXHAUST PIPE CENTER
90301-34207

1C,2C,2SC..CT14#,ST141

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

1C..CT140

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

1C..CT140

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64010

1C..CT140..SED

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64010

1C..CT140..SED

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-26050

12RM,22REC,1C,2T,3T..CT140,RT14#,TT14#..SED

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-26050

12RM,22REC,1C,2T,3T..CT140,RT14#,TT14#..SED

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26100

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140..SED

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26100

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140..SED

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

12RM,22REC,1C,2C,2S#,2T,3T,2Y..CT14#,RT14#,ST141,TT14#,YT140

 2
17448 - BAFFLE, TAIL PIPE
17448-63010

1C..CT140..SED

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

1C,2SC..CT140,ST141

 1
17516 - RETAINER, EXHAUST PIPE, NO.2
17516-41010

1C..CT140

 1
17516 - RETAINER, EXHAUST PIPE, NO.2
17516-41010

1C..CT140

 1
Common parts
90105-10023
90159-50207
91511-60830
91650-40818
91655-40820
91656-40816
93382-15012
94180-40800
94180-41000
