CT140L-TEMTS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8312)1C ; (8601-8906)2C

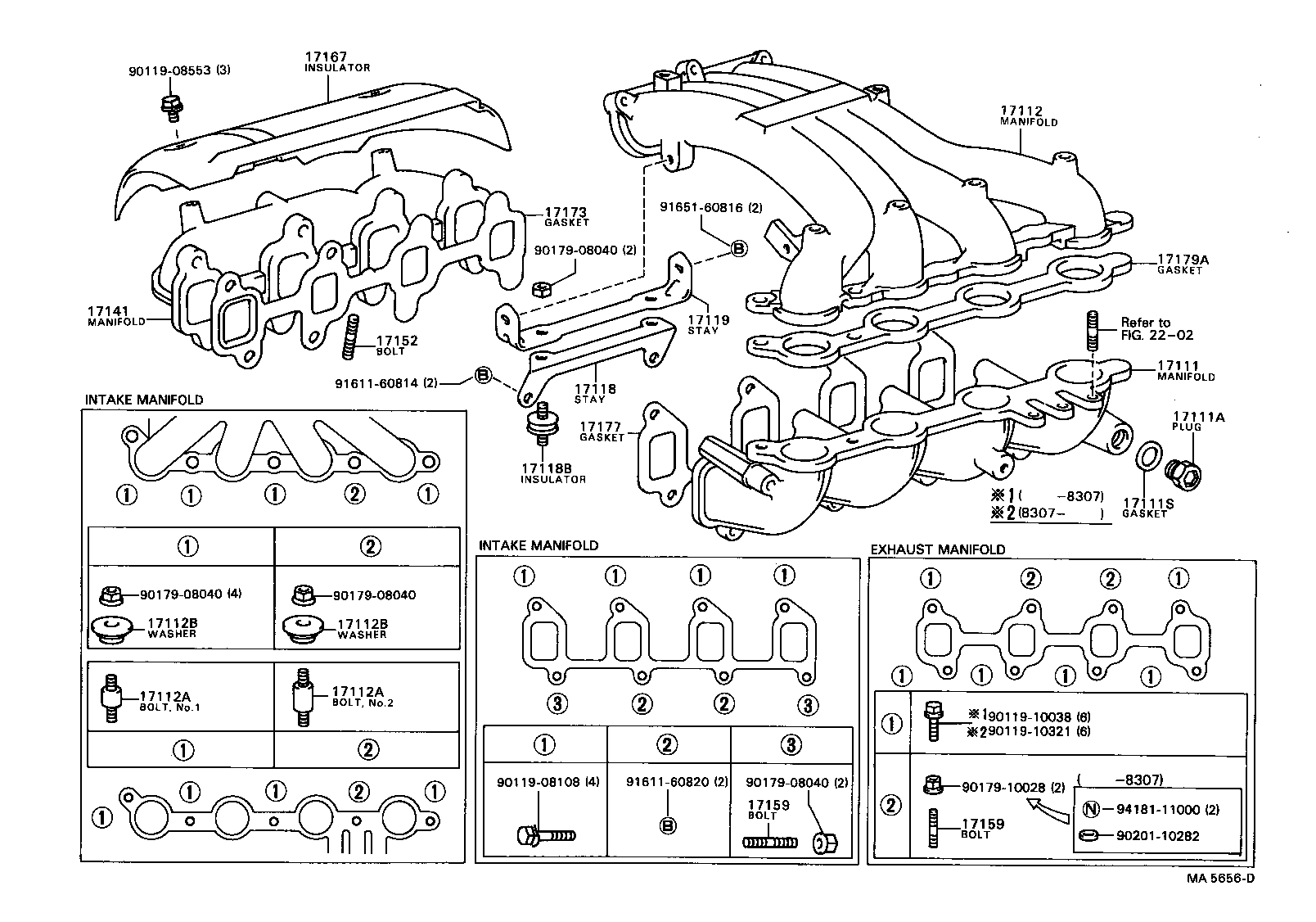

Click highlighted areas on diagram

diagram 17111 17111A 17111S 17112 17112A 17112A 17112B 17112B 17118 17118B 17119 17141 17152 17159 17159 17167 17173 17177 17179A 2202 9011908108 9011908553 9011910038 9011910321 9017908040 9017908040 9017908040 9017908040 9017910028 9020110282 9161160814 9161160820 9165160816 9418111000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-64010

1C..CT140

 1
17111A - PLUG, NO.1
90341-18006

1C..CT140

 1
17111S - GASKET(FOR MANIFOLD PLUG)
90430-18001

1C..CT140

 1
17112 - MANIFOLD, INTAKE, NO.2
17112-64010

1C..CT140

 1
17112A - BOLT, STUD(FOR INTAKE MANIFOLD NO.2 SET)
90116-08148

1C..CT140

NO.1

 4
90116-08149

1C..CT140

NO.2

 1
17112A - BOLT, STUD(FOR INTAKE MANIFOLD NO.2 SET)
90116-08148

1C..CT140

NO.1

 4
90116-08149

1C..CT140

NO.2

 1
17112B - WASHER, SEAL(FOR INTAKE MANIFOLD NO.2 SET)
90210-08021

1C..CT140

 5
17112B - WASHER, SEAL(FOR INTAKE MANIFOLD NO.2 SET)
90210-08021

1C..CT140

 5
17118 - STAY, MANIFOLD
17118-64010

1C..CT140

 1
17118B - INSULATOR, INTAKE MANIFOLD
17853-64010

1C..CT140

 2
17119 - STAY, MANIFOLD, NO.2
17139-64010

1C..CT140

 1
17141 - MANIFOLD, EXHAUST
17141-64010

1C..CT140

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1C,2C..CT14#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

1C..CT140

INTAKE MANIFOLD

 2
92122-61032

1C..CT140

EXHAUST MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

1C..CT140

INTAKE MANIFOLD

 2
92122-61032

1C..CT140

EXHAUST MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64020

1C..CT140

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-64020

1C..CT140

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64010

1C..CT140

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-64020

1C..CT140

 1
Common parts
90119-08108
90119-08553
90119-10038
90119-10321
90179-08040
90179-10028
90201-10282
91611-60814
91611-60820
91651-60816
94181-11000
Linked diagrams
2202
