CT140L-TEMTS (1982)
Toyota Corona Fr

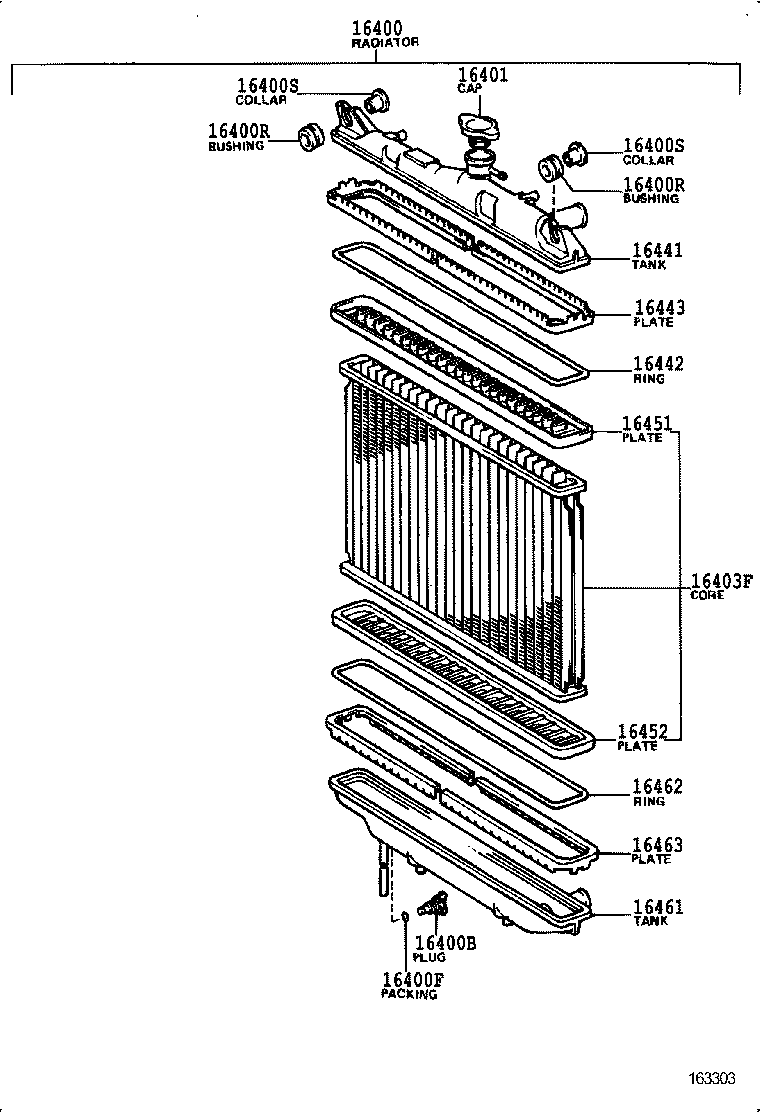

ILLUST NO. 2 OF 2(8201-8508)1C ; (8601-8811)2C ; (8811- )2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-37090 |
1C..CT140 |
1 | ||
| 16400-37090 |
1C..CT140 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1C,2C..CT14# SINGLE CORE |
1 | ||
| 23322-54010 |
1C,2C..CT14# SINGLE CORE |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1C,2C..CT14# |
1 | ||
| 96711-19007 |
1C,2C..CT14# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
1C,2C..CT14# SINGLE CORE |
2 | ||
| 16444-35070 |
1C,2C..CT14# SINGLE CORE |
2 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
1C,2C..CT14# SINGLE CORE |
2 | ||
| 16444-35070 |
1C,2C..CT14# SINGLE CORE |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
1C,2C..CT14# SINGLE CORE |
2 | ||
| 16445-35070 |
1C,2C..CT14# SINGLE CORE |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
1C,2C..CT14# SINGLE CORE |
2 | ||
| 16445-35070 |
1C,2C..CT14# SINGLE CORE |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1C,2C..CT14# SINGLE CORE |
1 | ||
| 16401-63010 |
1C,2C..CT14# SINGLE CORE |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-37090 |
1C..CT140 |
1 | ||
| 16403-37090 |
1C..CT140 |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-35070 |
1C..CT140 |
1 | ||
| 16441-35070 |
1C..CT140 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-35070 |
1C..CT140 |
1 | ||
| 16442-35070 |
1C..CT140 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-35070 |
1C..CT140 |
2 | ||
| 16443-35070 |
1C..CT140 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-35070 |
1C..CT140 |
1 | ||
| 16451-35070 |
1C..CT140 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-35070 |
1C..CT140 |
1 | ||
| 16452-35070 |
1C..CT140 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-35070 |
1C..CT140 |
1 | ||
| 16461-35070 |
1C..CT140 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-35070 |
1C..CT140 |
1 | ||
| 16462-35070 |
1C..CT140 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-35070 |
1C..CT140 |
2 | ||
| 16463-35070 |
1C..CT140 |
2 | ||

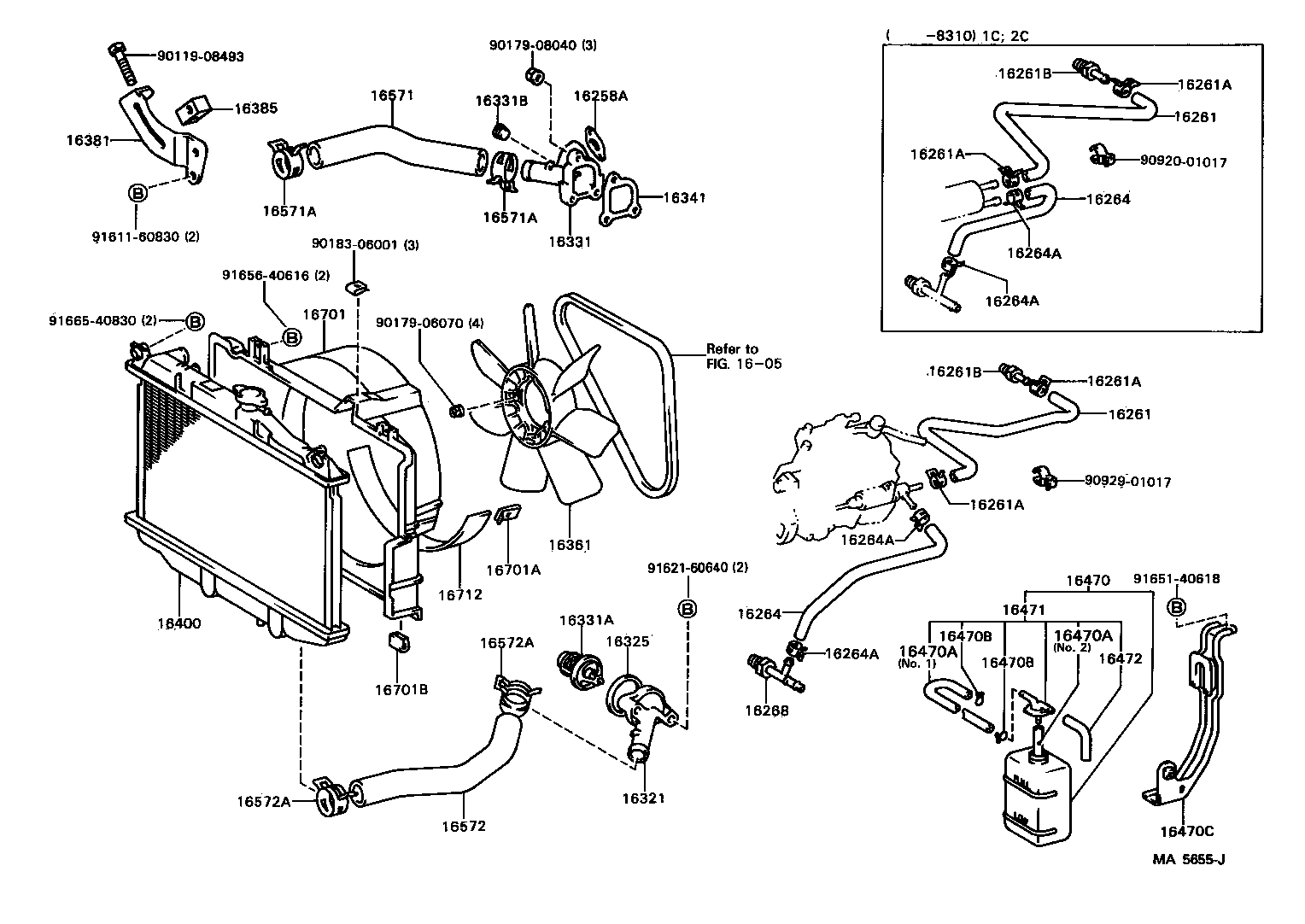

ILLUST NO. 1 OF 2(8201-8312)1C ; (8601- )2C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-64010 |
1C..CT140 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64010 |
1C..CT140 |
1 | ||
| 16261-64011 |
1C..CT140 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64010 |
1C..CT140 |
1 | ||
| 16261-64011 |
1C..CT140 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1C..CT140 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1C..CT140 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1C..CT140 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1C..CT140 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53042 |
1C..CT140 |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53042 |
1C..CT140 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64010 |
1C..CT140 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64010 |
1C..CT140 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1C..CT140 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1C..CT140 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1C..CT140 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1C..CT140 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 87208-20150 |
1C..CT140 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-64010 |
1C..CT140 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1C,2C..CT14# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64010 |
1C..CT140 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1C,2C..CT14# *WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53007 |
1C..CT140 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64010 |
1C..CT140 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
1C..CT140 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64011 |
1C..CT140 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
1C..CT140 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37090 |
1C..CT140 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64010 |
1C..CT140 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1C,2C..CT14# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1C,2C..CT14# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64010 |
1C..CT140 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C..CT140 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1C..CT140 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-64010 |
1C..CT140 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1C,2C..CT14# RADIATOR SINGLE CORE,W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1C,2C..CT14# RADIATOR SINGLE CORE |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
1C,2C..CT14# W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08493 | ||||
| 90179-06070 | ||||
| 90179-08040 | ||||
| 90183-06001 | ||||
| 90920-01017 | ||||
| 90929-01017 | ||||
| 91611-60830 | ||||
| 91621-60640 | ||||
| 91651-40618 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
