CT140L-TEMTS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8312)1C ; (8601- )2C

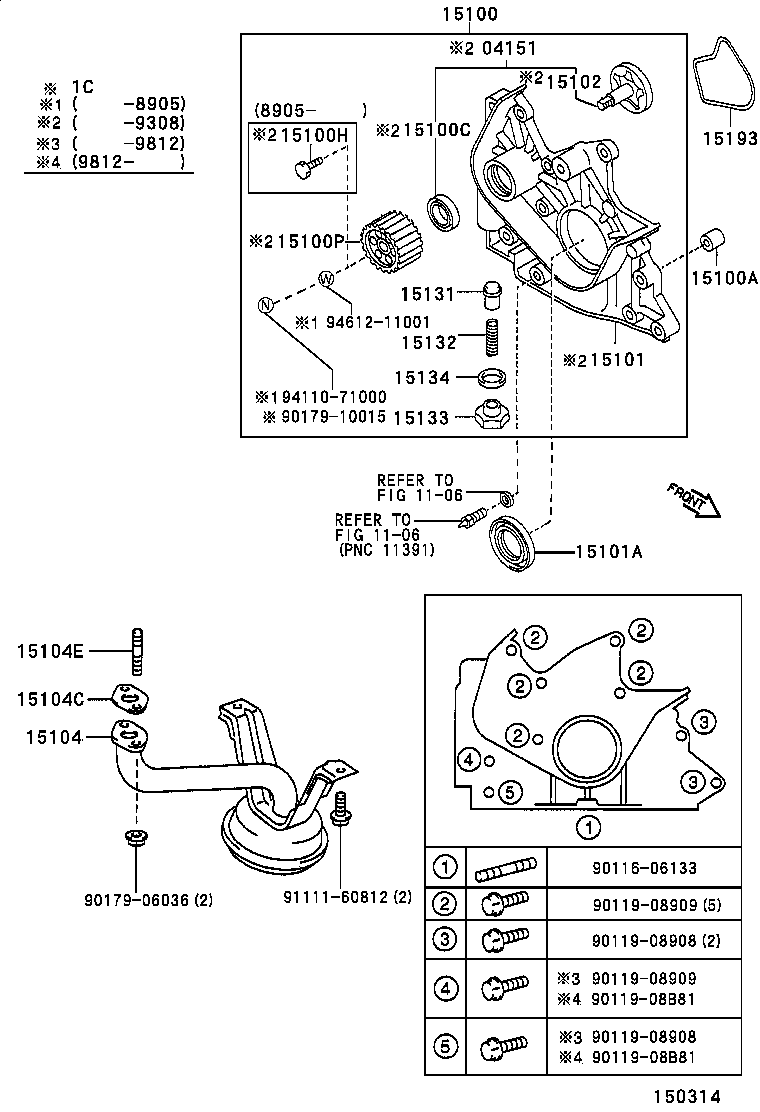

Click highlighted areas on diagram

diagram 04151 1106 1106 15100 15100A 15100C 15100H 15100P 15101 15101A 15102 15104 15104C 15104E 15131 15132 15133 15134 15193 9011606133 9011908908 9011908908 9011908909 9011908909 9011908B81 9011908B81 9017906036 9017910015 9111160812 9411071000 9461211001
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-64010

1C..CT140

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

1C..CT140

 2
15100C - SEAL(FOR OIL PUMP)
15165-64010

1C..CT140

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-64010

1C..CT140

 1
15101 - BODY SUB-ASSY, OIL PUMP
15101-64010

1C..CT140

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42003

1C..CT140

 1
15102 - ROTOR SET, OIL PUMP
15102-64010

1C..CT140

 1
15104 - STRAINER SUB-ASSY, OIL
15104-64010

1C..CT140

 1
15104C - GASKET(FOR OIL STRAINER)
15149-64010

1C..CT140

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90116-06032

1C..CT140

 2
15131 - VALVE, OIL PUMP RELIEF
15131-22010

1C..CT140

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-76011

1C..CT140

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

1C..CT140

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

1C..CT140

 1
15193 - GASKET, OIL PUMP
15193-64020

1C..CT140

 1
Common parts
90116-06133
90119-08908
90119-08909
90119-08B81
90179-06036
90179-10015
91111-60812
94110-71000
94612-11001
Linked diagrams
1106
