CT140L-TEMTS (1982)

Toyota Corona Fr

Production Jan 1982 - Oct 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8201-8312)1C ; (8601- )2C

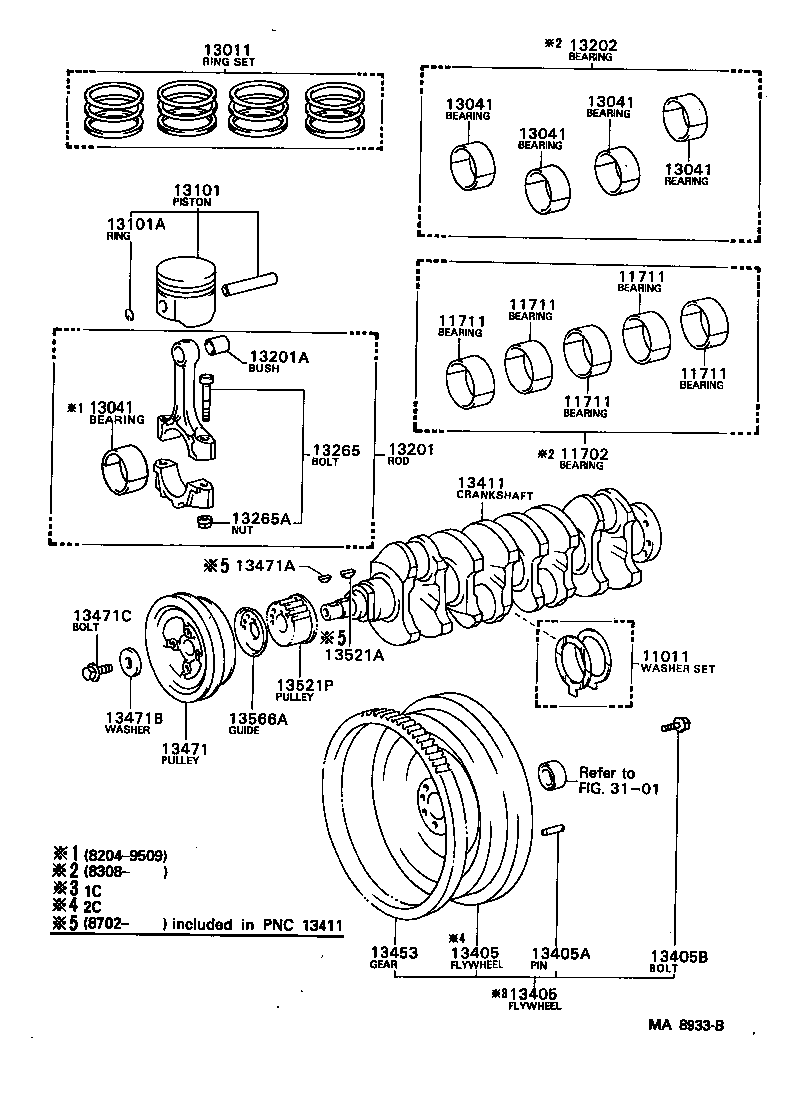

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405 13405A 13405B 13411 13453 13471 13471A 13471B 13471C 13521A 13521P 13566A 3101
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11012-64010

1C..CT140

O/S 0.125,O/S 0.125

 1
11011-64010

1C..CT140

STD,STD

 1
11013-64010

1C..CT140

O/S 0.250,O/S 0.250

 1
11711 - BEARING, CRANKSHAFT
11701-6401002

1C..CT140

MARK"2",MARK 2

 5
11701-6401001

1C..CT140

MARK"1",MARK 1

 5
11701-6401003

1C..CT140

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-6401002

1C..CT140

MARK"2",MARK 2

 5
11701-6401001

1C..CT140

MARK"1",MARK 1

 5
11701-6401003

1C..CT140

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-6401002

1C..CT140

MARK"2",MARK 2

 5
11701-6401001

1C..CT140

MARK"1",MARK 1

 5
11701-6401003

1C..CT140

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-6401002

1C..CT140

MARK"2",MARK 2

 5
11701-6401001

1C..CT140

MARK"1",MARK 1

 5
11701-6401003

1C..CT140

MARK"3",MARK 3

 5
11711 - BEARING, CRANKSHAFT
11701-6401002

1C..CT140

MARK"2",MARK 2

 5
11701-6401001

1C..CT140

MARK"1",MARK 1

 5
11701-6401003

1C..CT140

MARK"3",MARK 3

 5
13011 - RING SET, PISTON
13011-64070

1C..CT140..TAX

STD

 1
13013-64040

1C..CT140..TAX

O/S 0.50

 1
13011-64040

1C..CT140..TAX

STD

 1
13013-64070

1C..CT140..TAX

O/S 0.50

 1
13041 - BEARING, CONNECTING ROD
13041-6401002

1C..CT140

MARK"2",MARK 2

 4
13041-6401003

1C..CT140

MARK"3",MARK 3

 4
13041-6401001

1C..CT140

MARK"1",MARK 1

 4
13041 - BEARING, CONNECTING ROD
13041-6401002

1C..CT140

MARK"2",MARK 2

 4
13041-6401003

1C..CT140

MARK"3",MARK 3

 4
13041-6401001

1C..CT140

MARK"1",MARK 1

 4
13041 - BEARING, CONNECTING ROD
13041-6401002

1C..CT140

MARK"2",MARK 2

 4
13041-6401003

1C..CT140

MARK"3",MARK 3

 4
13041-6401001

1C..CT140

MARK"1",MARK 1

 4
13041 - BEARING, CONNECTING ROD
13041-6401002

1C..CT140

MARK"2",MARK 2

 4
13041-6401003

1C..CT140

MARK"3",MARK 3

 4
13041-6401001

1C..CT140

MARK"1",MARK 1

 4
13041 - BEARING, CONNECTING ROD
13041-6401002

1C..CT140

MARK"2",MARK 2

 4
13041-6401003

1C..CT140

MARK"3",MARK 3

 4
13041-6401001

1C..CT140

MARK"1",MARK 1

 4
13101 - PISTON SUB-ASSY, W/PIN
13103-64040

1C..CT140..TAX

O/S 0.50

 4
13101-64040

1C..CT140..TAX

STD

 4
13103-64020

1C..CT140..TAX

O/S 0.50

 4
13101-64020

1C..CT140..TAX

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-29003

1C..CT140

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-64010

1C..CT140

 4
13201-69025

1C..CT140

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73091

1C..CT140

 4
13265 - BOLT, CONNECTING ROD
13265-49015

1C..CT140

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-10042

1C..CT140

 8
13405 - FLYWHEEL SUB-ASSY
13405-69045

1C..CT140

 1
13405-69046

1C..CT140

 1
13405 - FLYWHEEL SUB-ASSY
13405-69045

1C..CT140

 1
13405-69046

1C..CT140

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

1C,2C..CT14#

L=23,OD=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10056

1C..CT140

 8
13411 - CRANKSHAFT
13411-64010

1C..CT140

 1
13453 - GEAR, FLYWHEEL RING
13453-64010

1C..CT140

 1
13471 - PULLEY, CRANKSHAFT
13408-64011

1C..CT140

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
95161-20516

1C..CT140

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90201-14007

1C..CT140

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
91511-61435

1C..CT140

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-20622

1C..CT140

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-64010

1C..CT140

 1
13566A - GUIDE, TIMING BELT
13566-64010

1C..CT140

 1
