XT130RG-TWKRSQ (1979)
Toyota Corona
Production
Aug 1979
-
Jan 1983
Engine
1X
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

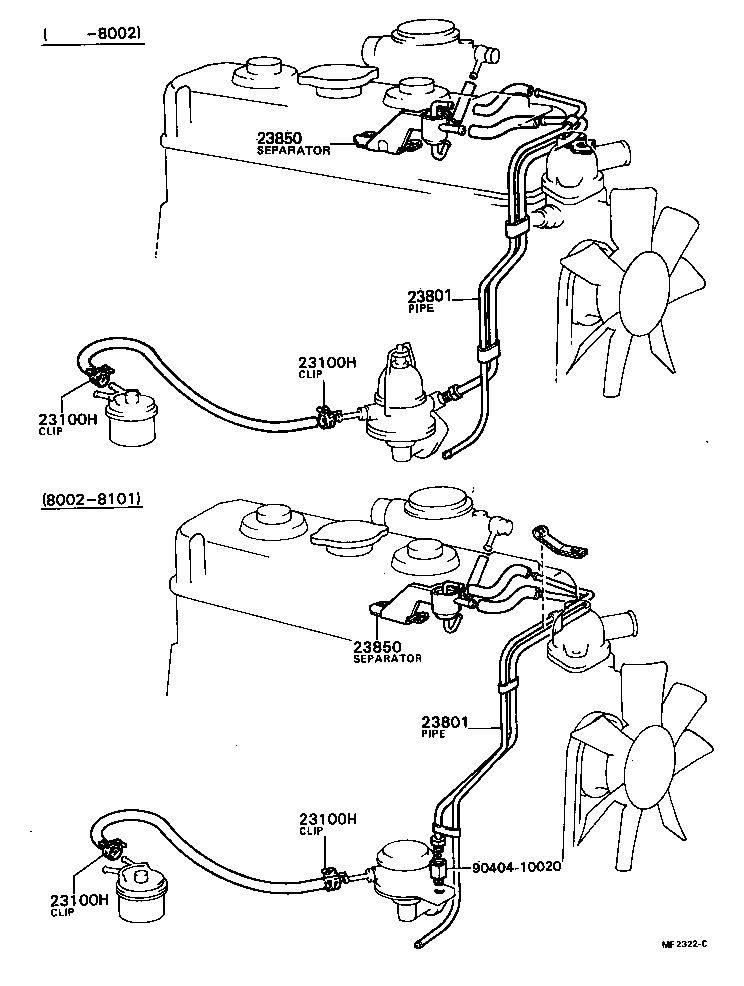

(7908-8101)1X
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
1X..XT130 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
1X..XT130 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
1X..XT130 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
1X..XT130 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23810-32040 |
1X..XT130 |
1 | ||
| 23810-32021 |
1X..XT130 |
1 | ||
| 23810-32020 |
1X..XT130 |
1 | ||
| 23810-32041 |
1X..XT130 |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23810-32040 |
1X..XT130 |
1 | ||
| 23810-32021 |
1X..XT130 |
1 | ||
| 23810-32020 |
1X..XT130 |
1 | ||
| 23810-32041 |
1X..XT130 |
1 | ||
| 23850 - SEPARATOR ASSY, FUEL VAPOR | ||||
| 23850-32011 |
1X..XT130 |
1 | ||
| 23850-32010 |
1X..XT130 |
1 | ||
| 23850-32020 |
1X..XT130 |
1 | ||
| 23850 - SEPARATOR ASSY, FUEL VAPOR | ||||
| 23850-32010 |
1X..XT130 |
1 | ||
| 23850-32011 |
1X..XT130 |
1 | ||
| 23850-32020 |
1X..XT130 |
1 | ||
| Common parts | ||||
| 90404-10020 | ||||

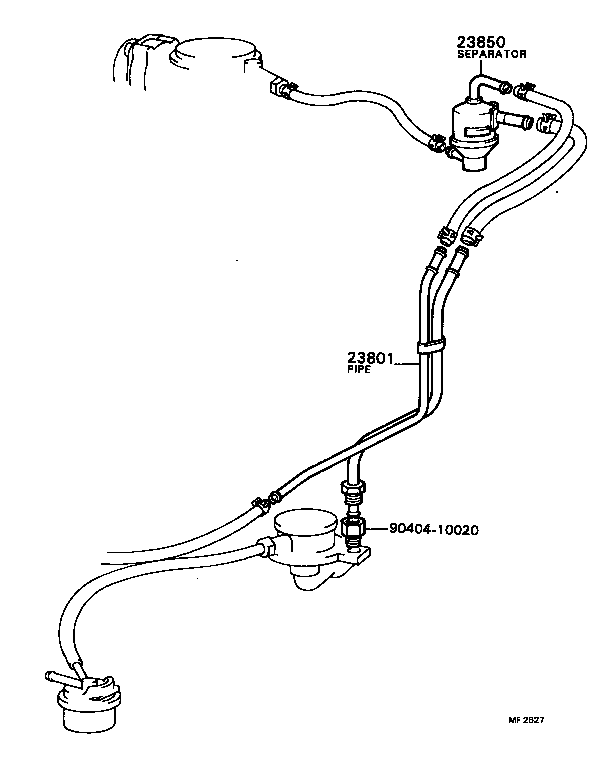

(8101- )1X
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23810-32040 |
1X..XT130 |
1 | ||
| 23810-32021 |
1X..XT130 |
1 | ||
| 23810-32020 |
1X..XT130 |
1 | ||
| 23810-32041 |
1X..XT130 |
1 | ||
| 23850 - SEPARATOR ASSY, FUEL VAPOR | ||||
| 23850-32011 |
1X..XT130 |
1 | ||
| 23850-32010 |
1X..XT130 |
1 | ||
| 23850-32020 |
1X..XT130 |
1 | ||
| Common parts | ||||
| 90404-10020 | ||||
