XT130RG-TWHRSQ (1979)

Toyota Corona

Production Aug 1979 - Jan 1983
Engine 1X
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908- )1X

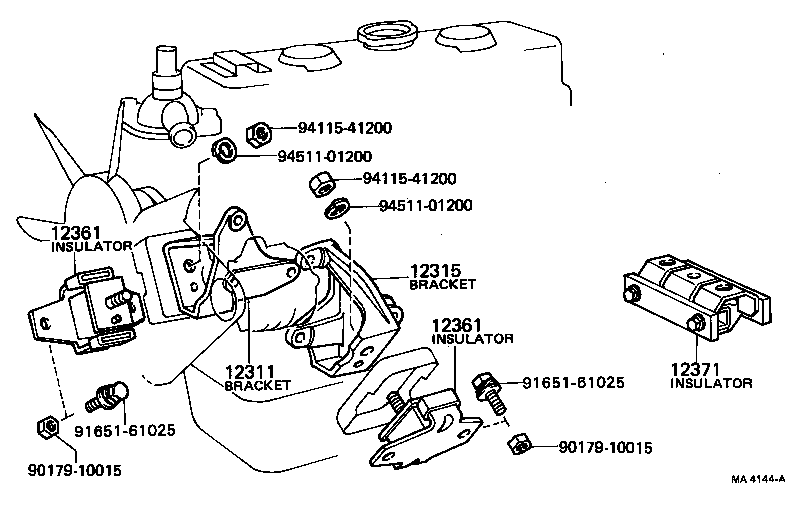

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9017910015 9017910015 9165161025 9165161025 9411541200 9411541200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-32010

1X..XT130

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-32010

1X..XT130

 1
12315-32011

1X..XT130

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-32010

1X..XT130

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-32010

1X..XT130

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-32020

1X..XT130..3FC

 1
Common parts
90179-10015
91651-61025
94115-41200
94511-01200
