XT130R-TEHRSQ (1979)

Toyota Corona

Production Aug 1979 - Jan 1983
Engine 1X
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8008)TT132..LB,SED..5F..GEN ; (8008- )XT130 ; (8008- )DLX..LNK..GEN,PHL

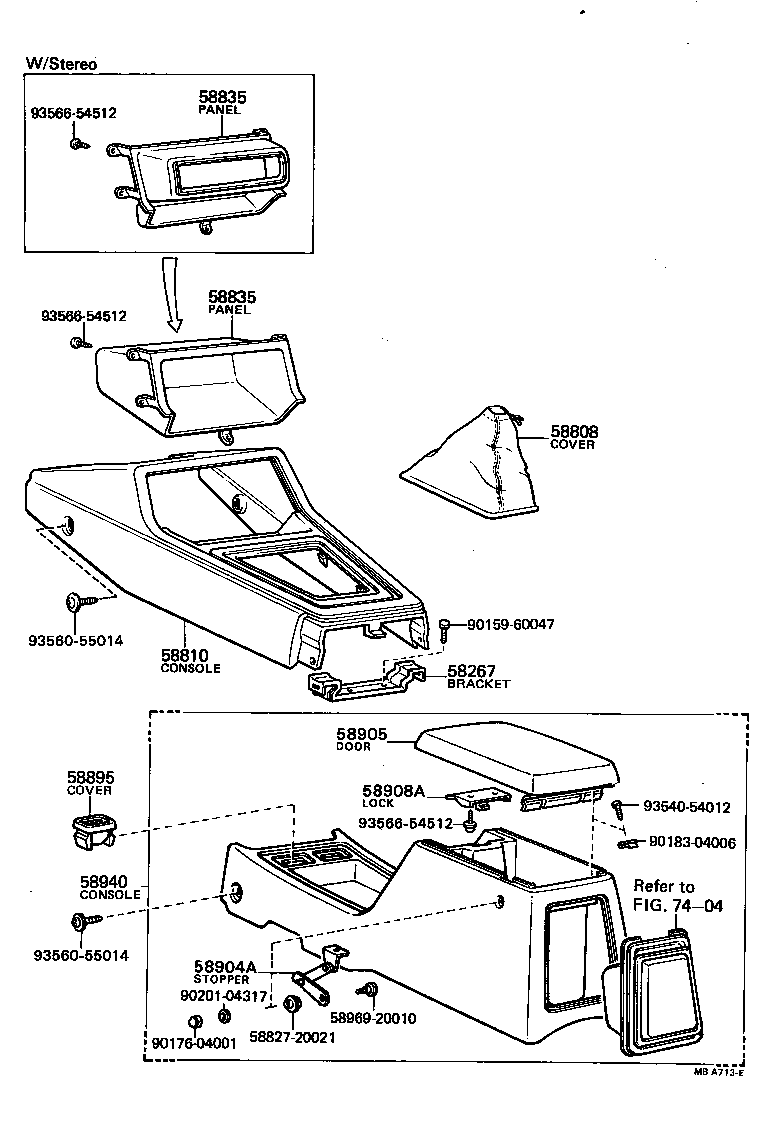

Click highlighted areas on diagram

diagram 58267 58808 58810 5882720021 58835 58835 58895 58904A 58905 58908A 58940 5896920010 7404 9015960047 9017604001 9018304006 9020104317 9354054012 9356055014 9356055014 9356654512 9356654512 9356654512
Part # Description Qty Price
58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER
58996-20010

XT130;TT132..3FC..STD;RT13#,TT13#..DLX,GL

 1
58996-20010

RT13#..LNK;TT13#,XT130

 1
58810 - CONSOLE ASSY
58811-2014005

XT130;TT132..(LB,SED)..5F..GEN

FULL CONSOLE,BEIGE,BEIGE,TRIM4#

 1
58811-2014002

XT130;TT132..(LB,SED)..5F..GEN

FULL CONSOLE,DARK WINE,RED/MAROON,TRIM3#

 1
58811-2013005

RT13#,TT13#,XT130..DLX,STD

BEIGE,BEIGE,TRIM4#

 1
58811-2013005

XT130

BEIGE,BEIGE,TRIM4#

 1
58811-2014001

XT130;TT132..(LB,SED)..5F..GEN

FULL CONSOLE,BLACK,BLACK,TRIM2#

 1
58811-2013002

XT130..LNK

DARK WINE,RED/MAROON,TRIM3#

 1
58811-2013001

RT13#,TT13#,XT130..DLX,STD

BLACK,BLACK,TRIM2#

 1
58811-2013002

RT13#,TT13#,XT130..(HT,LB,SED)..(DLX,STD)

DARK WINE,RED/MAROON,TRIM3#

 1
58811-2013001

XT130

BLACK,BLACK,TRIM2#

 1
58811-2015001

RT133,XT130..STD

BLACK,BLACK,TRIM2#

 1
58811-2015002

RT133,XT130..STD..LNK

DARK WINE,RED/MAROON,TRIM3#

 1
58811-2015006

RT133,XT130..STD

LIGHT BROWN,BROWN,TRIM4#

 1
58835 - PANEL, CONSOLE, UPPER
58821-20020

XT130

W/STEREO

 1
58821-20030

XT130;TT132..(LB,SED)..5F..GEN

W/O STEREO

 1
58821-20010

XT130;TT132..3FC..STD;RT13#,TT13#..DLX

 1
58821-20010

XT130

 1
58821-20020

XT130;TT132..DLX..GEN;TT132..3FC..STD;TT132..LHD..4F..STD..LNK;RT13#,TT133..MTM..(DLX,GL)

W/STEREO

 1
58821-20040

XT130;TT132..(LB,SED)..5F..GEN

W/STEREO,FULL CONSOLE

 1
58821-2006002

XT130..LNK

DARK WINE,RED/MAROON,TRIM3#

 1
58821-2007002

RT133,XT130..STD..LNK

W/STEREO,DARK WINE,RED/MAROON,TRIM3#

 1
58821-2006001

XT130

BLACK,BLACK,TRIM2#

 1
58821-2006006

XT130

DARK BROWN,BROWN,TRIM4#

 1
58821-2007006

RT133,XT130..STD

W/STEREO,DARK BROWN,BROWN,TRIM4#

 1
58821-2007001

RT133,XT130..STD

W/STEREO,BLACK,BLACK,TRIM2#

 1
58835 - PANEL, CONSOLE, UPPER
58821-20020

XT130

W/STEREO

 1
58821-20030

XT130;TT132..(LB,SED)..5F..GEN

W/O STEREO

 1
58821-20010

XT130;TT132..3FC..STD;RT13#,TT13#..DLX

 1
58821-20010

XT130

 1
58821-20020

XT130;TT132..DLX..GEN;TT132..3FC..STD;TT132..LHD..4F..STD..LNK;RT13#,TT133..MTM..(DLX,GL)

W/STEREO

 1
58821-20040

XT130;TT132..(LB,SED)..5F..GEN

W/STEREO,FULL CONSOLE

 1
58821-2006002

XT130..LNK

DARK WINE,RED/MAROON,TRIM3#

 1
58821-2007002

RT133,XT130..STD..LNK

W/STEREO,DARK WINE,RED/MAROON,TRIM3#

 1
58821-2006001

XT130

BLACK,BLACK,TRIM2#

 1
58821-2006006

XT130

DARK BROWN,BROWN,TRIM4#

 1
58821-2007006

RT133,XT130..STD

W/STEREO,DARK BROWN,BROWN,TRIM4#

 1
58821-2007001

RT133,XT130..STD

W/STEREO,BLACK,BLACK,TRIM2#

 1
58895 - COVER, SWITCH HOLE, NO.1
58896-20011

RT133,XT130..STD

 2
58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58904-22020

XT130;RT130,133..LHD..LNK;TT13#..DLX..LNK..GEN

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2003005

XT130

BEIGE,BEIGE,TRIM4#

 1
58905-2003002

XT130;RT130,133..LHD..LNK;TT13#..DLX..LNK..GEN

DARK WINE,RED/MAROON,TRIM3#

 1
58905-2003001

XT130;RT130,133..LHD..LNK;TT13#..DLX..LNK..GEN

BLACK,BLACK,TRIM2#

 1
58905-2003006

XT130

LIGHT BROWN,BROWN,TRIM4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58803-20010

XT130;RT130,133..LHD..LNK;TT13#..DLX..LNK..GEN

 1
Common parts
58827-20021
58969-20010
90159-60047
90176-04001
90183-04006
90201-04317
93540-54012
93560-55014
93566-54512
Linked diagrams
7404
