TT133L-TEKRSY (1979)

Toyota Corona

Production Aug 1979 - Aug 1981
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)2T,3T

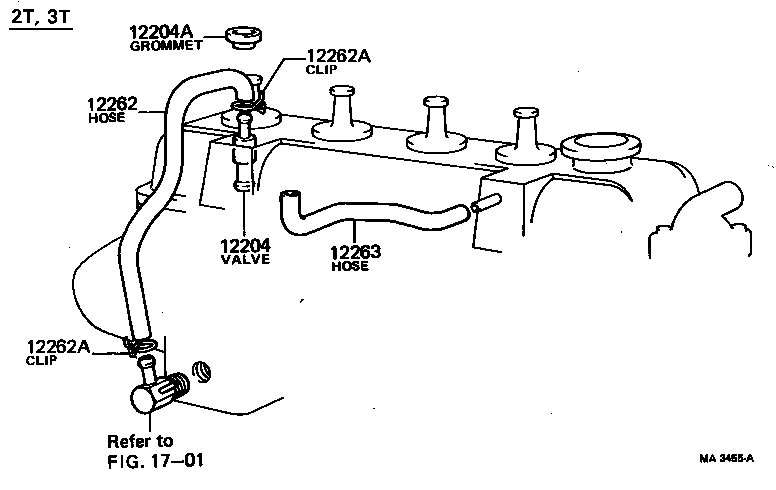

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263 1701
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15020

2T,3T..TT13#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

2T,3T..TT13#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

2T,3T..TT13#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

2T,3T..TT13#

 2
12263 - HOSE, VENTILATION, NO.3
12262-25010

2T,3T..TT13#

 1
Linked diagrams
1701
