TT132RG-TWKRS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008) ; (8008-8111)XT130

Click highlighted areas on diagram

diagram 52053 52105 52105 52106 52106 52111 52111 52502 52502 52503 52503 9011208020 9011208020 9017906115 9017906115 9017906115 9017906115 9017906115 9017908123 9017908123 9017908123 9165661032 9165661032 9418040800 9418040800
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-29045

RT13#,TT13#,XT130..ARL,EUR,GEN

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-20060

RT13#,TT13#,XT130

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-20060

RT13#,TT13#,XT130

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-20040

RT13#,TT13#,XT130

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-20040

RT13#,TT13#,XT130

 1
52111 - BUMPER ASSY, FRONT
52111-29355

RT13#,TT13#,XT130..DLX,STD

 1
52111-29365

RT13#,TT13#,XT130..ARL,EUR,GEN

W/PAD

 1
52111 - BUMPER ASSY, FRONT
52111-29355

RT13#,TT13#,XT130..DLX,STD

 1
52111-29365

RT13#,TT13#,XT130..ARL,EUR,GEN

W/PAD

 1
52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH
52102-29045

RT13#,TT13#,XT130

 1
52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH
52102-29045

RT13#,TT13#,XT130

 1
52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH
52103-29145

RT13#,TT13#,XT130

 1
52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH
52103-29145

RT13#,TT13#,XT130

 1
Common parts
90112-08020
90179-06115
90179-08123
91656-61032
94180-40800

(8008- )RT13#,TT13#

Click highlighted areas on diagram

diagram 52053 52053 52105 52105 52106 52106 52111 52111 52112D 52112D 52113D 52113D 9011208020 9011208020 9011906092 9011906092 9011912199 9011912199 9017906115 9017906115 9017906115 9017906115 9046804018 9165561030 9165561030 9418040800 9418040800 9418040800
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-29045

RT13#,TT13#,XT130..ARL,EUR,GEN

 1
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-29045

RT13#,TT13#,XT130..ARL,EUR,GEN

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-20060

RT13#,TT13#,XT130

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-20060

RT13#,TT13#,XT130

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-20040

RT13#,TT13#,XT130

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-20040

RT13#,TT13#,XT130

 1
52111 - BUMPER ASSY, FRONT
52111-29355

RT13#,TT13#,XT130..DLX,STD

 1
52111-29365

RT13#,TT13#,XT130..ARL,EUR,GEN

W/PAD

 1
52111 - BUMPER ASSY, FRONT
52111-29355

RT13#,TT13#,XT130..DLX,STD

 1
52111-29365

RT13#,TT13#,XT130..ARL,EUR,GEN

W/PAD

 1
Common parts
90112-08020
90119-06092
90119-12199
90179-06115
90468-04018
91655-61030
94180-40800

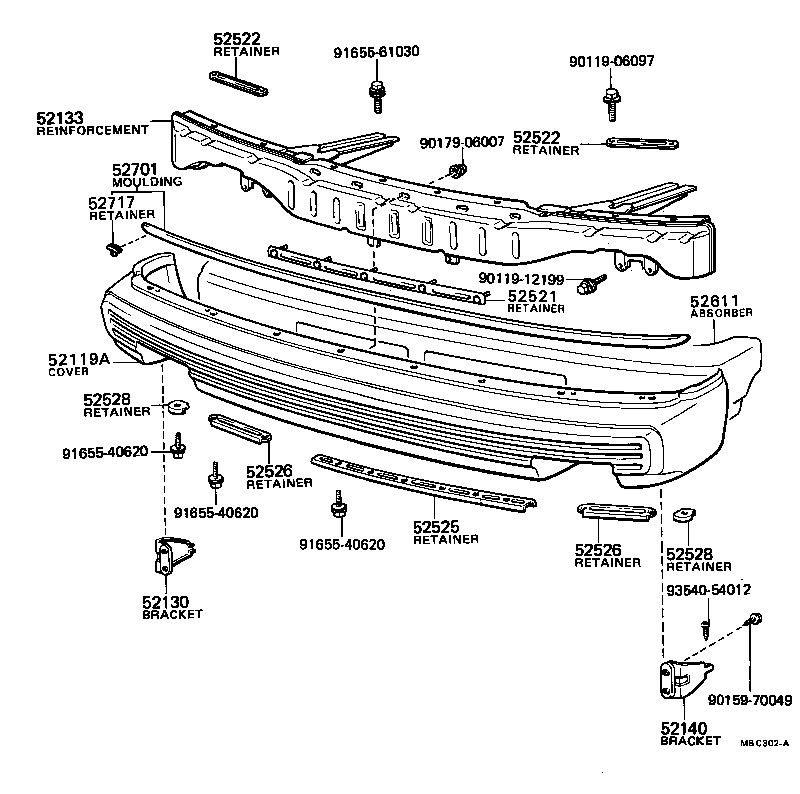

(7906-8008)HT,LB..5F..GEN ; (7912-8008)RT132..HT; (7912-8008)RT130..SED ; (7912-80

Click highlighted areas on diagram

diagram 52119A 52130 52133 52140 52521 52522 52522 52525 52526 52526 52528 52528 52611 52701 52717 9011906097 9011912199 9015970049 9017906007 9165540620 9165540620 9165540620 9165561030 9354054012
Part # Description Qty Price
Common parts
90119-06097
90119-12199
90159-70049
90179-06007
91655-40620
91655-61030
93540-54012
