TT132R-TSMDS (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 3T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8112)TT13#

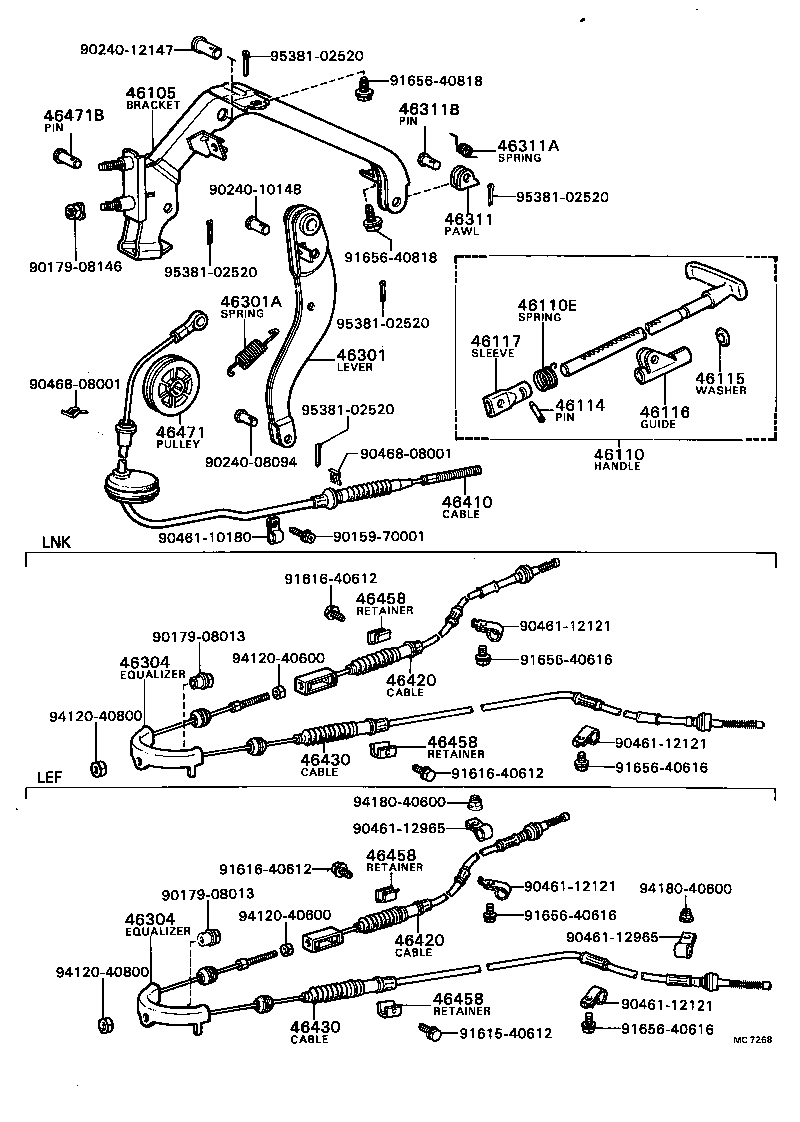

Click highlighted areas on diagram

diagram 46105 46110 46110E 46114 46115 46116 46117 46301 46301A 46304 46304 46311 46311A 46311B 46410 46420 46420 46430 46430 46458 46458 46458 46458 46471 46471B 9015970001 9017908013 9017908013 9017908146 9024008094 9024010148 9024012147 9046110180 9046112121 9046112121 9046112121 9046112121 9046112965 9046112965 9046808001 9046808001 9161540612 9161640612 9161640612 9161640612 9165640616 9165640616 9165640616 9165640616 9165640818 9165640818 9412040600 9412040600 9412040800 9412040800 9418040600 9418040600 9538102520 9538102520 9538102520 9538102520 9538102520
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46201-2002001

RT13#,TT13#

BLACK,BLACK,TRIM2#

 1
46201-2002101

RT13#,TT13#..DLX,STD

W/2-SPOKE STEERING,BLACK,BLACK,TRIM2#

 1
46201-2002002

RT13#,TT13#

DARK WINE,RED/MAROON,TRIM3#

 1
46201-2010002

RT13#,TT13#..DLX,GL

W/4-SPOKE STEERING,DARK WINE,RED/MAROON,TRIM3#

 1
46201-2002005

RT13#,TT13#

BEIGE,BEIGE,TRIM4#

 1
46201-2010006

RT13#,TT13#..DLX,GL

W/4-SPOKE STEERING,LIGHT BROWN,BROWN,TRIM4#

 1
46201-2002106

RT13#,TT13#..DLX,STD

W/2-SPOKE STEERING,LIGHT BROWN,BROWN,TRIM4#

 1
46201-2002102

RT13#,TT13#..DLX,STD

W/2-SPOKE STEERING,DARK WINE,RED/MAROON,TRIM3#

 1
46201-2010001

RT13#,TT13#..DLX,GL

W/4-SPOKE STEERING,BLACK,BLACK,TRIM2#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-14010

RT13#,TT13#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-14010

RT13#,TT13#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-14070

RT133..GL;RT130,132,TT13#..LNK

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-14070

RT133..GL;RT130,132,TT13#..LNK

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-20120

RT13#,TT132..LNK

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-20120

RT13#,TT132..LNK

 1
46458 - RETAINER, CABLE
46458-20020

RT133..GL;RT130,132,TT13#..HT,LB,SED

 2
46458 - RETAINER, CABLE
46458-20020

RT133..GL;RT130,132,TT13#..HT,LB,SED

 2
46458 - RETAINER, CABLE
46458-20020

RT133..GL;RT130,132,TT13#..HT,LB,SED

 2
46458 - RETAINER, CABLE
46458-20020

RT133..GL;RT130,132,TT13#..HT,LB,SED

 2
Common parts
90159-70001
90179-08013
90179-08146
90240-08094
90240-10148
90240-12147
90461-10180
90461-12121
90461-12965
90468-08001
91615-40612
91616-40612
91656-40616
91656-40818
94120-40600
94120-40800
94180-40600
95381-02520
