TT132R-TLKNSW (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
3T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008)RT13#,TT13#..MTM ; (8008-8205)RT13#,TT13#..MTM..ARL,GEN,PHL

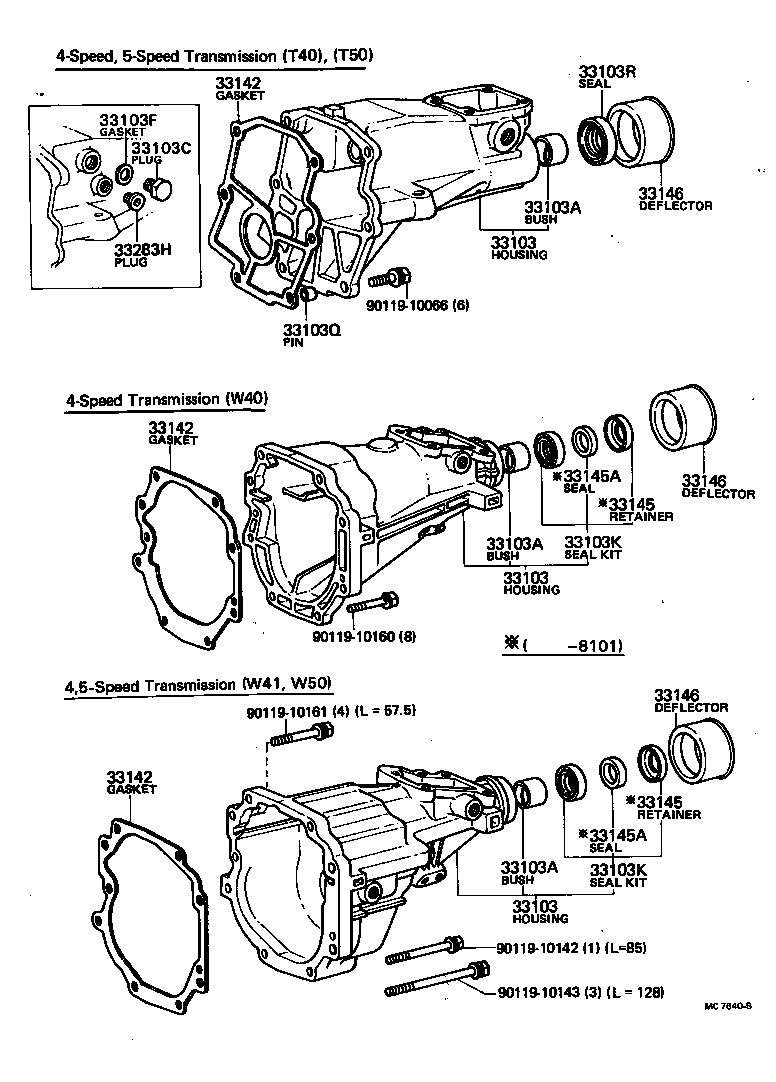

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-20090 |
RT13#,TT132..4F |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-20090 |
RT13#,TT132..4F |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-20090 |
RT13#,TT132..4F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
RT13#,TT132..4F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
RT13#,TT132..4F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
RT13#,TT132..4F |
1 | ||
| 33103K - SEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING | ||||
| 04332-30010 |
RT13#,TT132..MTM |
1 | ||
| 33103K - SEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING | ||||
| 04332-30010 |
RT13#,TT132..MTM |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-31010 |
RT13#,TT132..4F |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-31010 |
RT13#,TT132..4F |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-31010 |
RT13#,TT132..4F |
1 | ||
| 33145 - RETAINER, EXTENSION HOUSING DUST SEAL(MTM) | ||||
| 33145-30010 |
RT13#,TT132..MTM |
1 | ||
| 33145 - RETAINER, EXTENSION HOUSING DUST SEAL(MTM) | ||||
| 33145-30010 |
RT13#,TT132..MTM |
1 | ||
| 33145A - SEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90303-38010 |
RT13#,TT132..MTM |
1 | ||
| 33145A - SEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90303-38010 |
RT13#,TT132..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
RT13#,TT132..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
RT13#,TT132..MTM |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
RT13#,TT132..MTM |
1 | ||
| Common parts | ||||
| 90119-10066 | ||||
| 90119-10142 | ||||
| 90119-10143 | ||||
| 90119-10160 | ||||
| 90119-10161 | ||||
