TT132R-TEHRS (1978)
Toyota Corona
(7809- )

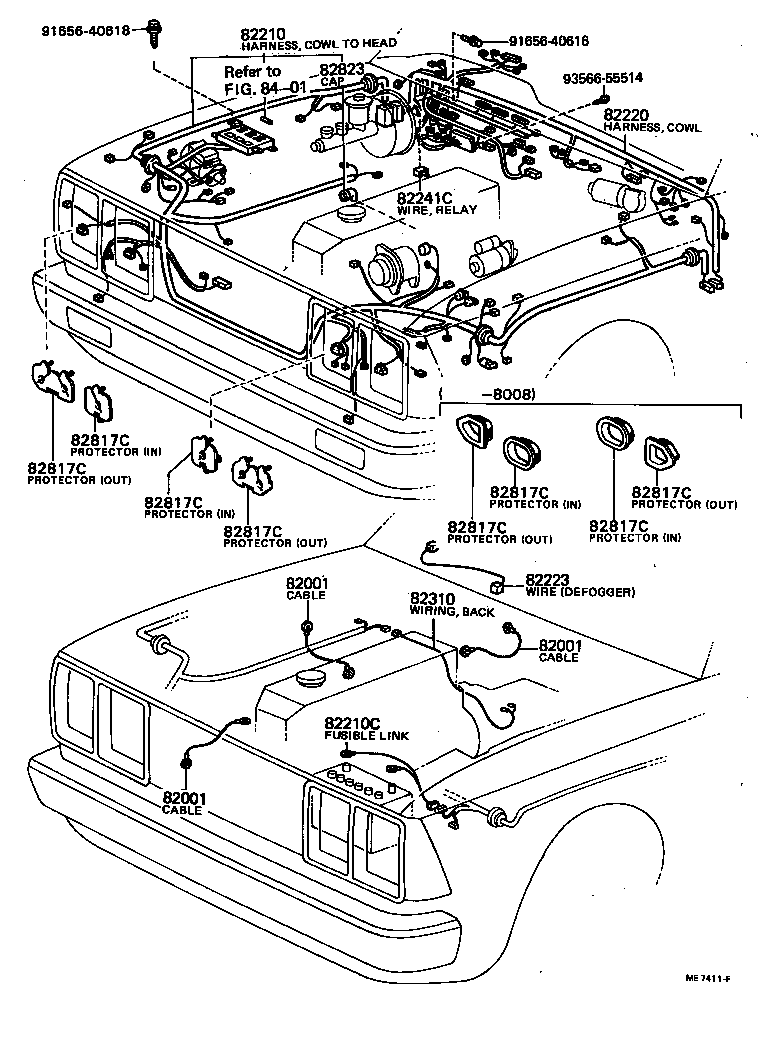

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14100 | ||||
| 82711-20190 | ||||
| 82711-22140 | ||||
| 82711-22150 | ||||
| 82711-91255 | ||||
| 82711-91256 | ||||
| 82814-40020 | ||||
| 90461-06006 | ||||
| 90461-06064 | ||||
| 90461-06075 | ||||
| 90461-06076 | ||||
| 90461-06122 | ||||
| 90461-06132 | ||||
| 90461-08175 | ||||
| 90461-08183 | ||||
| 90461-08213 | ||||
| 90461-08232 | ||||
| 90461-08285 | ||||
| 90461-08401 | ||||
| 90461-08497 | ||||
| 90461-10337 | ||||
| 90463-04517 | ||||
| 90463-08046 | ||||
| 90463-10055 | ||||
| 90463-10338 | ||||
(7809- )TT13#,XT130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07149 |
RT13#,TT13#,XT130 L=380 |
1 | ||
| 90980-07062 |
TT13# L=260,ENGINE |
1 | ||
| 90980-07148 |
RT133..GL;RT132,TT13# L=260,MISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07149 |
RT13#,TT13#,XT130 L=380 |
1 | ||
| 90980-07062 |
TT13# L=260,ENGINE |
1 | ||
| 90980-07148 |
RT133..GL;RT132,TT13# L=260,MISSION |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07149 |
RT13#,TT13#,XT130 L=380 |
1 | ||
| 90980-07062 |
TT13# L=260,ENGINE |
1 | ||
| 90980-07148 |
RT133..GL;RT132,TT13# L=260,MISSION |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-2B061 |
TT132..RHD..GEN |
1 | ||
| 82210-2B062 |
TT13#..RHD..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08080 |
RT13#,TT13#,XT130 |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82220-21031 |
RT13#,TT132..RHD..(DLX,STD) |
1 | ||
| 82220-21032 |
TT132..RHD..GEN |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-22060 |
RT13#,TT13#..ARL,GEN,PHL W/O INTERMITTENT WIPER |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20130 |
TT13# LH:IN |
1 | ||
| 82817-20140 |
TT13# LH:OUT |
1 | ||
| 82817-20190 |
TT13# RH:OUT |
1 | ||
| 82817-20180 |
TT13# RH:IN |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20130 |
TT13# LH:IN |
1 | ||
| 82817-20140 |
TT13# LH:OUT |
1 | ||
| 82817-20190 |
TT13# RH:OUT |
1 | ||
| 82817-20180 |
TT13# RH:IN |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20130 |
TT13# LH:IN |
1 | ||
| 82817-20140 |
TT13# LH:OUT |
1 | ||
| 82817-20190 |
TT13# RH:OUT |
1 | ||
| 82817-20180 |
TT13# RH:IN |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20130 |
TT13# LH:IN |
1 | ||
| 82817-20140 |
TT13# LH:OUT |
1 | ||
| 82817-20190 |
TT13# RH:OUT |
1 | ||
| 82817-20180 |
TT13# RH:IN |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20130 |
TT13# LH:IN |
1 | ||
| 82817-20140 |
TT13# LH:OUT |
1 | ||
| 82817-20190 |
TT13# RH:OUT |
1 | ||
| 82817-20180 |
TT13# RH:IN |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20130 |
TT13# LH:IN |
1 | ||
| 82817-20140 |
TT13# LH:OUT |
1 | ||
| 82817-20190 |
TT13# RH:OUT |
1 | ||
| 82817-20180 |
TT13# RH:IN |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20130 |
TT13# LH:IN |
1 | ||
| 82817-20140 |
TT13# LH:OUT |
1 | ||
| 82817-20190 |
TT13# RH:OUT |
1 | ||
| 82817-20180 |
TT13# RH:IN |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-20130 |
TT13# LH:IN |
1 | ||
| 82817-20140 |
TT13# LH:OUT |
1 | ||
| 82817-20190 |
TT13# RH:OUT |
1 | ||
| 82817-20180 |
TT13# RH:IN |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22020 |
RT13#,TT13# ALTERNATOR |
1 | ||
| Common parts | ||||
| 91656-40616 | ||||
| 91656-40618 | ||||
| 93566-55514 | ||||
| Linked diagrams | ||||
| 8401 | ||||

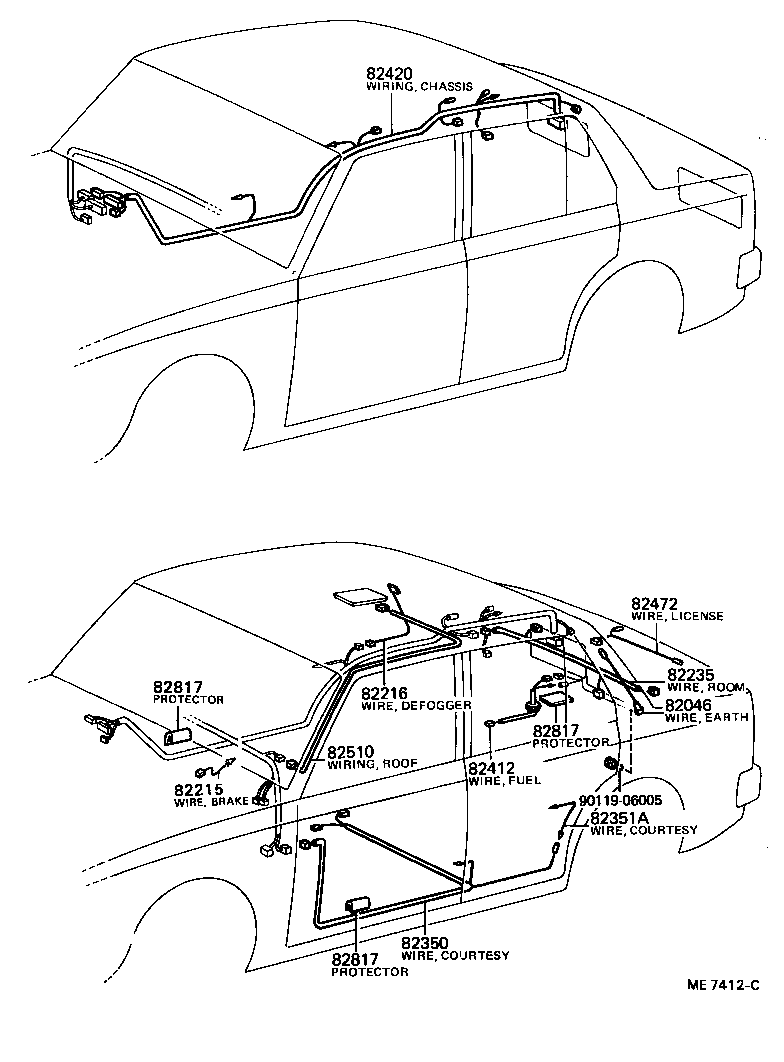

(7809- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-20050 |
RT13#,TT13#,XT130..SED..(ARL,EUR,GEN) |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-20060 |
RT13#,TT13#,XT130..SED..(ARL,EUR,GEN) |
1 | ||
| 82235 - WIRE, ROOM | ||||
| 82235-20010 |
RT130..LNK..PHL;RT13#,TT13#,XT130..SED..(ARL,EUR,GEN) |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82350-20180 |
RT13#,TT132..LB,SED |
1 | ||
| 82350-20181 |
RT13#,TT132..LB,SED |
1 | ||
| 82351A - WIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR) | ||||
| 82350-20170 |
RT13#,TT132..LB,SED |
2 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-20061 |
RT13#,TT132..HT,SED |
1 | ||
| 82412-20062 |
RT13#,TT13#,XT130..HT,SED |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-20280 |
RT13#,TT132..SED |
1 | ||
| 82420-20281 |
RT13#,TT13#,XT130..SED |
1 | ||
| 82472 - WIRE, LICENSE LAMP | ||||
| 82214-20011 |
RT13#,TT132..LB,SED |
1 | ||
| 82214-20012 |
RT13#,TT132..LB,SED |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-20190 |
RT13#,TT13#,XT130..(LB,SED)..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-21030 |
RT13#,TT132..LB,SED,WG L=100 |
2 | ||
| 82817-20160 |
RT13#,TT13#,XT130..HT,SED L=120X170 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-21030 |
RT13#,TT132..LB,SED,WG L=100 |
2 | ||
| 82817-20160 |
RT13#,TT13#,XT130..HT,SED L=120X170 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-21030 |
RT13#,TT132..LB,SED,WG L=100 |
2 | ||
| 82817-20160 |
RT13#,TT13#,XT130..HT,SED L=120X170 |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14080 | ||||
| 90461-06040 | ||||
| 90461-06303 | ||||
| 90461-06645 | ||||
| 90461-08066 | ||||
| 90463-04013 | ||||
| 90463-04079 | ||||
| 90463-10337 | ||||
| 90463-15617 | ||||
| 90464-00042 | ||||
| 90464-00095 | ||||
| 90464-00121 | ||||
| 90464-00122 | ||||
| 90464-00134 | ||||
| 90464-00181 | ||||
| 90464-00186 | ||||
| 90464-00194 | ||||
| 90464-00257 | ||||
| 90467-09007 | ||||
| 90480-08003 | ||||
| 90480-08004 | ||||
| 90480-27001 | ||||
| 90480-30333 | ||||
| 90480-32001 | ||||
| 90480-33004 | ||||

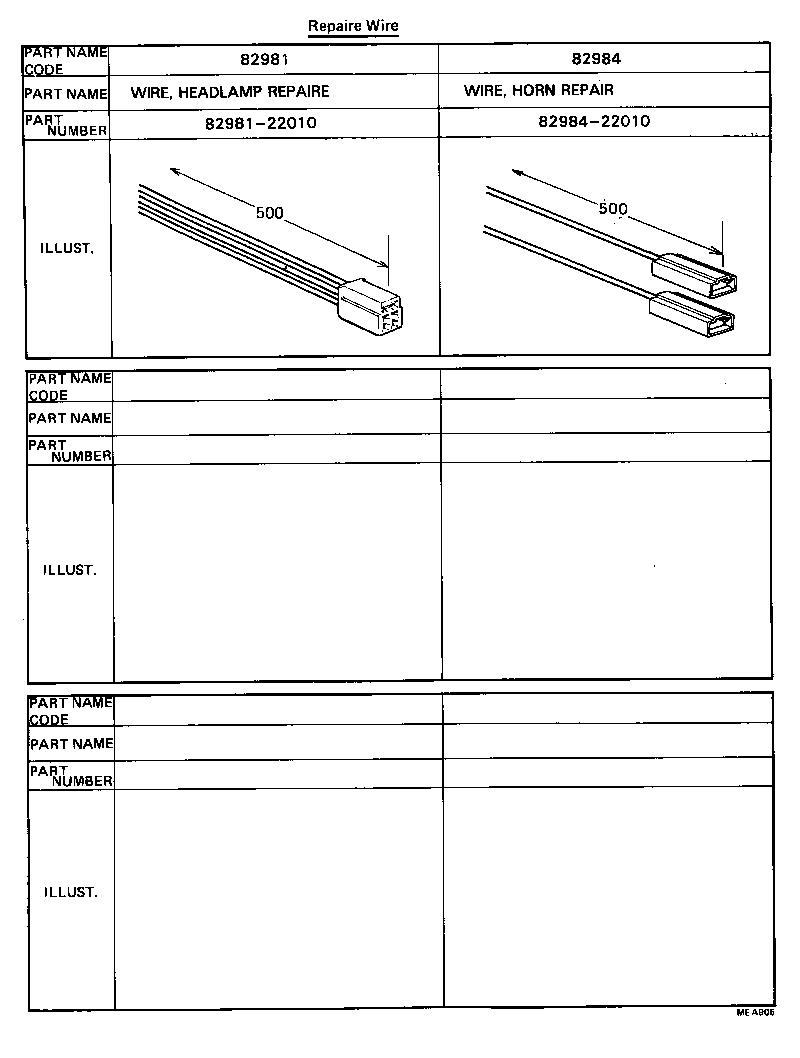

(8104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82981-22010 | ||||
| 82984-22010 | ||||
