TT132R-TEHRS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1981
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8112)2T,3T

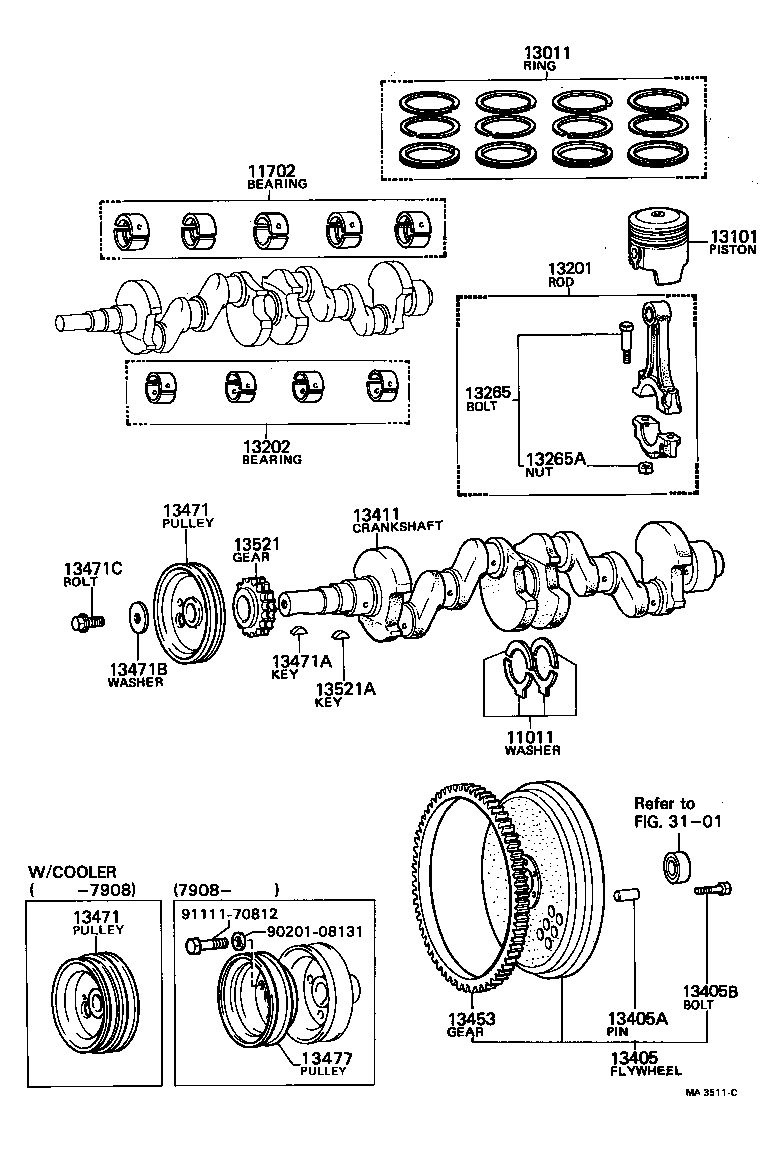

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
2T,3T..TT13# STD,STD |
1 | ||
| 11013-25010 |
2T,3T..TT13# O/S 0.250 |
1 | ||
| 11012-25010 |
2T,3T..TT13# O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-25013 |
2T,3T..TT13# STD |
1 | ||
| 11703-25013 |
2T,3T..TT13# U/S 0.05 |
1 | ||
| 11704-25013 |
2T,3T..TT13# U/S 0.25 |
1 | ||
| 11705-25013 |
2T,3T..TT13# U/S 0.50 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13015-28011 |
3T..TT132 O/S 1.00 |
1 | ||
| 13013-28011 |
3T..TT132 O/S 0.50 |
1 | ||
| 13011-28011 |
3T..TT132 STD |
1 | ||
| 13014-28011 |
3T..TT132 O/S 0.75 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13105-28010 |
3T..TT132 O/S 1.00 |
4 | ||
| 13104-28010 |
3T..TT132 O/S 0.75 |
4 | ||
| 13101-28010 |
3T..TT132 STD |
4 | ||
| 13103-28010 |
3T..TT132 O/S 0.50 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-25010 |
2T,3T..TT13# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13203-25010 |
2T,3T..TT13# U/S 0.05 |
1 | ||
| 13202-25010 |
2T,3T..TT13# STD |
1 | ||
| 13204-25010 |
2T,3T..TT13# U/S 0.25 |
1 | ||
| 13205-25010 |
2T,3T..TT13# U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
2T,3T..TT13# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
2T,3T..TT13# |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-28010 |
3T..TT132 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-27020 |
3T..TT132 |
1 | ||
| 13471-28010 |
3T..TT132 W/COOLER |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-27020 |
3T..TT132 |
1 | ||
| 13471-28010 |
3T..TT132 W/COOLER |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2T,3T..TT13# |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13059 |
3T..TT132 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12050 |
2T,3T..TT13# |
1 | ||
| 90105-12001 |
3T..TT132 W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
2T,3T..TT13# N=18 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2T,3T..TT13# |
1 | ||
| Common parts | ||||
| 90201-08131 | ||||
| 91111-70812 | ||||
| Linked diagrams | ||||
| 3101 | ||||
