TT132LG-TWKDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )WG

Click highlighted areas on diagram

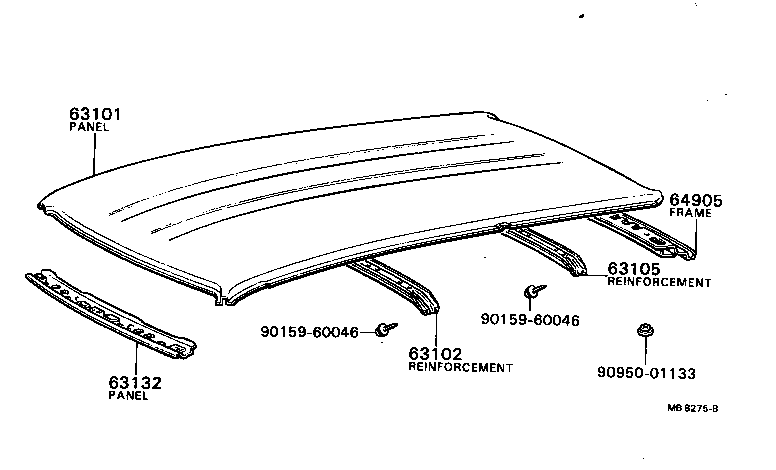

diagram 63101 63102 63105 63132 64905 9015960046 9015960046 9095001133
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-91256

RT130,132,TT13#,XT130..WG

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63141-91255

RT130,132,TT13#,XT130..WG

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63142-91255

RT130,132,TT13#,XT130..WG

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-20010

RT13#,TT13#,XT130..SED,WG

 1
64905 - FRAME SUB-ASSY, BACK UPPER
63105-91258

RT130,132,TT13#..WG

 1
Common parts
90159-60046
90950-01133
