Toyota Corona TT132 FLOOR SIDE MEMBER

TT132LG-TWKDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981

Engine 3T

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7809-8008)WG

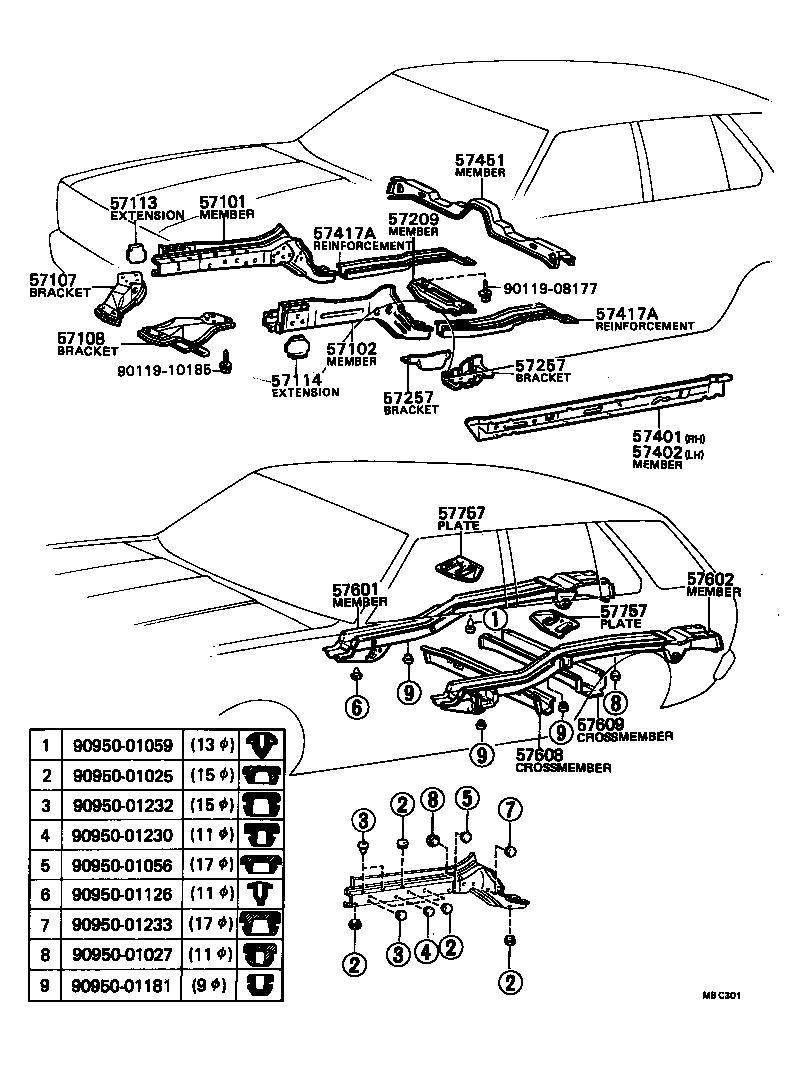

Click highlighted areas on diagram

Part #	Description	Period	Qty
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20220	RT13#,TT13#,XT130	09/1978 - 08/1980	1
57101-20260	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20200	RT13#,TT13#,XT130	09/1978 - 08/1980	1
57102-20260	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14012	RT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN	09/1978 - 08/1980	1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14012	RT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN	09/1978 - 08/1980	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14050	RT13#,TT132,XT130	09/1978 - 01/1983	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57113-14050	RT13#,TT132,XT130	09/1978 - 01/1983	1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14061	RT13#,TT132	09/1978 - 08/1980	1
57209-15011	TT132..MTM	08/1981 - 12/1981	1
57209-14061	RT13#,TT132..ARL,GEN,PHL	08/1980 - 08/1981	1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20150	RT13#,TT13#,XT130..LB,WG	09/1978 - 01/1983	1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20150	RT13#,TT13#,XT130..LB,WG	09/1978 - 01/1983	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-91255	RT13#,TT13#..WG	09/1978 - 03/1980	1
57601-91261	TT132..LHD..4F..DLX..LEF SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-91255	RT13#,TT13#..WG	09/1978 - 03/1980	1
57602-91263	TT132..LHD..4F..DLX..LEF SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-91255	RT13#,TT132..WG	09/1978 - 08/1979	1
57609 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.3
57607-91255	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
57757 - PLATE, REAR FLOOR CROSSMEMBER
57757-91255	RT130,132,TT13#,XT130..WG RH	09/1978 - 01/1983	1
57758-91259	RT130,132,TT13#,XT130..WG LH	09/1978 - 01/1983	1
57757 - PLATE, REAR FLOOR CROSSMEMBER
57757-91255	RT130,132,TT13#,XT130..WG RH	09/1978 - 01/1983	1
57758-91259	RT130,132,TT13#,XT130..WG LH	09/1978 - 01/1983	1
Common parts
90119-08177
90119-10185
90950-01025
90950-01027
90950-01056
90950-01059
90950-01126
90950-01181
90950-01230
90950-01232
90950-01233

(8008- )WG

Click highlighted areas on diagram

Part #	Description	Period	Qty
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-20220	RT13#,TT13#,XT130	09/1978 - 08/1980	1
57101-20260	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-20200	RT13#,TT13#,XT130	09/1978 - 08/1980	1
57102-20260	TT132..4F..STD..LNK;TT132..SED..LHD..3FC;TT13#..LHD..4F..DLX..GEN SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14012	RT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN	09/1978 - 08/1980	1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14012	RT130..WG..PHL;RT130..LNK..PHL;RT13#,TT13#,XT130..ARL,EUR,GEN	09/1978 - 08/1980	1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14050	RT13#,TT132,XT130	09/1978 - 01/1983	1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57113-14050	RT13#,TT132,XT130	09/1978 - 01/1983	1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14061	RT13#,TT132	09/1978 - 08/1980	1
57209-15011	TT132..MTM	08/1981 - 12/1981	1
57209-14061	RT13#,TT132..ARL,GEN,PHL	08/1980 - 08/1981	1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-20150	RT13#,TT13#,XT130..LB,WG	09/1978 - 01/1983	1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-20150	RT13#,TT13#,XT130..LB,WG	09/1978 - 01/1983	1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-91255	RT13#,TT13#..WG	09/1978 - 03/1980	1
57601-91261	TT132..LHD..4F..DLX..LEF SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-91255	RT13#,TT13#..WG	09/1978 - 03/1980	1
57602-91263	TT132..LHD..4F..DLX..LEF SAUDI ARABIA SPEC	12/1980 - 12/1981	1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-91255	RT13#,TT132..WG	09/1978 - 08/1979	1
57609 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.3
57607-91255	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
57757 - PLATE, REAR FLOOR CROSSMEMBER
57757-91255	RT130,132,TT13#,XT130..WG RH	09/1978 - 01/1983	1
57758-91259	RT130,132,TT13#,XT130..WG LH	09/1978 - 01/1983	1
57757 - PLATE, REAR FLOOR CROSSMEMBER
57757-91255	RT130,132,TT13#,XT130..WG RH	09/1978 - 01/1983	1
57758-91259	RT130,132,TT13#,XT130..WG LH	09/1978 - 01/1983	1
Common parts
90119-08177
90119-10185
90950-01025
90950-01027
90950-01056
90950-01059
90950-01126
90950-01181
90950-01230
90950-01232
90950-01233

TT132LG-TWKDS (1978)

(7809-8008)WG

(8008- )WG
