TT132LG-TWKDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )WG

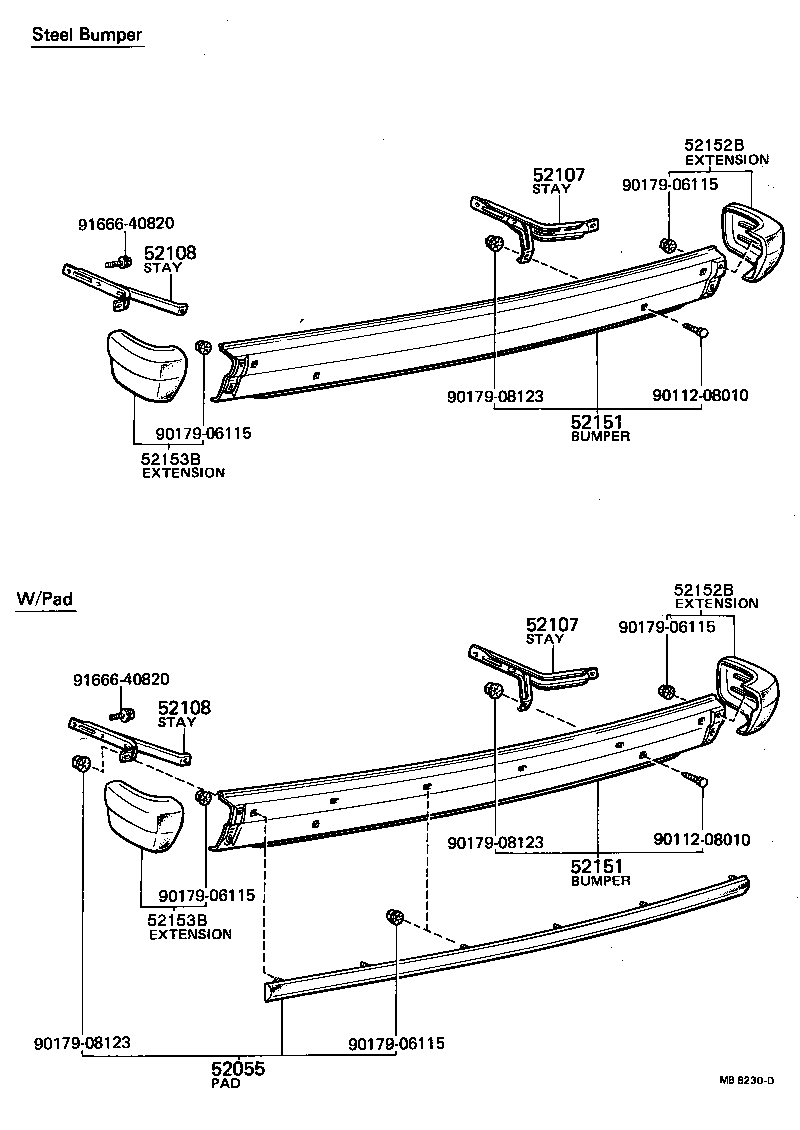

Click highlighted areas on diagram

diagram 52055 52107 52107 52108 52108 52151 52151 52152B 52152B 52153B 52153B 9011208010 9011208010 9017906115 9017906115 9017906115 9017906115 9017906115 9017908123 9017908123 9017908123 9166640820 9166640820
Part # Description Qty Price
52055 - PAD SUB-ASSY, REAR BUMPER
52055-29045

XT130;RT130,132,TT13#..WG

 1
52055-29045

RT13#,TT13#,XT130..ARL,EUR,GEN

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-91255

RT130,132,TT13#,XT130..WG

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-91255

RT130,132,TT13#,XT130..WG

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-91255

RT130,132,TT13#,XT130..WG

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-91255

RT130,132,TT13#,XT130..WG

 1
52151 - BUMPER ASSY, REAR
52151-29345

RT13#,TT13#..(HT,WG)..GEN

W/PAD

 1
52151-29345

RT130,132,TT13#,XT130..WG

W/PAD

 1
52151-29335

RT13#,TT13#,XT130..HT,WG

 1
52151 - BUMPER ASSY, REAR
52151-29345

RT13#,TT13#..(HT,WG)..GEN

W/PAD

 1
52151-29345

RT130,132,TT13#,XT130..WG

W/PAD

 1
52151-29335

RT13#,TT13#,XT130..HT,WG

 1
Common parts
90112-08010
90179-06115
90179-08123
91666-40820

(7906-8008)HT,LB..5F..GEN ; (7912-8008)RT132..HT; (7912-8008)RT130..SED ; (7912-80

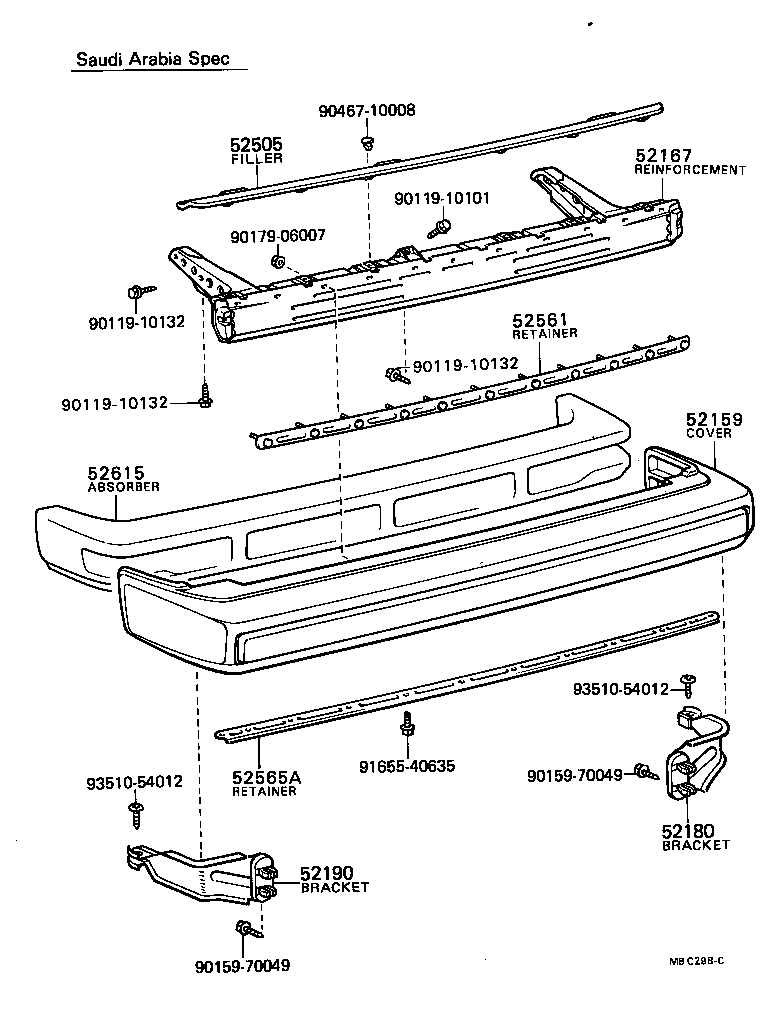

Click highlighted areas on diagram

diagram 52159 52167 52180 52190 52561 52565A 52615 52705 9011910085 9015970049 9017905147 9017906007 9165540635 9165540635 9351054012
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-20031

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52167 - REINFORCEMENT, REAR BUMPER
52023-91257

TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52180 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH
52180-20010

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52190 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH
52190-20010

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20020

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14020

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20011

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
Common parts
90119-10085
90159-70049
90179-05147
90179-06007
91655-40635
93510-54012

(8012-8112)WG

Click highlighted areas on diagram

diagram 52159 52167 52180 52190 52505 52561 52565A 52615 9011910101 9011910132 9011910132 9011910132 9015970049 9015970049 9017906007 9046710008 9165540635 9351054012 9351054012
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-20031

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52167 - REINFORCEMENT, REAR BUMPER
52023-91257

TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52180 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, RH
52180-20010

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52190 - BRACKET ASSY, REAR BUMPER SIDE MOUNTING, LH
52190-20010

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52505 - FILLER SUB-ASSY, REAR BUMPER
52551-91255

TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20020

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-14020

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20011

TT132..4F..STD..LNK;TT132..LHD..4F..DLX..LEF

SAUDI ARABIA SPEC

 1
Common parts
90119-10101
90119-10132
90159-70049
90179-06007
90467-10008
91655-40635
93510-54012
