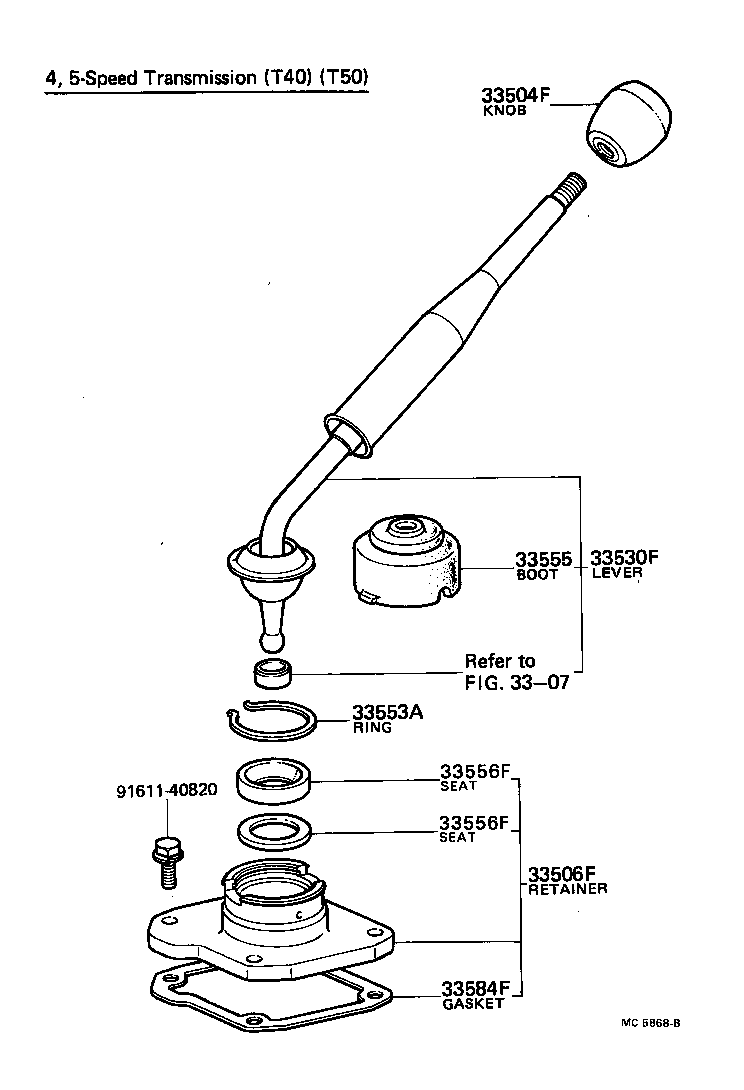

TT132LG-TWKDS (1978)
Toyota Corona
(7908-8112)TT133 ; (8108-8112)TT132..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2006201 |
TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX URETHANE,BLACK,BLACK,TRIM2# |
1 | ||
| 33504-2006205 |
TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX URETHANE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 33504-2006202 |
TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX URETHANE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 33504-2210005 |
RT13#,TT13#..4F..(DLX,STD) BEIGE,BEIGE,TRIM4# |
1 | ||
| 33504-2210001 |
RT13#,TT13#..4F..(DLX,STD) BLACK,BLACK,TRIM2# |
1 | ||
| 33504-2210002 |
RT13#,TT13#..4F..(DLX,STD) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 33504-2006201 |
RT130,TT13#..4F..DLX URETHANE,BLACK,BLACK,TRIM2# |
1 | ||
| 33504-2006202 |
RT130,TT13#..4F..DLX URETHANE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 33504-2006206 |
RT130,TT13#..4F..DLX URETHANE,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-21010 |
RT13#,TT132..MTM |
1 | ||
| 33570-21011 |
RT13#..MTM;TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN |
1 | ||
| 33570-21010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) |
1 | ||
| 33570-14021 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-14230 |
TT133..LHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F |
1 | ||
| 33530-20141 |
TT132..LHD..4F..GEN |
1 | ||
| 33530-20141 |
RT13#,TT132..LHD..4F |
1 | ||
| 33530-20163 |
TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN |
1 | ||
| 33553A - RING, SNAP (FOR SHIFT LEVER SPRING SHEET) | ||||
| 90521-49003 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-31011 |
RT13#,TT132..MTM |
1 | ||
| 33555-12090 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F |
1 | ||
| 33555-31011 |
RT13#,TT132..MTM..(ARL,GEN,PHL) |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-22010 |
RT13#,TT132..MTM T=6.5 |
1 | ||
| 33556-20010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) T=3.0 |
1 | ||
| 33556-20010 |
RT13#,TT132..MTM T=3.0 |
1 | ||
| 33556-14020 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F T=3.0 |
1 | ||
| 33556-14010 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F T=13.5 |
1 | ||
| 33556-22010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) T=6.5 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-22010 |
RT13#,TT132..MTM T=6.5 |
1 | ||
| 33556-20010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) T=3.0 |
1 | ||
| 33556-20010 |
RT13#,TT132..MTM T=3.0 |
1 | ||
| 33556-14020 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F T=3.0 |
1 | ||
| 33556-14010 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F T=13.5 |
1 | ||
| 33556-22010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) T=6.5 |
1 | ||
| 33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT) | ||||
| 33584-20010 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| Linked diagrams | ||||
| 3307 | ||||
(7809-8008)RT13#,TT132..MTM ; (8008-8108)RT13#,TT132..MTM..ARL,GEN,PHL ; (8108-8205
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143 - PLATE, EXTENSION HOUSING OIL BAFFLE | ||||
| 33143-20031 |
RT13#..MTM;TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN |
1 | ||
| 33143-20030 |
RT13#,TT132..MTM..(ARL,GEN,PHL) |
1 | ||
| 33143-20030 |
RT13#,TT132..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2006201 |
TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX URETHANE,BLACK,BLACK,TRIM2# |
1 | ||
| 33504-2006205 |
TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX URETHANE,BEIGE,BEIGE,TRIM4# |
1 | ||
| 33504-2006202 |
TT132..LHD..DLX..LEF;TT132..(SED,WG)..RHD..4F..DLX URETHANE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 33504-2210005 |
RT13#,TT13#..4F..(DLX,STD) BEIGE,BEIGE,TRIM4# |
1 | ||
| 33504-2210001 |
RT13#,TT13#..4F..(DLX,STD) BLACK,BLACK,TRIM2# |
1 | ||
| 33504-2210002 |
RT13#,TT13#..4F..(DLX,STD) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 33504-2006201 |
RT130,TT13#..4F..DLX URETHANE,BLACK,BLACK,TRIM2# |
1 | ||
| 33504-2006202 |
RT130,TT13#..4F..DLX URETHANE,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 33504-2006206 |
RT130,TT13#..4F..DLX URETHANE,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-21010 |
RT13#,TT132..MTM |
1 | ||
| 33570-21011 |
RT13#..MTM;TT132..RHD..MTM;TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN |
1 | ||
| 33570-21010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) |
1 | ||
| 33570-14021 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-14230 |
TT133..LHD;TT132..LHD..(3FC,4F);TT132..(HT,LB)..LHD..5F |
1 | ||
| 33530-20141 |
TT132..LHD..4F..GEN |
1 | ||
| 33530-20141 |
RT13#,TT132..LHD..4F |
1 | ||
| 33530-20163 |
TT132..LHD..4F..GEN;TT132..(HT,LB)..LHD..5F..GEN |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-31011 |
RT13#,TT132..MTM |
1 | ||
| 33555-12090 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F |
1 | ||
| 33555-31011 |
RT13#,TT132..MTM..(ARL,GEN,PHL) |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-22010 |
RT13#,TT132..MTM T=6.5 |
1 | ||
| 33556-20010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) T=3.0 |
1 | ||
| 33556-20010 |
RT13#,TT132..MTM T=3.0 |
1 | ||
| 33556-14020 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F T=3.0 |
1 | ||
| 33556-14010 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F T=13.5 |
1 | ||
| 33556-22010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) T=6.5 |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-22010 |
RT13#,TT132..MTM T=6.5 |
1 | ||
| 33556-20010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) T=3.0 |
1 | ||
| 33556-20010 |
RT13#,TT132..MTM T=3.0 |
1 | ||
| 33556-14020 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F T=3.0 |
1 | ||
| 33556-14010 |
TT133;TT132..LHD..4F;TT132..RHD..MTM;TT132..(HT,LB)..LHD..5F T=13.5 |
1 | ||
| 33556-22010 |
RT13#,TT132..MTM..(ARL,GEN,PHL) T=6.5 |
1 | ||
| 33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2 | ||||
| 33584-31020 |
RT13#,TT132..MTM |
1 | ||
| 33584-31020 |
RT13#,TT132..MTM..(ARL,GEN,PHL) |
1 | ||
| Common parts | ||||
| 90109-08054 | ||||
| 90109-08092 | ||||
| 93381-16012 | ||||
| Linked diagrams | ||||
| 3307 | ||||
