TT132LG-TWKDS (1978)

Toyota Corona

Production Sep 1978 - Dec 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)12R#,18R,2T,3T..WG

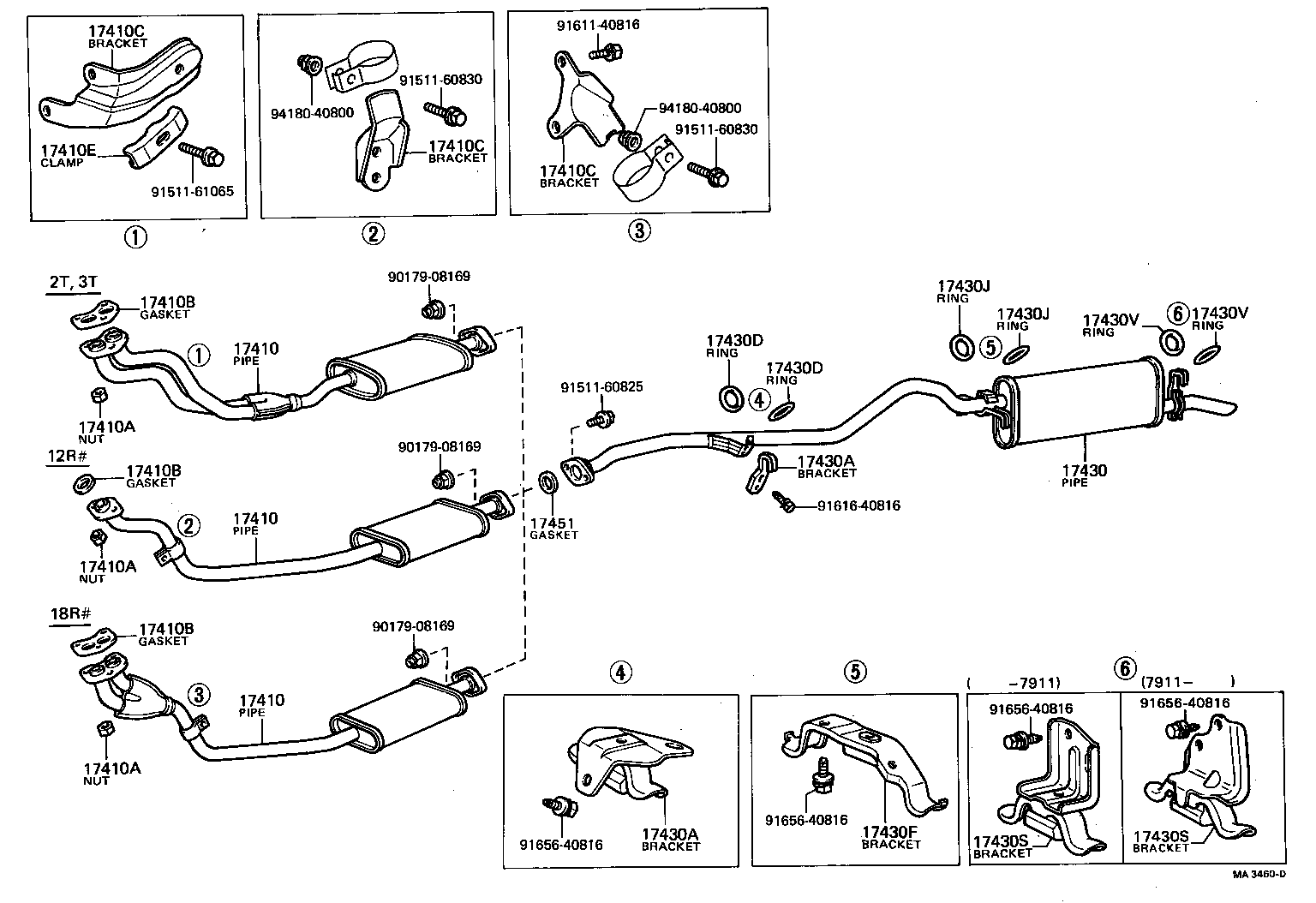

Click highlighted areas on diagram

diagram 17410 17410 17410 17410A 17410A 17410A 17410B 17410B 17410B 17410C 17410C 17410C 17410E 17430 17430A 17430A 17430D 17430D 17430F 17430J 17430J 17430S 17430S 17430V 17430V 17451 9017908169 9017908169 9017908169 9151160825 9151160830 9151160830 9151161065 9161140816 9161640816 9165640816 9165640816 9165640816 9165640816 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28100

3T..TT132..LB,SED;3T..TT132..(HT,WG)..LHD;3T..TT132..RHD..3FC..LEF;3T..TT132..RHD..STD..LEF

TYPE 2

 1
17410-26230

2T,3T..TT13#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28100

3T..TT132..LB,SED;3T..TT132..(HT,WG)..LHD;3T..TT132..RHD..3FC..LEF;3T..TT132..RHD..STD..LEF

TYPE 2

 1
17410-26230

2T,3T..TT13#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-28100

3T..TT132..LB,SED;3T..TT132..(HT,WG)..LHD;3T..TT132..RHD..3FC..LEF;3T..TT132..RHD..STD..LEF

TYPE 2

 1
17410-26230

2T,3T..TT13#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

18R,3T..RT132,TT132

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

18R,3T..RT132,TT132

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

18R,3T..RT132,TT132

 3
17410B - GASKET, EXHAUST PIPE
17451-41020

18R#,2T,3T..RT132,TT13#

 1
17410B - GASKET, EXHAUST PIPE
17451-41020

18R#,2T,3T..RT132,TT13#

 1
17410B - GASKET, EXHAUST PIPE
17451-41020

18R#,2T,3T..RT132,TT13#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17570-28020

3T..TT132..RHD..STD..LEF;3T..TT132..(HT,WG)..LHD..MTM;3T..TT132..(LB,SED)..MTM..GEN

 1
17571-26110

2T,3T..TT13#

 1
17571-26010

3T..TT132..LHD..(3FC,4F);3T..TT132..(HT,LB)..LHD..5F;3T..TT132..(LB,SED,WG)..RHD..DLX

TYPE 2

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17570-28020

3T..TT132..RHD..STD..LEF;3T..TT132..(HT,WG)..LHD..MTM;3T..TT132..(LB,SED)..MTM..GEN

 1
17571-26110

2T,3T..TT13#

 1
17571-26010

3T..TT132..LHD..(3FC,4F);3T..TT132..(HT,LB)..LHD..5F;3T..TT132..(LB,SED,WG)..RHD..DLX

TYPE 2

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17570-28020

3T..TT132..RHD..STD..LEF;3T..TT132..(HT,WG)..LHD..MTM;3T..TT132..(LB,SED)..MTM..GEN

 1
17571-26110

2T,3T..TT13#

 1
17571-26010

3T..TT132..LHD..(3FC,4F);3T..TT132..(HT,LB)..LHD..5F;3T..TT132..(LB,SED,WG)..RHD..DLX

TYPE 2

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

2T,3T..TT13#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-26410

12R#,18R,2T,3T..RT13#,TT13#..WG

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-26080

12R#,18R#,2T,3T..RT13#,TT13#

PIPE SIDE

 1
17506-38050

12R#,18R,2T,3T..RT130,132,TT13#..WG

FLOOR PAN SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-26080

12R#,18R#,2T,3T..RT13#,TT13#

PIPE SIDE

 1
17506-38050

12R#,18R,2T,3T..RT130,132,TT13#..WG

FLOOR PAN SIDE

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-26060

12R#,18R,2T,3T..RT130,132,TT13#..WG

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-36021

12R#,18R,2T,3T..RT13#,TT13#..WG

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-36021

12R#,18R,2T,3T..RT13#,TT13#..WG

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 1
Common parts
90179-08169
91511-60825
91511-60830
91511-61065
91611-40816
91616-40816
91656-40816
94180-40800
