TT132L-TLMDSW (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
3T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

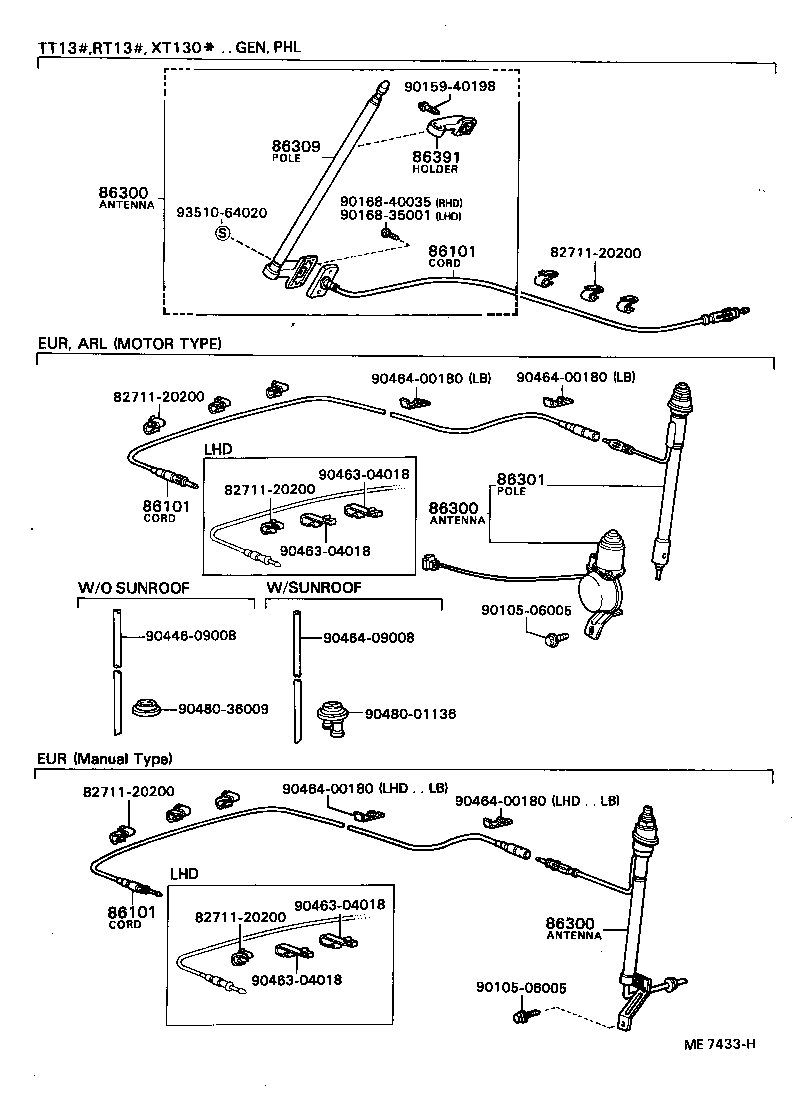

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-20090 |
TT132..LHD..EUR |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-20090 |
TT132..LHD..EUR |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-20090 |
TT132..LHD..EUR |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20150 |
RT132,TT132..LB..(ARL,EUR) MOTOR TYPE |
1 | ||
| 86300-20160 |
TT132..LB..EUR MANUAL TYPE |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20150 |
RT132,TT132..LB..(ARL,EUR) MOTOR TYPE |
1 | ||
| 86300-20160 |
TT132..LB..EUR MANUAL TYPE |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-20150 |
RT132,TT132..LB..(ARL,EUR) MOTOR TYPE |
1 | ||
| 86300-20160 |
TT132..LB..EUR MANUAL TYPE |
1 | ||
| 86301 - POLE SUB-ASSY, ANTENNA | ||||
| 86301-20150 |
TT132..LB..EUR MOTOR TYPE |
1 | ||
| Common parts | ||||
| 82711-20200 | ||||
| 90105-06005 | ||||
| 90159-40198 | ||||
| 90168-35001 | ||||
| 90168-40035 | ||||
| 90446-09008 | ||||
| 90463-04018 | ||||
| 90464-00180 | ||||
| 90464-09008 | ||||
| 90480-01136 | ||||
| 90480-36009 | ||||
| 93510-64020 | ||||
