TT132L-TLKDSW (1978)

Toyota Corona

Production Sep 1978 - Aug 1981
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )LB

Click highlighted areas on diagram

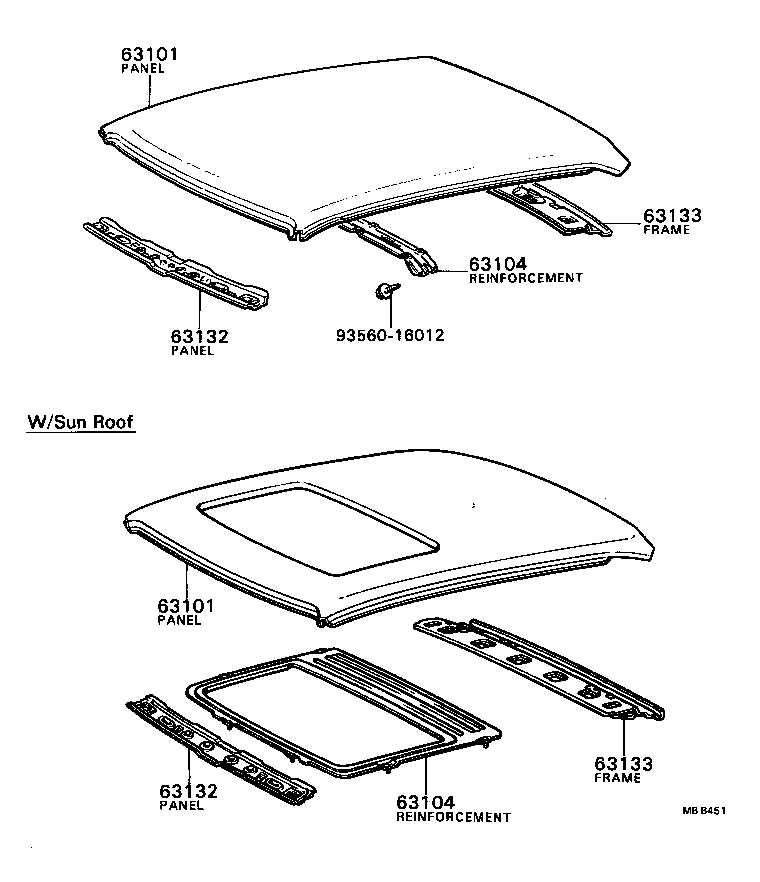

diagram 63101 63101 63104 63104 63132 63132 63133 63133 9356016012
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-20100

RT132,133,TT132..LB

 1
63101 - PANEL SUB-ASSY, ROOF
63111-20100

RT132,133,TT132..LB

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-20020

RT132,133,TT132..LB

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-20020

RT132,133,TT132..LB

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-20030

RT132,133,TT132..LB

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-20030

RT132,133,TT132..LB

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63105-20020

RT132,133,TT132..LB

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63105-20020

RT132,133,TT132..LB

 1
Common parts
93560-16012
