TT132L-TLHDSW (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

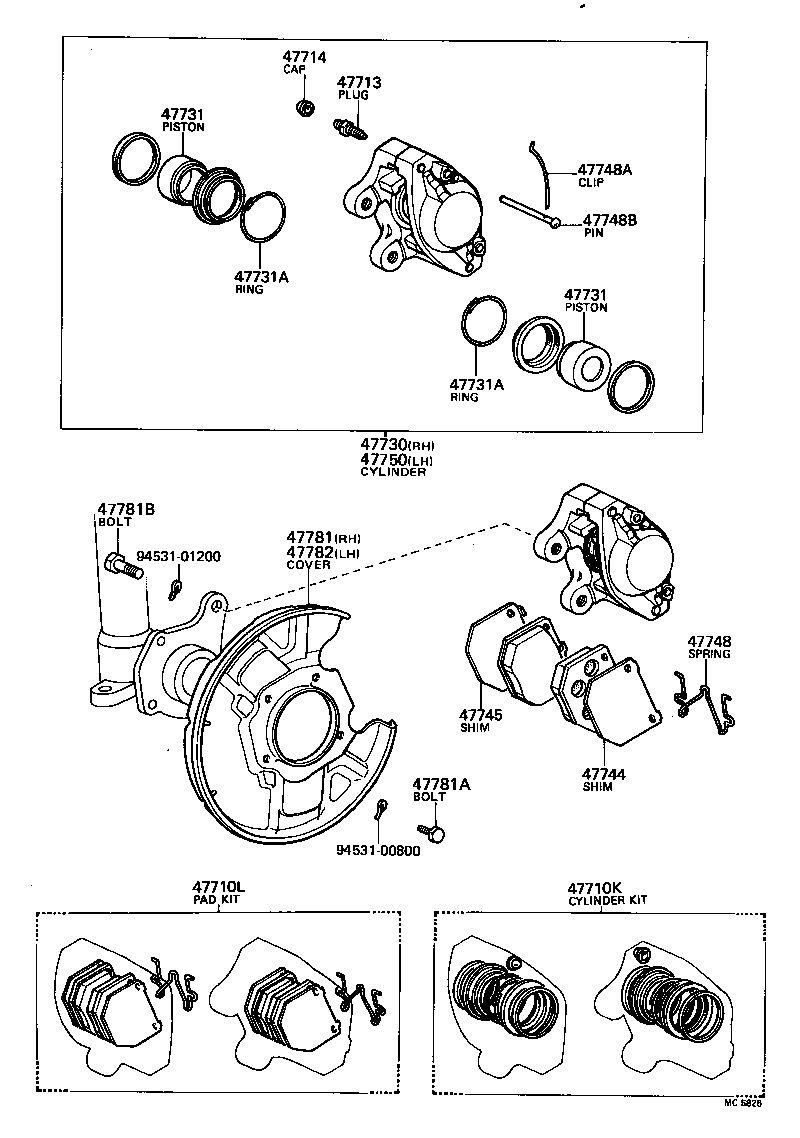

ILLUST NO. 1 OF 2(7809-8108)RT132,TT132..ARL,EUR ; (8108-8112)RT133 ; (8202- )XT130
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-30021 |
RT132,TT132..ARL,EUR |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-22070 |
RT132,TT132..ARL,EUR |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20030 |
RT132,TT132..ARL,EUR |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
RT13#,TT13# |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20060 |
RT132,TT132..ARL,EUR |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20040 |
RT132,TT132..ARL,EUR |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20040 |
RT132,TT132..ARL,EUR |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-58026 |
RT132,TT132..ARL,EUR |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-58026 |
RT132,TT132..ARL,EUR |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-30012 |
RT132,TT132..ARL,EUR |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-30012 |
RT132,TT132..ARL,EUR |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-30013 |
RT132,TT132..ARL,EUR |
2 | ||
| 47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90468-12002 |
RT132,TT132..ARL,EUR |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06098 |
RT132,TT132..ARL,EUR |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20050 |
RT132,TT132..ARL,EUR |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-20080 |
RT132,TT132..ARL,EUR |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-08341 |
RT133..GL;RT130,132,TT13# |
4 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 90101-12379 |
RT132,TT132..ARL,EUR |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-20080 |
RT132,TT132..ARL,EUR |
1 | ||
| Common parts | ||||
| 94531-00800 | ||||
| 94531-01200 | ||||
ILLUST NO. 2 OF 2(7809- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-22170 |
RT132,TT132..ARL,EUR |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-30100 |
RT132,TT132..ARL,EUR |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-60060 |
RT132,TT132..ARL,EUR |
1 | ||
