TT132L-TLHDS (1980)
Toyota Corona
Production
Aug 1980
-
Dec 1981
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8112)LB

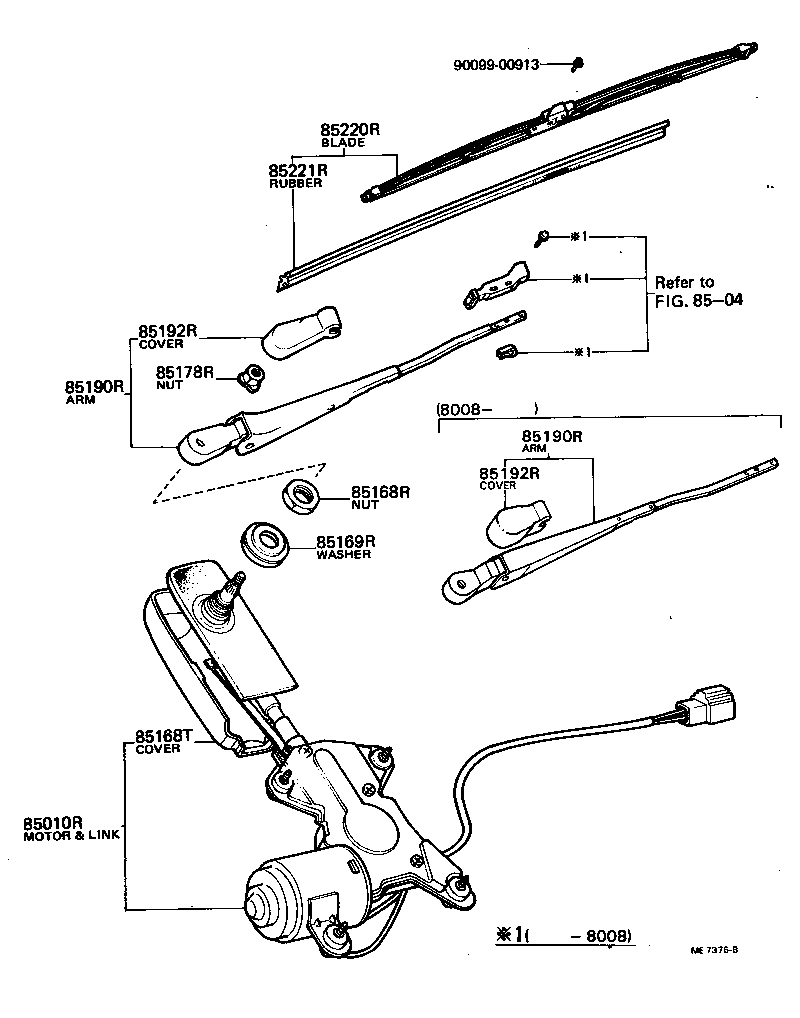

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85010R - MOTOR & LINK ASSY, RR WIPER | ||||
| 85010-20120 |
RT132,TT132..LB |
1 | ||
| 85010-20121 |
RT132,133,TT132..LB |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85186-20120 |
RT132,133,TT132..LB |
1 | ||
| 85168T - COVER, WIPER LINK | ||||
| 85168-20120 |
RT132,133,TT132..LB |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-12180 |
RT132,133,TT132..LB |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-08026 |
RT132,TT132..LB |
1 | ||
| 90179-06158 |
RT132,133,TT132..LB |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-20250 |
RT132,TT132..LB |
1 | ||
| 85190-20251 |
RT132,133,TT132..LB |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-20250 |
RT132,TT132..LB |
1 | ||
| 85190-20251 |
RT132,133,TT132..LB |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-20030 |
RT132,TT132..LB |
1 | ||
| 85192-14020 |
RT132,133,TT132..LB |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-20030 |
RT132,TT132..LB |
1 | ||
| 85192-14020 |
RT132,133,TT132..LB |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-20220 |
RT132,133,TT132..LB |
1 | ||
| 85220-20100 |
RT132,TT132..LB |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-20090 |
RT132,133,TT132..LB |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| Linked diagrams | ||||
| 8504 | ||||
