TT132L-TLHDS (1980)
Toyota Corona

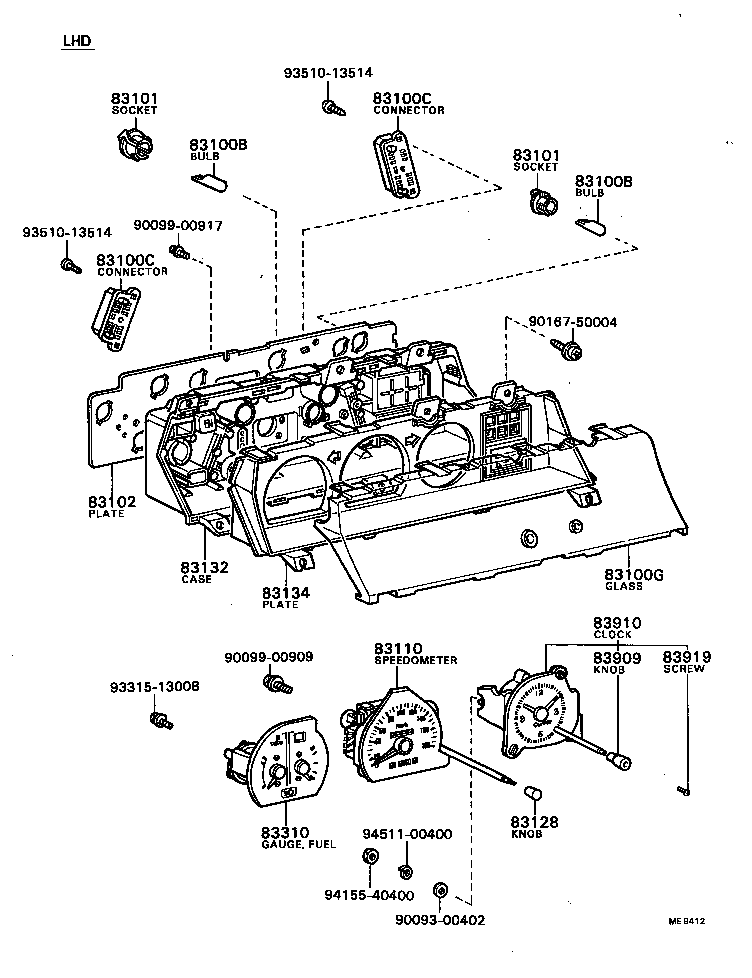

(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83138-2B350 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/CLOCK & TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20150 |
RT13#,TT13#..LHD |
1 | ||
| 83247-20310 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-20450 |
TT132..LHD..3FC KM |
1 | ||
| 83110-20460 |
TT132..LHD..3FC MILE & KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83132-2B350 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83133-20090 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/CLOCK & TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20080 |
RT13#,TT13#..LHD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-20030 |
RT13#,TT13# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20050 |
RT13#,TT132..LHD |
1 | ||
| 83243-20170 |
RT132,TT13#..LHD..GEN W/TENP,MIDDLEEAST COUNTRY SPEC |
1 | ||
| 83243-20210 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER & THERMOMETER |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
TT13#..LHD..(DLX,STD) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20170 |
RT13#,TT13#..DLX,STD |
1 | ||
| 83910-20190 |
XT130;RT13#,TT132..DLX..GEN W/QUARTZ |
1 | ||
| 83910-20290 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
TT13#..LHD..(DLX,STD) |
1 | ||
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20240 | ||||
| 83161-20260 | ||||
| 83161-20380 | ||||
| 83161-20420 | ||||
| 83165-20020 | ||||
| 90167-50004 | ||||
| 93540-14012 | ||||
| 94115-40400 | ||||

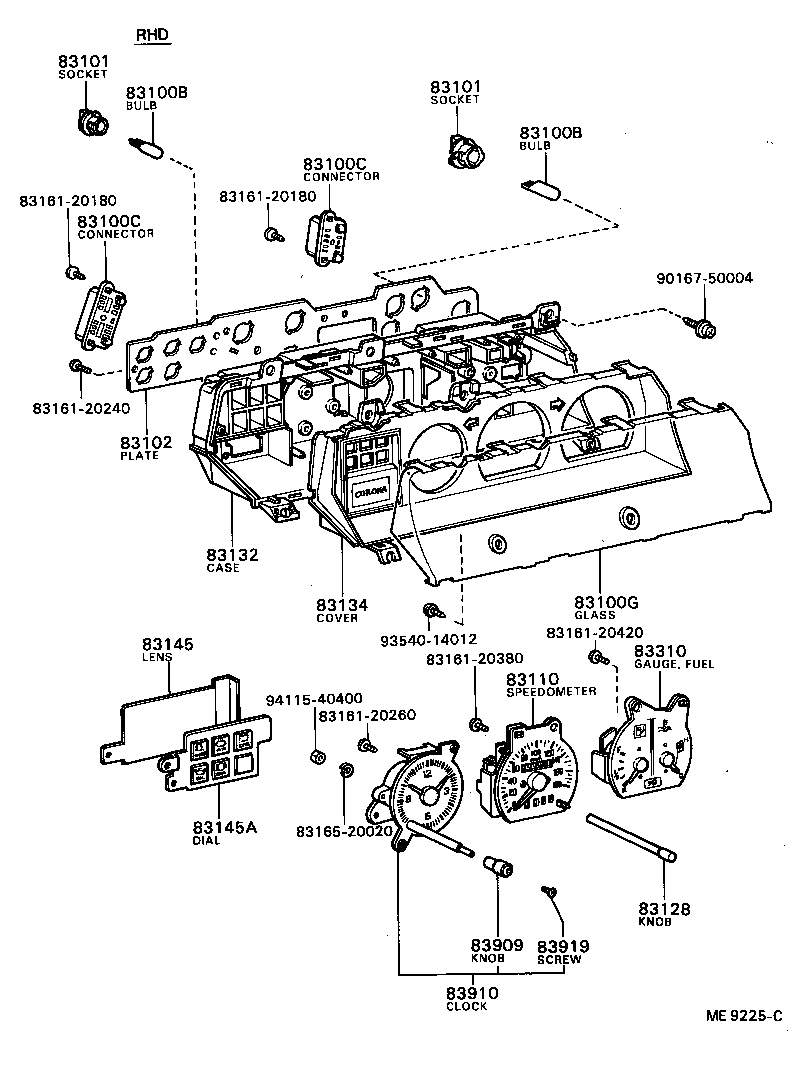

(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83138-2B350 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/CLOCK & TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20150 |
RT13#,TT13#..LHD |
1 | ||
| 83247-20310 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-20450 |
TT132..LHD..3FC KM |
1 | ||
| 83110-20460 |
TT132..LHD..3FC MILE & KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83132-2B350 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83133-20090 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/CLOCK & TACHOMETER |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-20080 |
RT13#,TT13#..LHD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-20030 |
RT13#,TT13# |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20090 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20050 |
RT13#,TT132..LHD |
1 | ||
| 83243-20170 |
RT132,TT13#..LHD..GEN W/TENP,MIDDLEEAST COUNTRY SPEC |
1 | ||
| 83243-20210 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER & THERMOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-20090 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) |
1 | ||
| 83630 - VOLTMETER ASSY | ||||
| 83251-20010 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
TT13#..LHD..(DLX,STD) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20170 |
RT13#,TT13#..DLX,STD |
1 | ||
| 83910-20190 |
XT130;RT13#,TT132..DLX..GEN W/QUARTZ |
1 | ||
| 83910-20290 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
TT13#..LHD..(DLX,STD) |
1 | ||
| Common parts | ||||
| 83161-20180 | ||||
| 83161-20240 | ||||
| 83161-20300 | ||||
| 83161-20320 | ||||
| 83161-20380 | ||||
| 83161-20420 | ||||
| 83161-20440 | ||||
| 90167-50004 | ||||
| 93540-14012 | ||||

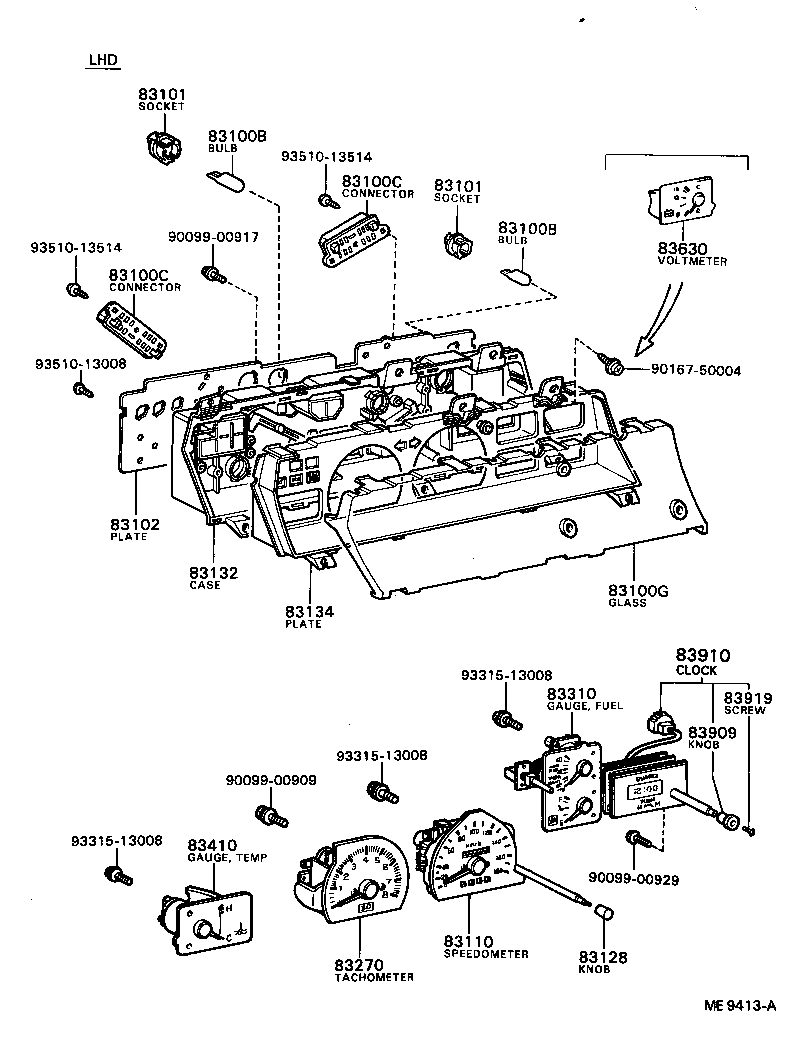

(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83138-2B350 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/CLOCK & TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20150 |
RT13#,TT13#..LHD |
1 | ||
| 83247-20310 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-20450 |
TT132..LHD..3FC KM |
1 | ||
| 83110-20460 |
TT132..LHD..3FC MILE & KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83132-2B350 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83133-20090 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/CLOCK & TACHOMETER |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20050 |
RT13#,TT132..LHD |
1 | ||
| 83243-20170 |
RT132,TT13#..LHD..GEN W/TENP,MIDDLEEAST COUNTRY SPEC |
1 | ||
| 83243-20210 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER & THERMOMETER |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
TT13#..LHD..(DLX,STD) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20170 |
RT13#,TT13#..DLX,STD |
1 | ||
| 83910-20190 |
XT130;RT13#,TT132..DLX..GEN W/QUARTZ |
1 | ||
| 83910-20290 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
TT13#..LHD..(DLX,STD) |
1 | ||
| Common parts | ||||
| 90093-00402 | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90167-50004 | ||||
| 93315-13008 | ||||
| 93510-13514 | ||||
| 94155-40400 | ||||
| 94511-00400 | ||||

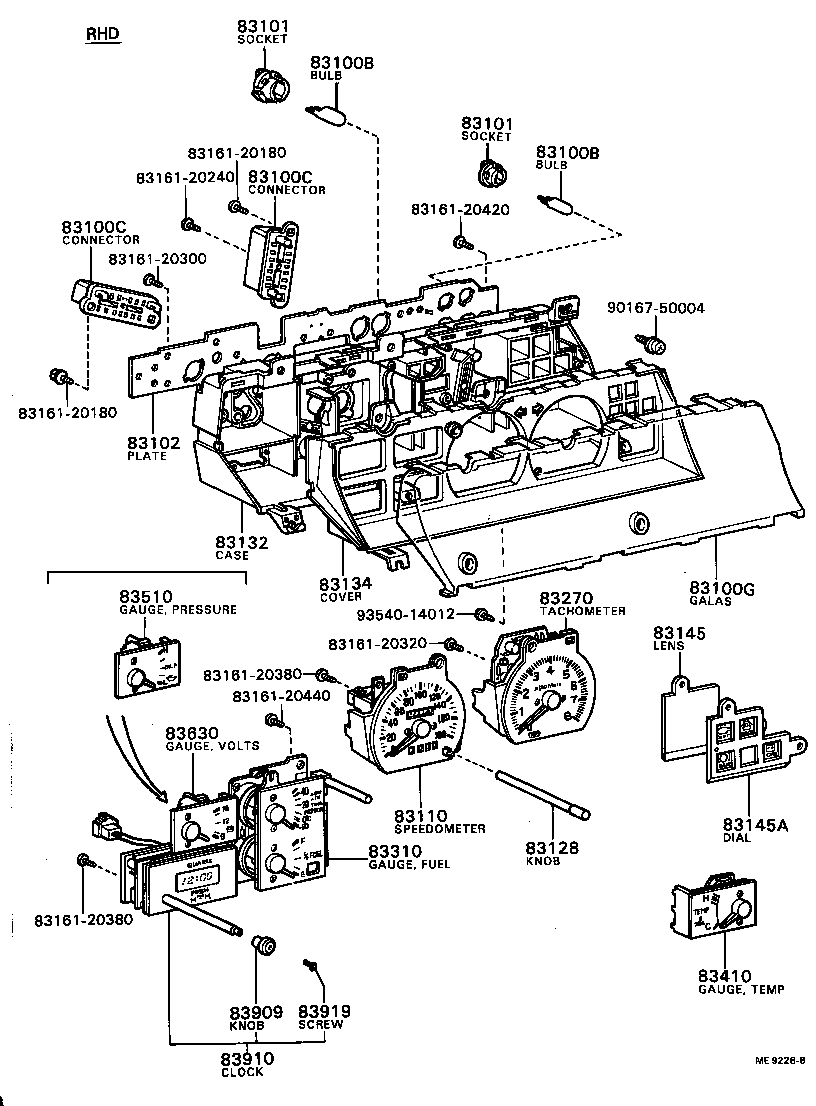

(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
RT133..GL;RT130,132,TT13# 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
RT133..GL;RT130,132,TT13# 12V 3.4W,12V 3.4W |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83138-2B350 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/CLOCK & TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RT133..GL;RT130,132,TT13# 12V 3.4W |
9 | ||
| 83101-22010 |
RT13#,TT13# 12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-20150 |
RT13#,TT13#..LHD |
1 | ||
| 83247-20310 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-20450 |
TT132..LHD..3FC KM |
1 | ||
| 83110-20460 |
TT132..LHD..3FC MILE & KM |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83132-2B350 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-20870 |
RT13#,TT13#..LHD |
1 | ||
| 83133-20090 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/CLOCK & TACHOMETER |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20090 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-20050 |
RT13#,TT132..LHD |
1 | ||
| 83243-20170 |
RT132,TT13#..LHD..GEN W/TENP,MIDDLEEAST COUNTRY SPEC |
1 | ||
| 83243-20210 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER & THERMOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-20090 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) |
1 | ||
| 83630 - VOLTMETER ASSY | ||||
| 83251-20010 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
TT13#..LHD..(DLX,STD) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20170 |
RT13#,TT13#..DLX,STD |
1 | ||
| 83910-20190 |
XT130;RT13#,TT132..DLX..GEN W/QUARTZ |
1 | ||
| 83910-20290 |
RT130,TT13#..LHD..DLX..LNK..(GEN,PHL) W/TACHOMETER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
TT13#..LHD..(DLX,STD) |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90167-50004 | ||||
| 93315-13008 | ||||
| 93510-13008 | ||||
| 93510-13514 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
