TT132L-TLHDS (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8112)DLX..LNK..GEN,PHL

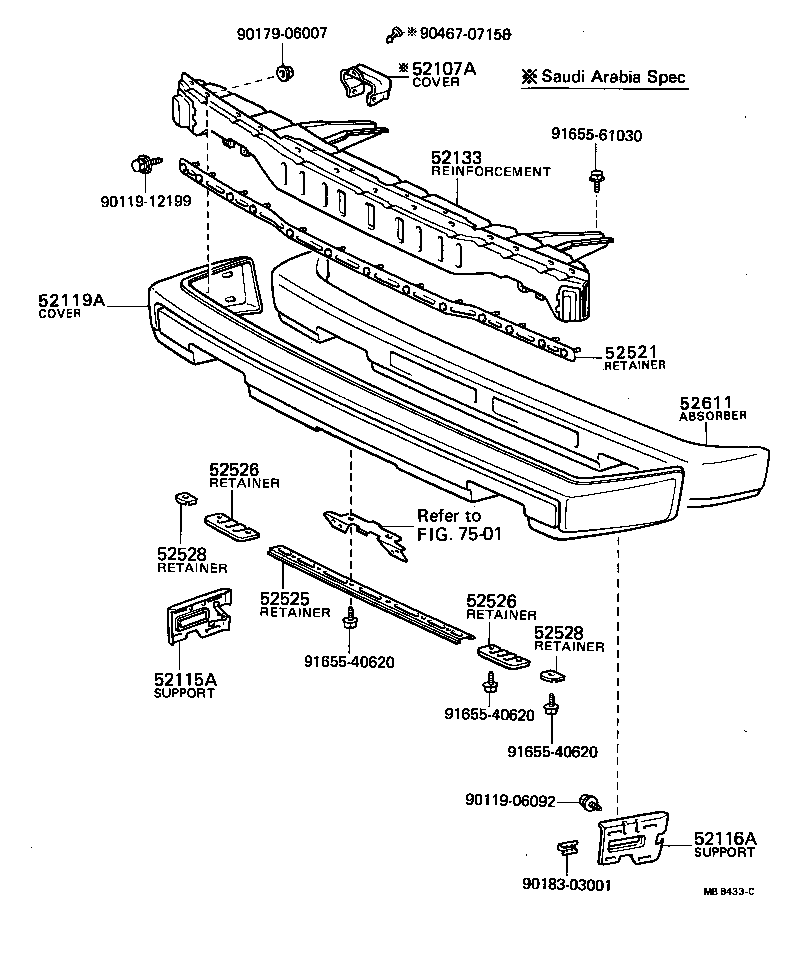

Click highlighted areas on diagram

diagram 52107A 52115A 52116A 52119A 52133 52521 52525 52526 52526 52528 52528 52611 7501 9011906092 9011912199 9017906007 9018303001 9046707158 9165540620 9165540620 9165540620 9165561030
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52061-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52062-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52119A - COVER, FRONT BUMPER
52119-20031

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52133 - REINFORCEMENT, FRONT BUMPER
52021-20031

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-20011

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-20011

RT130,TT13#..DLX..LNK..(GEN,PHL)

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-20011

RT130,TT13#..DLX..LNK..(GEN,PHL)

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 2
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-20010

RT130,TT13#..DLX..LNK..(GEN,PHL)

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20011

RT130,TT13#..DLX..LNK..(GEN,PHL)

 1
Common parts
90119-06092
90119-12199
90179-06007
90183-03001
90467-07158
91655-40620
91655-61030
Linked diagrams
7501

(8008- )RT13#,TT13#

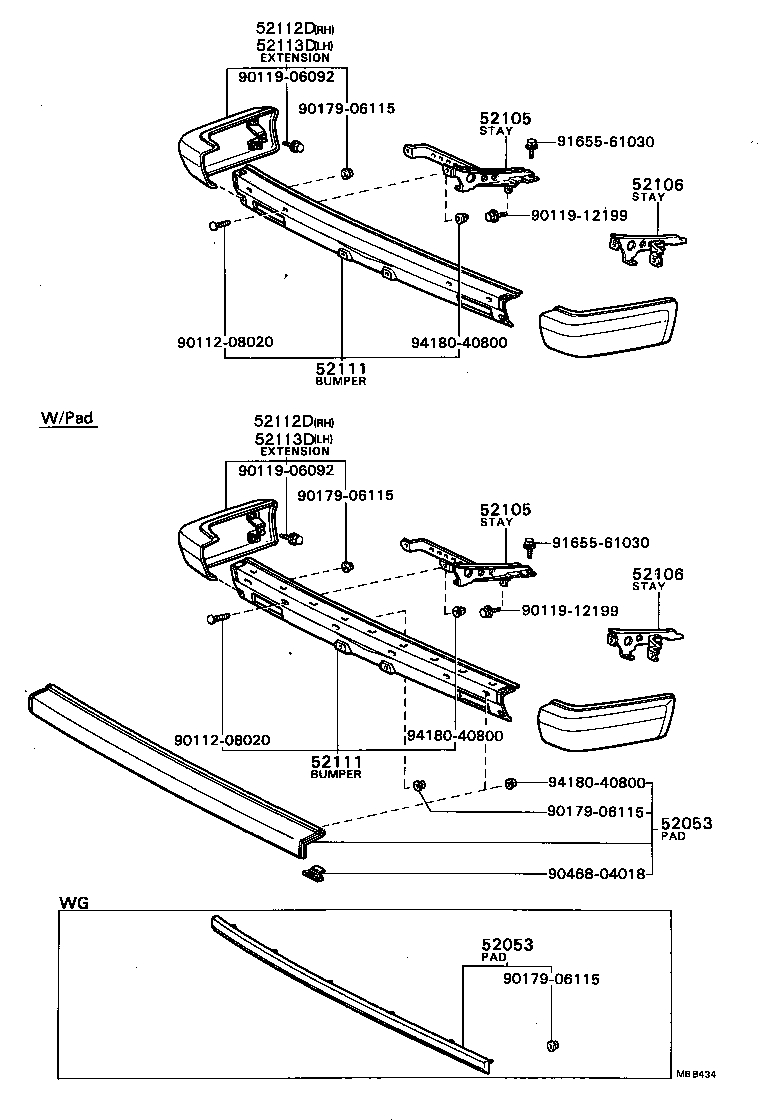

Click highlighted areas on diagram

diagram 52053 52053 52105 52105 52106 52106 52111 52111 52112D 52112D 52113D 52113D 9011208020 9011208020 9011906092 9011906092 9011912199 9011912199 9017906115 9017906115 9017906115 9017906115 9046804018 9165561030 9165561030 9418040800 9418040800 9418040800
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-29045

RT13#,TT13#,XT130..ARL,EUR,GEN

 1
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-29045

RT13#,TT13#,XT130..ARL,EUR,GEN

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-20060

RT13#,TT13#,XT130

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-20060

RT13#,TT13#,XT130

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-20040

RT13#,TT13#,XT130

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-20040

RT13#,TT13#,XT130

 1
52111 - BUMPER ASSY, FRONT
52111-29355

RT13#,TT13#,XT130..DLX,STD

 1
52111-29365

RT13#,TT13#,XT130..ARL,EUR,GEN

W/PAD

 1
52111 - BUMPER ASSY, FRONT
52111-29355

RT13#,TT13#,XT130..DLX,STD

 1
52111-29365

RT13#,TT13#,XT130..ARL,EUR,GEN

W/PAD

 1
Common parts
90112-08020
90119-06092
90119-12199
90179-06115
90468-04018
91655-61030
94180-40800
