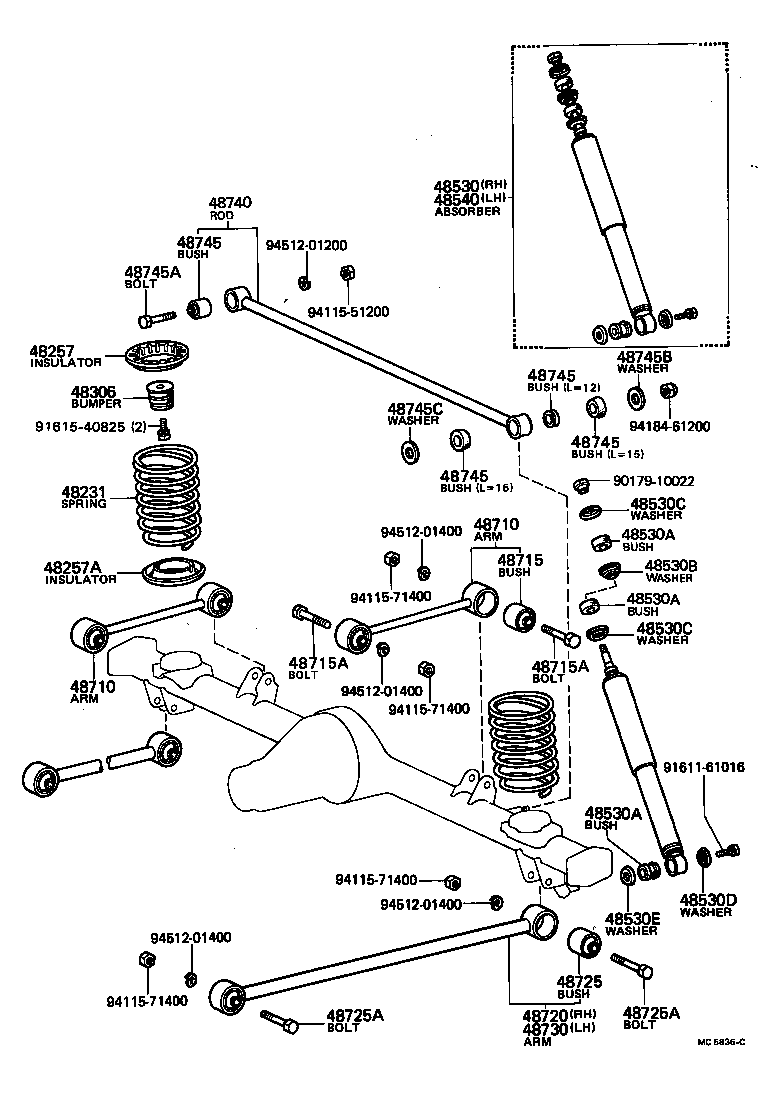

TT132L-TLHDS (1980)
Toyota Corona
(7809-8011)LNK ; (8011-8112)RT130,TT13#..LNK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-20070 |
TT132..LB..GEN |
2 | ||
| 48231-20020 |
RT132,TT132..LB..GEN |
2 | ||
| 48257 - INSULATOR, REAR COIL SPRING | ||||
| 48257-14020 |
RT13#,TT13#..LNK |
2 | ||
| 48257A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-14030 |
RT13#,TT13#..LNK |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-14030 |
RT13#,TT13#..LNK |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29515 |
TT13#..LNK..GEN |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10004 |
RT13#,TT132 UPR,OD=30,ID=10 |
2 | ||
| 90385-16060 |
RT13#,TT13#,XT130 LWR |
2 | ||
| 90540-10005 |
RT13#,TT13#,XT130 UPR,OD=30,ID=10&14 |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10004 |
RT13#,TT132 UPR,OD=30,ID=10 |
2 | ||
| 90385-16060 |
RT13#,TT13#,XT130 LWR |
2 | ||
| 90540-10005 |
RT13#,TT13#,XT130 UPR,OD=30,ID=10&14 |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90540-10004 |
RT13#,TT132 UPR,OD=30,ID=10 |
2 | ||
| 90385-16060 |
RT13#,TT13#,XT130 LWR |
2 | ||
| 90540-10005 |
RT13#,TT13#,XT130 UPR,OD=30,ID=10&14 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02007 |
RT13#,TT13#,XT130 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
RT13#,TT13#,XT130 LWR,ID=10.5 |
4 | ||
| 90948-02045 |
RT13#,TT13#,XT130 UPR,ID=14 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02002 |
RT13#,TT13#,XT130 LWR,ID=10.5 |
4 | ||
| 90948-02045 |
RT13#,TT13#,XT130 UPR,ID=14 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
RT13#,TT13#,XT130 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
RT13#,TT13#,XT130 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29515 |
TT13#..LNK..GEN |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-14040 |
RT13#,TT132..LNK |
2 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-14040 |
RT13#,TT132..LNK |
2 | ||
| 48715 - BUSH, UPPER CONTROL ARM | ||||
| 48702-22060 |
RT13#,TT132..LNK |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90101-14007 |
RT13#,TT13#,XT130..LNK *14-1.5PX76-21 |
2 | ||
| 90105-14006 |
TT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK *14-1.5PX77-28 |
2 | ||
| 90101-14002 |
RT13#,TT13#,XT130..LNK *14-1.5PX141-23 |
2 | ||
| 90105-14009 |
TT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK *14-1.5PX141-25 |
2 | ||
| 48715A - BOLT, HEXAGON(FOR UPPER CONTROL ARM) | ||||
| 90101-14007 |
RT13#,TT13#,XT130..LNK *14-1.5PX76-21 |
2 | ||
| 90105-14006 |
TT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK *14-1.5PX77-28 |
2 | ||
| 90101-14002 |
RT13#,TT13#,XT130..LNK *14-1.5PX141-23 |
2 | ||
| 90105-14009 |
TT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK *14-1.5PX141-25 |
2 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-14040 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 48725 - BUSH, LOWER CONTROL ARM | ||||
| 48702-14020 |
RT13#,TT13#,XT130..LNK |
2 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90105-14006 |
TT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK *14-1.5PX77-28 |
4 | ||
| 90101-14007 |
RT13#,TT13#,XT130..LNK *14-1.5PX76-21 |
4 | ||
| 48725A - BOLT(FOR LOWER CONTROL ARM) | ||||
| 90105-14006 |
TT133..LNK;RT13#..DLX,GL;TT132..RHD..LNK;TT132..(HT,LB)..LHD..5F;TT132..LHD..(3FC,4F)..LNK *14-1.5PX77-28 |
4 | ||
| 90101-14007 |
RT13#,TT13#,XT130..LNK *14-1.5PX76-21 |
4 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-14040 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-20030 |
TT13#..LNK;RT13#..DLX,GL |
1 | ||
| 48740-14050 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
RT130,132,TT13#,XT130..LNK HOUSING SIDE,L=15 |
2 | ||
| 48706-14010 |
RT130,132,TT13#,XT130..LNK BODY SIDE |
1 | ||
| 90386-20001 |
RT130,132,TT13#,XT130..LNK HOUSING SIDE,L=12 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
RT130,132,TT13#,XT130..LNK HOUSING SIDE,L=15 |
2 | ||
| 48706-14010 |
RT130,132,TT13#,XT130..LNK BODY SIDE |
1 | ||
| 90386-20001 |
RT130,132,TT13#,XT130..LNK HOUSING SIDE,L=12 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
RT130,132,TT13#,XT130..LNK HOUSING SIDE,L=15 |
2 | ||
| 48706-14010 |
RT130,132,TT13#,XT130..LNK BODY SIDE |
1 | ||
| 90386-20001 |
RT130,132,TT13#,XT130..LNK HOUSING SIDE,L=12 |
1 | ||
| 48745 - BUSH, LATERAL CONTROL ROD | ||||
| 90385-20001 |
RT130,132,TT13#,XT130..LNK HOUSING SIDE,L=15 |
2 | ||
| 48706-14010 |
RT130,132,TT13#,XT130..LNK BODY SIDE |
1 | ||
| 90386-20001 |
RT130,132,TT13#,XT130..LNK HOUSING SIDE,L=12 |
1 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90101-12032 |
RT13#,TT13#,XT130..LNK *12-1.25PX65-25 |
1 | ||
| 90106-12002 |
TT13#..LNK;RT13#..DLX,GL |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12010 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 94612-12000 |
RT13#,TT13#,XT130..LNK |
1 | ||
| 94612-12000 |
RT133..GL;RT130,132,TT13# |
1 | ||
| Common parts | ||||
| 90179-10022 | ||||
| 91611-61016 | ||||
| 91615-40825 | ||||
| 94115-51200 | ||||
| 94115-71400 | ||||
| 94184-61200 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
