TT132L-TLHDS (1980)

Toyota Corona

Production Aug 1980 - Dec 1981
Engine 3T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8205)2T,3T

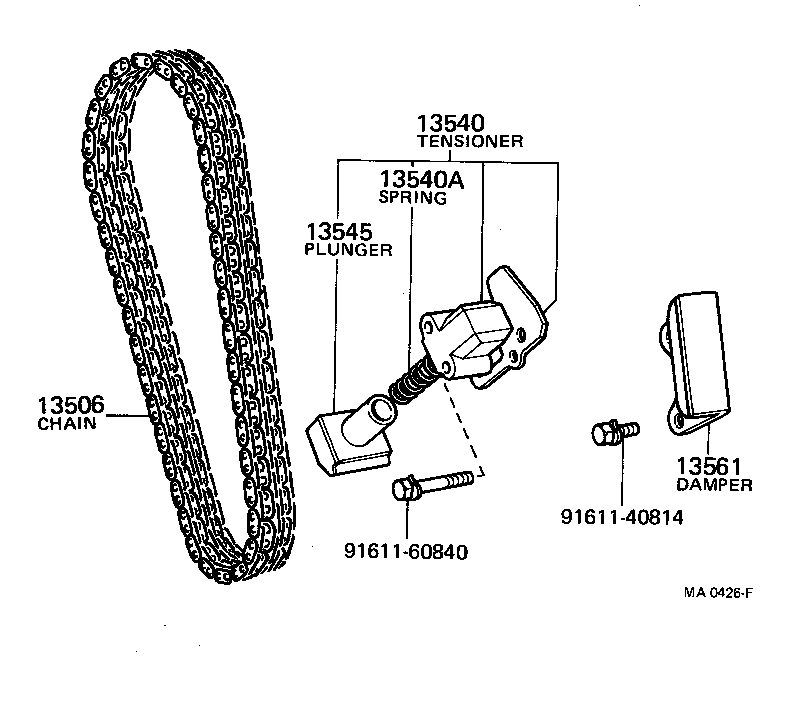

Click highlighted areas on diagram

diagram 13506 13540 13540A 13545 13561 9161140814 9161160840
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-25010

2T,3T..TT13#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-25010

2T,3T..TT13#

 1
13540A - SPRING, COMPRESSION(FOR CHAIN TENSIONER)
90501-10595

2T,3T..TT13#

 1
13545 - PLUNGER, CHAIN TENSIONER
13545-25010

2T,3T..TT13#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-25010

2T,3T..TT13#

 1
Common parts
91611-40814
91611-60840
