TT132L-TLHDS (1980)
Toyota Corona
Production
Aug 1980
-
Dec 1981
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8112)2T,3T

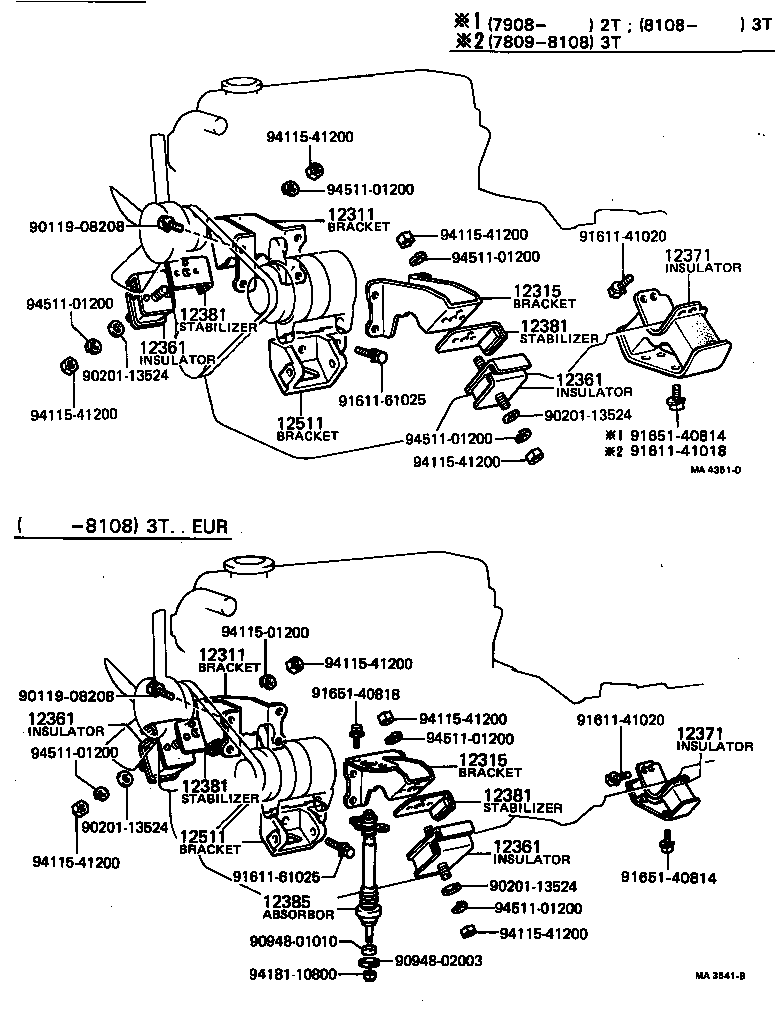

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-25050 |
2T,3T..TT13# |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-25050 |
2T,3T..TT13# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12312-25040 |
2T,3T..TT13#..GEN |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12312-25040 |
2T,3T..TT13#..GEN |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-26040 |
3T..TT132 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-26040 |
3T..TT132 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-26040 |
3T..TT132 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-26040 |
3T..TT132 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
3T..TT132 |
1 | ||
| 12371-34030 |
3T..TT132..3FC |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
3T..TT132 |
1 | ||
| 12371-34030 |
3T..TT132..3FC |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-26010 |
3T..TT132 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-26010 |
3T..TT132 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-26010 |
3T..TT132 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-26010 |
3T..TT132 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-25010 |
2T,3T..TT13# |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-25010 |
2T,3T..TT13# |
1 | ||
| Common parts | ||||
| 90119-08208 | ||||
| 90201-13524 | ||||
| 90948-01010 | ||||
| 90948-02003 | ||||
| 91611-41018 | ||||
| 91611-41020 | ||||
| 91611-61025 | ||||
| 91651-40814 | ||||
| 91651-40818 | ||||
| 94115-01200 | ||||
| 94115-41200 | ||||
| 94181-10800 | ||||
| 94511-01200 | ||||
